Schneider Electric GV2L07

B000WKXMBM

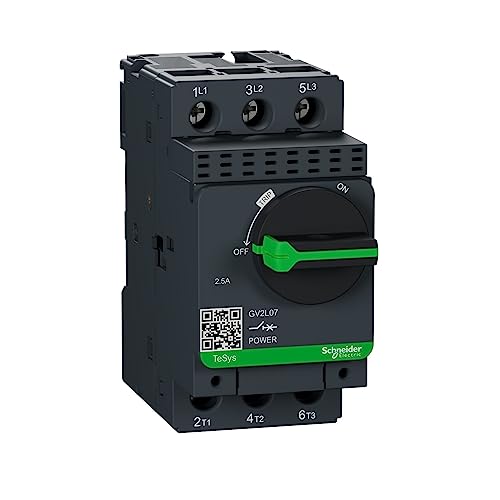

Schneider Electric GV2-L07 Motor Protection Circuit Breaker New NMP

Schneider Electric GV2-L07 Motor Protection Circuit Breaker New NMPzoom

Attributes

Key Value
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.2.5 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Applicationmotor protection
BrandSCHNEIDER ELECTRIC
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2L07
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ConnectionSCREW CLAMP TERMINALS 2.
Control Typerotary handle
Country of OriginFrance
Depth97 mm
Device Applicationmotor protection
Device Short NameGV2L
Electrical connectionscrew terminals
Electrical Durability100000 cycles AC-3 415 .
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
GTIN03389110213249
Height89 mm
Ik Degree Of ProtectionIK04
Ip Degree Of ProtectionIP20 IEC 60529
IP ratingIP20
Item TypeMotor circuit breaker;G.
Line Rated Current2.5 A
Made in USANo
Magnetic Tripping Curre.33.5-33.5 A
ManufacturerSCHNEIDER ELECTRIC
Max motor power0.75kW
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Mercury FreeYes
Motor Power Kw0.75-0.75 kW 400/415 V .
MountingScrew, for DIN rail mou.
Net Weight0.33 kg
Network Frequency50/60 Hz IEC 60947-2
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
Operating temperature-20...60?C
Operating voltage230...690V AC
Poles Description3P
Power Dissipation Per P.1.8 W
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Range of overcurrent re.2.5A
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Related itemsLRD07
Rohs Exemption Informat.Yes
SeriesTeSys Deca Series
Short circuit release33.5A
Size3.82
Special FeaturesIK04
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Sub BrandTeSys GV2;TeSys Deca
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologymagnetic
Type of protectionmotor breaker
UPC785901218074
UPC Code785901218074
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V AC 50/60 Hz IEC 6.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEGV2L0769.1315SCHNEIDER ELECTRIC69.13 @ 1
RS Delivers608-8292112.39213Schneider Electric112.392 @ 1
standardelectricsupply.com2168758179.21In StockSchneider Electric179.2 @ 1
thumbzoomgordonelectricsupply.comGV2L07181.091In Stock10SQUARE D181.09 @ 1
thumbzoommayerelectric.comSQDGV2L07197.511In StockSQUARE D0.726197.51 @ 1
thumbzoomNewark79C7944245.1215SCHNEIDER ELECTRIC245.12 @ 1
us.rs-online.com70379126252.41In StockSchneider Electric252.4 @ 1
thumbzoomcrescentelectric.com646011297.321In StockSchneider Electric297.32 @ 1
