Schneider Electric GV2L10

B00CONDEUE

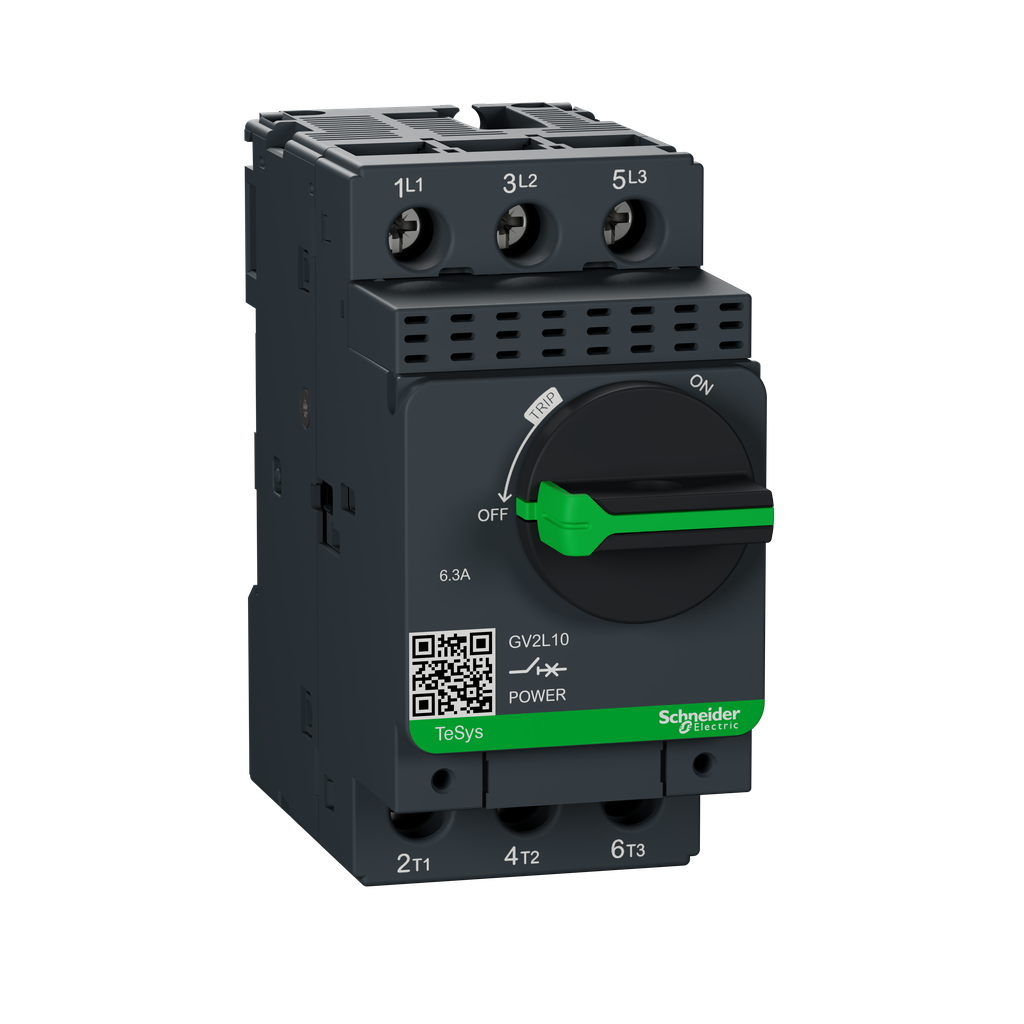

SCHNEIDER ELECTRIC 600-VAC GV2L10 Manual Switch 600VAC 6.3AMP IEC

SCHNEIDER ELECTRIC 600-VAC GV2L10 Manual Switch 600VAC 6.3AMP IECzoom

Attributes

Key Value
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.6.3 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Applicationmotor protection
BrandSchneider Electric
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2L10
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ConnectionSCREW CLAMP TERMINALS 2.
Control Typerotary handle
Country of OriginFR - France, France
Depth97 mm
Device Applicationmotor protection
Device Short NameGV2L
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
Height89 mm
Ik Degree Of ProtectionIK04
Ip Degree Of ProtectionIP20 IEC 60529
Item TypeMotor circuit breaker;G.
Line Rated Current6.3 A
Made in USANo
Magnetic Tripping Curre.78-78 A
ManufacturerSchneider Electric
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Mercury FreeYes
Motor Power Kw2.2-2.2 kW 400/415 V AC.
MountingScrew
Net Weight0.33 kg
Network Frequency50/60 Hz IEC 60947-2
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
Poles Description3P
Power Dissipation Per P.1.8 W
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesTeSys Deca Series
Size3.82
Special FeaturesIK04
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Sub BrandTeSys GV2;TeSys Deca
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologymagnetic
UNSPSC39121521
UPC785901076841
UPC Code785901076841
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V AC 50/60 Hz IEC 6.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEGV2L1058.23113SCHNEIDER ELECTRIC58.23 @ 1
RS Delivers608-8315115.8117Schneider Electric115.8 @ 1
thumbzoomkempstoncontrols.co.ukGV2L10118.87486651In StockSchneider118.8748665 @ 1
standardelectricsupply.com2296114179.21In StockSchneider Electric179.2 @ 1
Graybar98294540181.6081In StockSquare D (Schneider Electric)181.608 @ 1
thumbzoommostelectric.comGV2L10195.2412SQUARE D/TELEMECANIQUE195.24 @ 1
thumbzoommayerelectric.comSQDGV2L10197.511In StockSQUARE D0.726197.51 @ 1
us.rs-online.com70379128227.161In StockSchneider Electric227.16 @ 1
thumbzoomNewark15B8781245.1214SCHNEIDER ELECTRIC245.12 @ 1
thumbzoomcrescentelectric.com569638297.3218Schneider Electric297.32 @ 1
