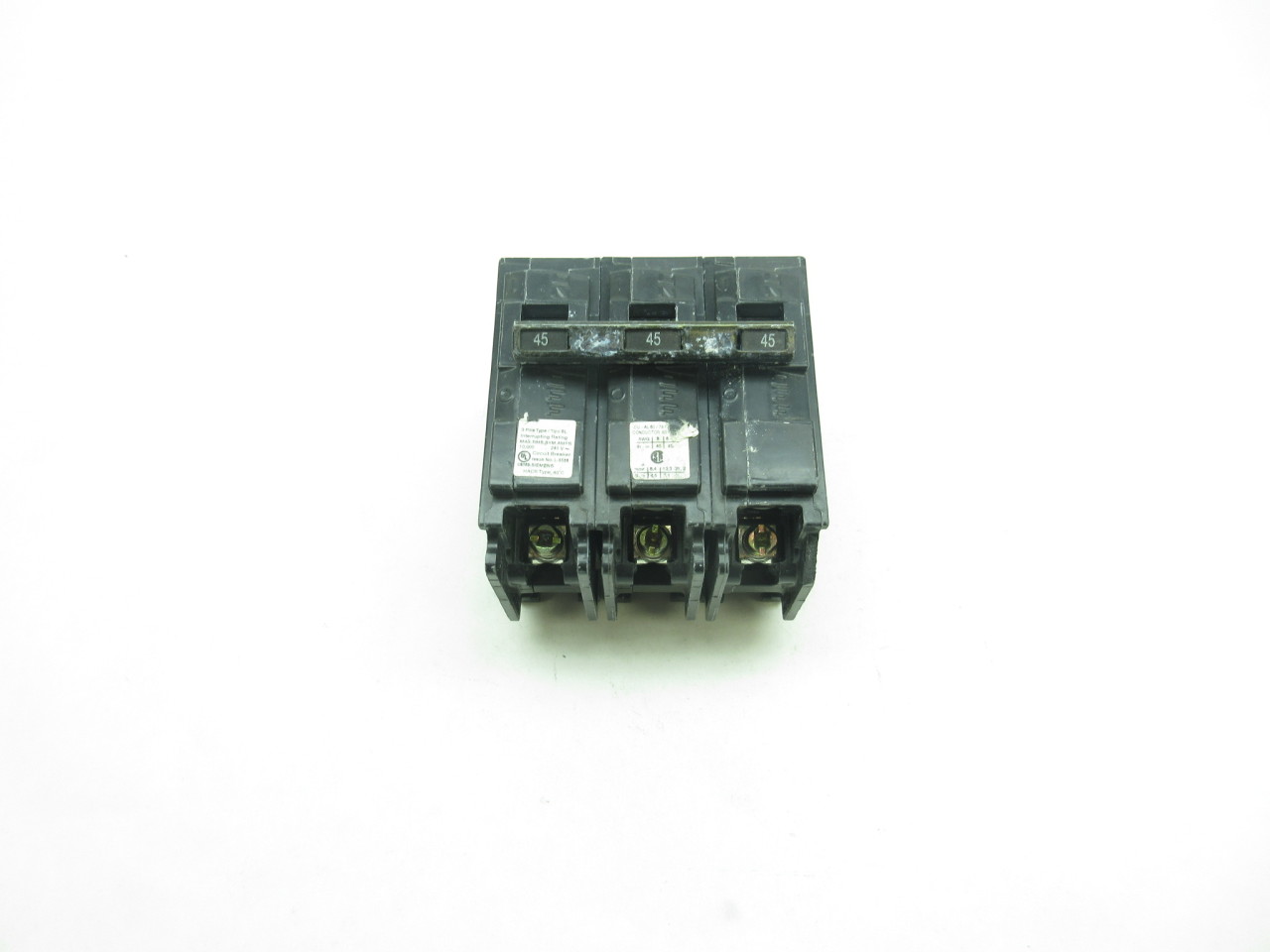

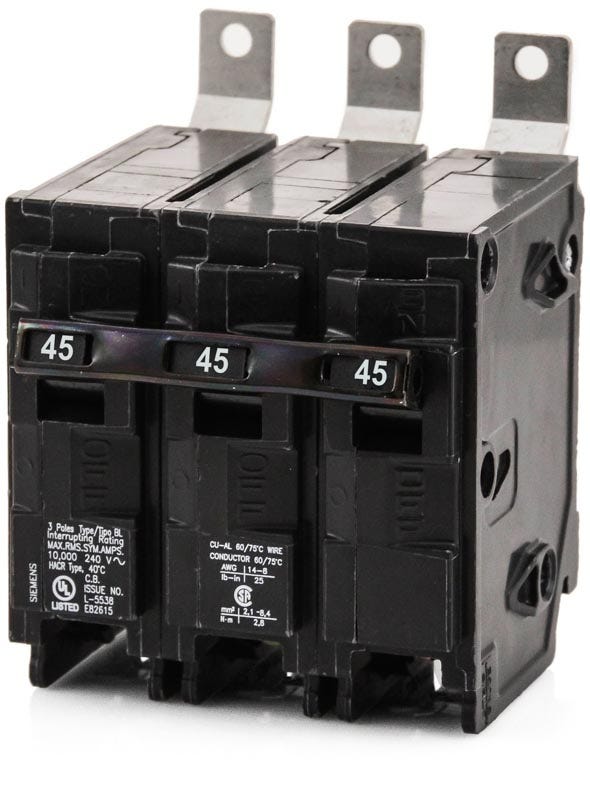

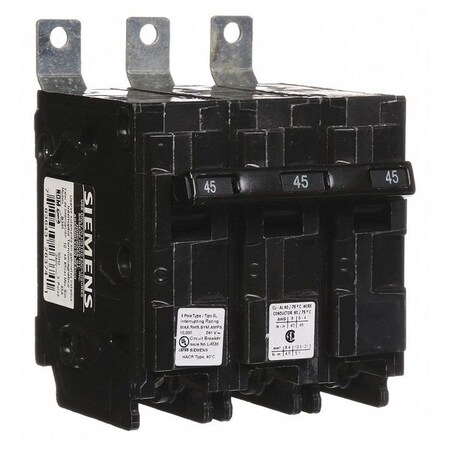

SIEMENS B345

B007ICSC58

ITE B345

ITE B345zoom

Attributes

Key Value
(3P) Three PolePole
1.5Width (in)
2.5Length (in)
240VACVoltage (V)
3.75Height (in)
45 AmpAmperage
45AAmp Rating
AC Voltage Rating240V AC
Amperage45A
Amps45 A
ApplicationElectrical Distribution
ApprovalUL Listed, CSA Certifie.
AWG 8 | 6-4Wire Gauge
B345Stock Code
BOLT-ONBreaker Style
BrandSiemens
Catalog NumberB345
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeStandard
Continuous current / ra.45 A
Country of OriginMX, Mexico
CSA, UL ListedUL Listed
Current Rating45 A
DC Voltage RatingNot Rated
Depth12.8 in
Depth [in]:3 in
Design of the overload .THERMAL-MAGNETIC
Design of the product:BL
DisplayB345 BREAKER 45A 3P 240.
Estimated Weight1.00
For Use WithSiemens P1 Panelboards
Frame Size125A/BL
GTIN00783643263741
Gtin783643263741
Height3.8 in
Height [in]:3.5625 in
ItemMiniature Circuit Break.
Length3.8 in
Length (Straight Wirewa.3.8 in
Made in USANo
ManufacturerSiemens Industry, Inc.,.
Max. AIR Rating10kA at 240V AC
Max. Wire Size4 AWG (Al), 6 AWG (Cu)
Min. Wire Size8 AWG
MountingBolt On
Mounting TypeBolt-On
MpnB345
Number of Poles3
Number Of Poles:3
OverloadThermal Magnetic
Part NumberB345
Phase3
Poles3
SeriesBL, BL Series
SiemensBrand
Size of the circuit-bre.BL(125A)
StandardULLISTED/CSA/NOMCERTIFI.
Standard:ULLISTED/CSA/NOMCERTIFI.
StandardsUL 489
Suitability for operati.ELECTRICALDISTRIBUTION
Supply voltage frequenc.TRUE
Terminal ConnectionLug
Type/Tipo BL BreakerFamily
UNSPSC39121601
Upc783643263741
UPC783643263741
Voltage240VAC
Voltage / between phase.240 V
Voltage Rating240 V
Width4.6 in
Width [in]:3 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD59823938.671In StockSIEMENS38.67 @ 1
thumbzoommostelectric.comB34577.911In StockSiemens77.91 @ 1
simplybreakers.comB34589.991In StockSiemens \/ ITE89.99 @ 1
steinerelectric.com93183107.61In StockSiemens107.6 @ 1
thumbzoomAllfusesB345108.64177Siemens108.64 @ 1
thumbzoomsuperbreakers.comB345117.61In StockSiemens117.6 @ 1
standardelectricsupply.com2212064158.261In StockSiemens158.26 @ 1
Dale-ElectricB345203.831In StockSiemens Industry, Inc.203.83 @ 1
thumbzoombulbspro.comB345300.711In StockSiemens300.71 @ 1
thumbzoomZoroG0815507316.991In StockSiemens0.96316.99 @ 1
thumbzoomsustainablesupply.comC1210886327.651In StockSiemens0.96327.65 @ 1
kirbyrisk.com559888373.571In StockSiemens373.57 @ 1
thumbzoommotorsandcontrol.comB345422.241In StockSiemens1.0422.24 @ 1
thumbzoomcrescentelectric.com149657608.231In StockSiemens608.23 @ 1
us.rs-online.com71554148646.221In StockSiemens646.22 @ 1
