Texas Instruments TPS76150DBVR

B005S3U04U

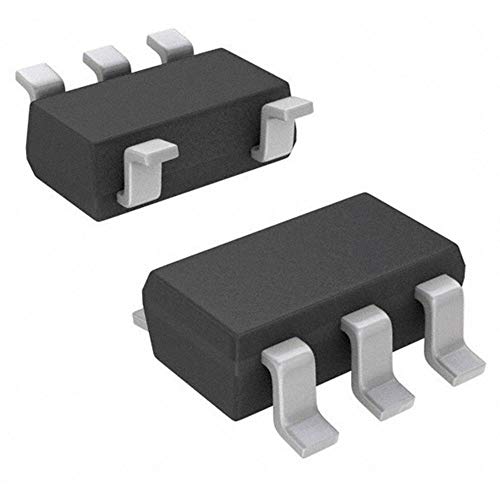

TEXAS INSTRUMENTS TPS76150DBVR IC, LDO VOLT REG, 5V, 0.1A, 5-SOT-23

TEXAS INSTRUMENTS TPS76150DBVR IC, LDO VOLT REG, 5V, 0.1A, 5-SOT-23zoom

Attributes

Key Value
Alternate Part No.595-TPS76150DBVR
Base Product NumberTPS76150
BrandTexas Instruments
CaseSOT23-5
CategoryIntegrated Circuits (IC.
Control FeaturesEnable
Current - Output100mA
Current - Quiescent (Iq)115 ?A
Current - Supply (Max)4 mA
Dropout Voltage - Max280 mV
Factory Pack Quantity3000
In-stock0
Input Bias Current (Max)0.09 mA
Input Bias Current - Max0.09 mA
Input Voltage MAX16 V
Input Voltage MIN+ 5.38 V
Line Regulation10 mV
ManufacturerTexas Instruments
Manufacturer Part No.TPS76150DBVR
Marking CodePALI
Maximum Operating Tempe.+ 125 C
Maximum Power Dissipati.0.555 W
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1 Output
Number of Regulators1
Operating Temperature-40?C ~ 125?C
Output ConfigurationPositive
Output Current100 mA
Output TypeFixed
Output Voltage5 V
PackageTape & Reel (TR)
Package / CaseSC-74A, SOT-753, SOP-5
Package/CaseSOT-23-5
PackagingReel
Part StatusActive
Product CategoriesLow Dropout (LDO) Regul.
Product CategoryLDO Voltage Regulators
Protection FeaturesOver Current, Over Temp.
PSRR63dB (1kHz)
RoHs StatusLead free/RoHS Compliant
SeriesTPS76150, -
SKU453090
Supplier Device PackageSOT-23-5
TypeSemiConductor
Unit Weight13 mg
Voltage - Input (Max)16V
Voltage - Output (Max)-
Voltage - Output (Min/F.5V
Voltage Dropout (Max)0.28V @ 100mA
Voltage Regulation Accu.2 %

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers178-89830.22681529Texas Instruments0.2268 @ 1
Win SourceTPS76150DBVR0.4841043000Texas Instruments0.484 @ 104
Digi-Key18490241.515990Texas Instruments1.5 @ 1
Newark33AH53781.831297TEXAS INSTRUMENTS1.83 @ 1
thumbzoomswatee.comTPS76150DBVR2.412515Texas Instruments2.4 @ 1
Little DiodeTPS76150DBVR5.93312851In StockTI5.9331285 @ 1
