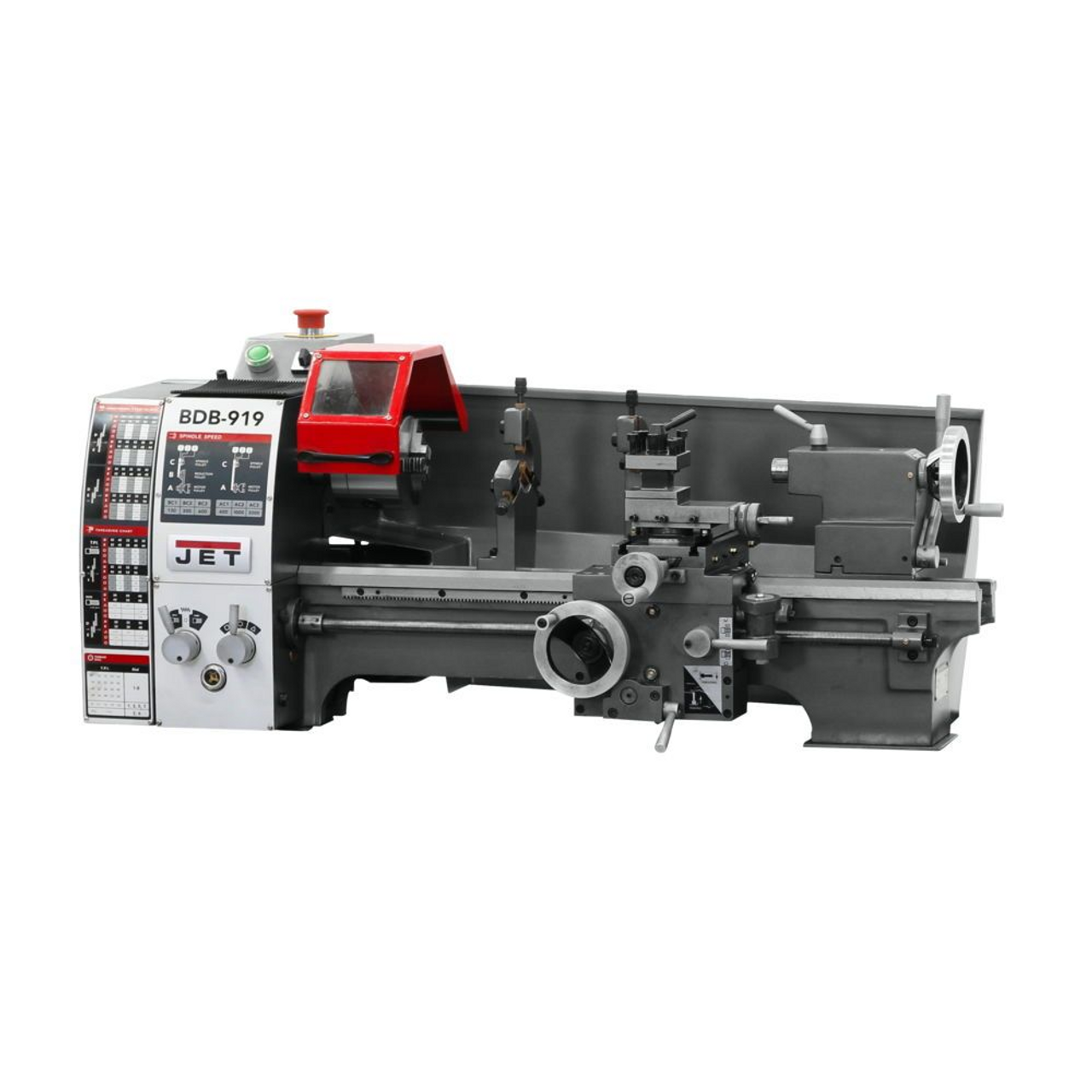

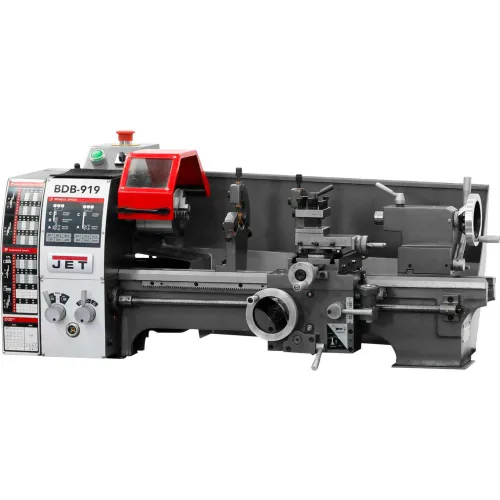

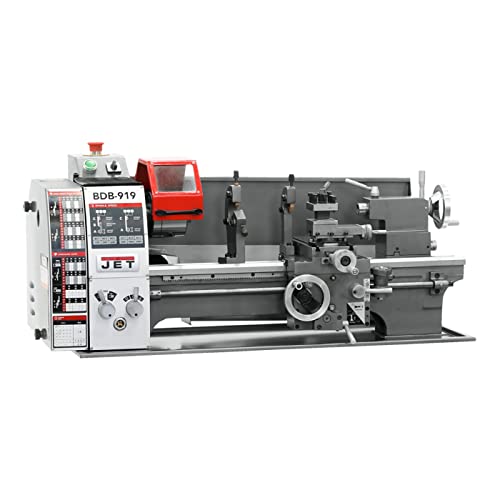

JET BDB-919 9x19-Inch Belt Drive Bench lathe, 3/4HP, 115V 1PH (321378)

JET BDB-919 9x19-Inch Belt Drive Bench lathe, 3/4HP, 115V 1PH (321378)zoom

Attributes

Key Value
BrandJet
Carriage Travel17.5 in.
Compound Slide Travel1-7/8 in.
Country of Origin (subj.China
Cross Slide Travel4-1/4 in.
Distance Between Centers18 in.
Follow Rest Capacity1-3/4 in.
Height250 lbs.
Horsepower3/4 Hp
Length22 in.
Max. Tool Size4-1/2 in.
Number of Inch Threads27
Number of Longitudinal12
Number of Metric Threads1/2 in.
Number of Spindle Speeds6
Phase1-Phase
Range of Inch Threads8 Tpi - 56 Tpi
Range of Longitudinal F.0.0006 Ipr - 0.0368 Ipr
Range of Metric Threads0.5 - 3.5
Range of Spindle Speeds130 Rpm - 2,000 Rpm
Sku321378
SKU321378
Spindle Bore3/4 in.
Spindle Mount1-1/2 x 8-Tpi
Spindle Taper w/ SleeveMT-3
Steady Rest Capacity1-3/4 in.
Swing Over Bed8-3/4 in.
Swing Over Cross Slide5 in.
Tailstock Spindle Travel1-9/16 in.
Taper in Tailstock Spin.MT-2
Voltage115v
Width20 in.
Width of Bed41 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomFactory Authorized OutletJET-3213782849.01In StockJet2849.0 @ 1
internationaltool.comJET-3213783399.01In StockJet3399.0 @ 1
thumbzoomGlobal IndustrialWBB23654843469.01In StockJET3469.0 @ 1
thumbzoombeavertools.comJT3213783469.01In StockJet3469.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-JT9-3213783469.012Jet3469.0 @ 1
elitemetaltools.com104793469.01In StockJET3469.0 @ 1
ToolUp.comJET 3213783469.01In StockJet3469.0 @ 1
thumbzoomimsbolt.com3213783469.01In StockJET3469.0 @ 1
thumbzoomZoroG1080311874509.431In Stock30Jet4509.43 @ 1
