Leeson 131469.00

B00EP3KK9E

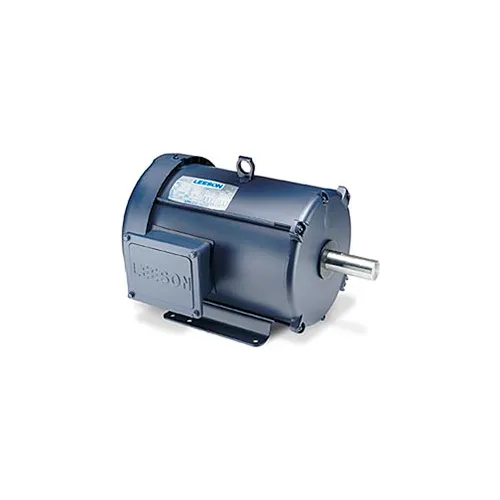

Leeson 131469.00 Variable and Constant Torque HVAC Motor, 3 Phase, 184T Frame, Rigid Mounting, 5HP, 1800 RPM, 208-230V Voltage, 60/60Hz Fequency

Leeson 131469.00 Variable and Constant Torque HVAC Motor, 3 Phase, 184T Frame, Rigid Mounting, 5HP, 1800 RPM, 208-230V Voltage, 60/60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating13 A
Application TypeFan and Blower Motors, .
ApprovalsCSA, UL
Bearing TypeBall, 15.96
Class/GroupC184T48FB62
CompositionSteel
Description:OBSOLETE REPLACED BY 18.
Dimensions15.96 in L x 10.37 in H
EnclosureTotally Enclosed Fan Co.
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, HVAC Ser.
Frame184T
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower5 hp
Insulation ClassClass F
Item Number131469.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number131469.00
MaterialRolled Steel
MFG Part #:131469.00
Model NumberC184T48FB62
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame184T
Net Weight94 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4, 8
Overall Length15.96 "
Phase3, 3 ph
Product SeriesHVAC
RotationReversible
RPM1,800 RPM
Service Factor1
Shaft DiameterUL;CSA
Shaft Size1.13 in Dia x 2.75 in L
Speed1740 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720017388

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco131469.00-LEES1188.551In StockLeeson94.01188.55 @ 1
thumbzoomGlobal IndustrialWBB2176481215.01In Stock17Leeson1215.0 @ 1
kscdirect.comLEE 1314691338.81In StockLEESON ELECTRIC CORPORATION1338.8 @ 1
AmazonTPB00EP3KK9E1359.871In Stock10Leeson1359.87 @ 1
thumbzoomWalker Industrial131469-001387.01In Stock17Leeson1387.0 @ 1
