Marathon Electric B206

B00178K54A

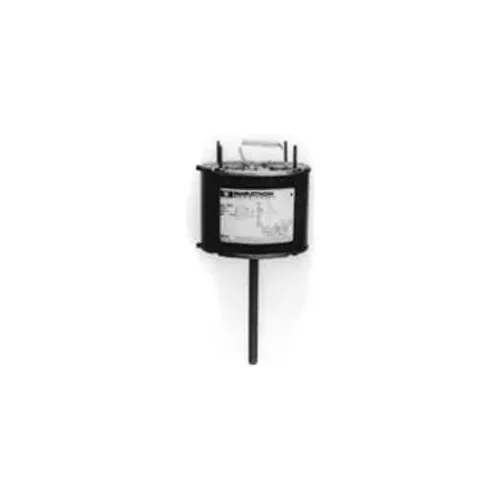

Marathon B206 Belt Drive Blower Motor, Single/Split Phase, C-Dimension - 9.62, 1/4 hp, 1725 RPM, 115V, 5 amp

Marathon B206 Belt Drive Blower Motor, Single/Split Phase, C-Dimension - 9.62, 1/4 hp, 1725 RPM, 115V, 5 ampzoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D2107
Amps5 A
applications:Blowers, Fans
ApprovalsCE, CSA, UR
base rpm:1725 rpm
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Current Rating5 A
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency57.5%, 58
Efficiency %58 %
EnclosureDrip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motors
Frame48Z
frame material:Rolled Steel
frame size:48YZ
Frequency60 Hz
frequency rating:60 Hz
full load current:5.00 A
full load efficiency:58.00 %
Gross Weight0 lbs
Horsepower1/4 hp
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
insulation class:B
Insulation TypeClass B
ip rating:12
ItemMotor,1/4Hp 115V 1725Rp.
Item NumberB206
Kilowatts0.19 kW
ManufacturerMarathon Electric
Manufacturer Model #048S17D2107
Manufacturer Part Number048S17D2107
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:1/4 hp, 0.25 hp
motor phase:1 ph
motor supply voltage:115 V
Mounting OrientationHorizontal
Mounting TypeResilient Base, Cradle .
mounting type:Resilient Base/Extended.
NEMA Frame48Z
Net Weight13 lbs
Nominal Voltage120 VAC
Number of Poles4
Number of Speeds1
Overall Length9.62", 9.62 "
overall length (c-dimen.9.62 in
Phase1, 1 Phase
Product TypeSplit Phase
RotationReversible
RPM1725 rpm, 1725, 1,725 R.
Service Factor1.35
service factor:1.35
Shaft Diameter0.5 ", 1/2"
shaft diameter:0.50 in
Shaft Length2.01"
Ship Weight14 lbs.
Special FeaturesService Factor - 1.35
StandardsUL Recognized
standards met:UL, CSA
Supply Voltage115 VAC
synchronous rpm:1800 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
TypeSplit Phase
UPC Code722856022066
Voltage (AC)115 VAC
Volts115
weight:14 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00178K54A98.971In Stock2Marathon Electric98.97 @ 1
thumbzoomelectricmotorwholesale.comB206122.01In StockMARATHON122.0 @ 1
thumbzoommotionindustries.com04741197125.291In StockMarathon Electric125.29 @ 1
thumbzoomktool.netB206133.251In StockMarathon Motors133.25 @ 1
thumbzoomGlobal IndustrialWBB872061142.951In StockMarathon Motors142.95 @ 1
thumbzoomemotorpro.comB206159.241In StockMarathon14.0159.24 @ 1
thumbzoomGuardianMARSB206176.071In StockMarathon176.07 @ 1
thumbzoomNational Supply NetworkB871777177.941In StockMARATHON MOTORS177.94 @ 1
thumbzoomindustrialstores.comB206178.631In Stock26Marathon Motors178.63 @ 1
thumbzoomGalcoB206-MARA180.51In StockMarathon Electric13.0180.5 @ 1
thumbzoomZoroG6458702182.141In StockMarathon14.9182.14 @ 1
us.rs-online.com72238301184.681In StockMarathon Motors184.68 @ 1
thumbzoomVoomi SupplyB206189.991In StockMarathon Motors189.99 @ 1
thumbzoommidwestapplianceparts.comB206-MT-P206.931In StockMarathon206.93 @ 1
kirbyrisk.com505222213.421In StockMarathon213.42 @ 1
thumbzoomblackhawksupply.comB206230.641In StockMarathon Motors230.64 @ 1
uri.comB206353.741In StockMarathon13.0353.74 @ 1
