Marathon Electric B319

B009AXVVKG

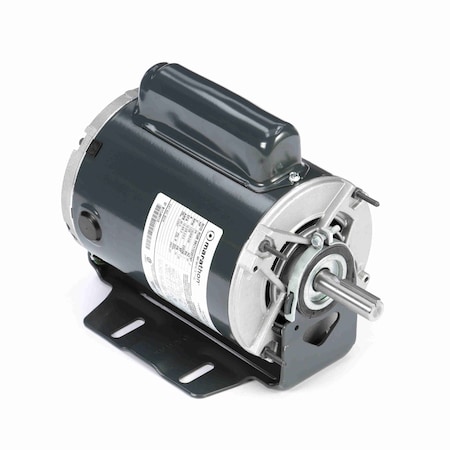

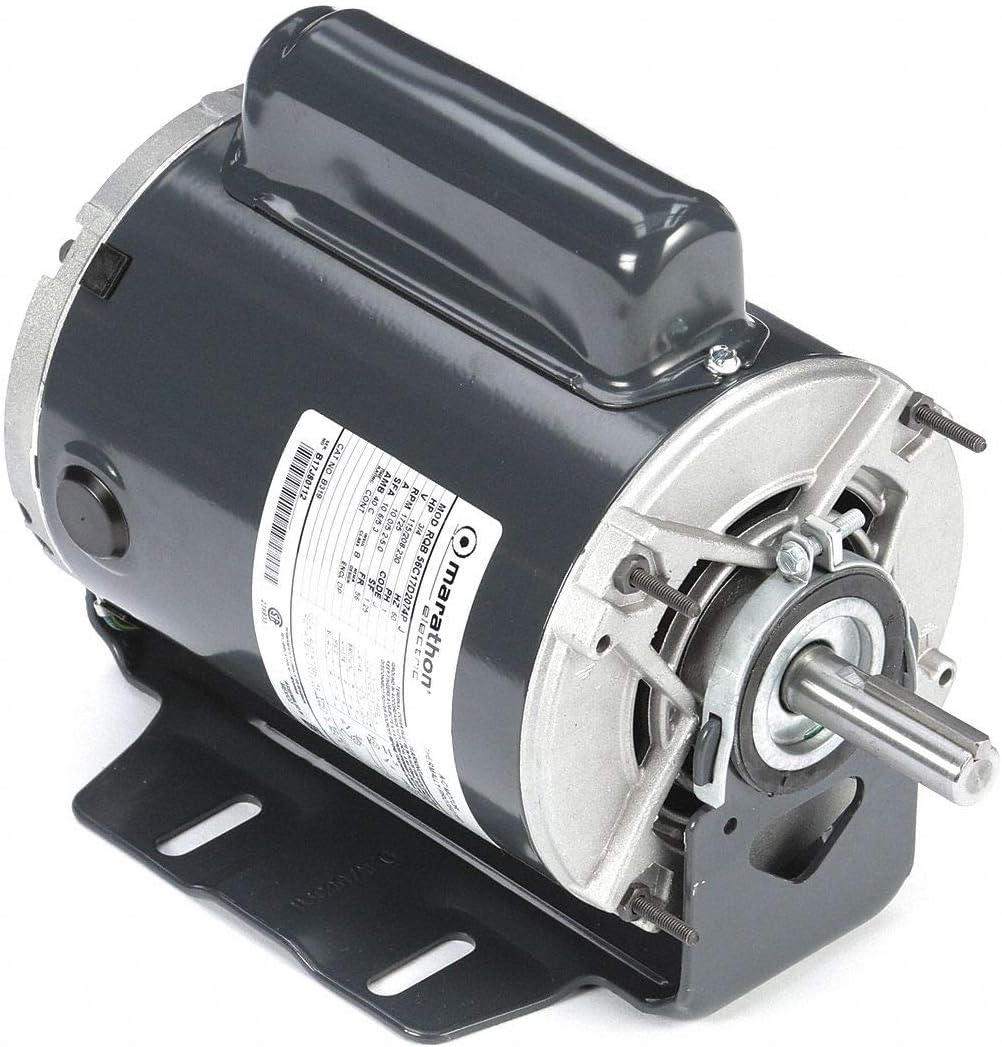

Marathon B319 3/4 1725 56 1/60/115/208-230 Fan&Blwr Single Ph

Marathon B319 3/4 1725 56 1/60/115/208-230 Fan&Blwr Single Phzoom

Attributes

Key Value
Alternate Mfr Part Numb.056C17D2074
Amps10.0/5.2-5.0
ApprovalsCSA, UL
ASINB01GQQCFJK, B0040150S2
Batteries Required?No
Bearing TypeBall
BrandMarathon
C-Dimension10.72 (in.)
Catalog NumberB319
CEY
CompositionSteel
CSAY
Current Rating10.0 ; 5.2 to 5.0 A
DE Bearing TypeBall
DEM ReferenceMA#B319
DutyContinuous
Duty CycleContinuous
Efficiency70.1
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure TypeDrip Proof
Family SeriesMarathon Electric Motor.
Frame56
Frame MaterialRolled Steel
Frame Type56
Frequency60, 60 Hz
Gross Weight22.585 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
Insulation TypeClass B
Inverter DutyNo
IP Code22
Item model numberB319
Item NumberB319
Item Package Quantity1
KVA CodeJ
ManufacturerMarathon Electric, Mara.
Manufacturer Part Number056C17D2074
Max Ambient40?C
Model Number56C17D2074
Motor OrientationHorizontal
Motor TypeCapacitor Start
Mounting TypeResilient Base, Resilie.
NEMA Frame56
Net Weight21.23 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles4
ODE Bearing TypeBall
Overall Length11.72 "
Overload ProtectionAutomatic
Part NumberB319
Phase1, 1 Phase
Product CategoryGeneral Purpose NEMA Ge.
Product SeriesGeneral Purpose
RotationSelective Counterclockw.
RPM1725 RPM, 1,800 RPM, 17.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.25
Shaft Diameter5/8 (in.)
Shaft Extension1.87 (in.)
Shaft TypeT
Special FeaturesService Factor - 1.25
Speeds1
StandardsUL Recognized
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
Type of Overload Protec.Automatic
ULRecognized
UPC Code722856023193
Voltage115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comMB319255.711In StockMarathon20.0255.71 @ 1
AmazonTPB009AXVVKG276.471In Stock1Marathon Electric276.47 @ 1
thumbzoomMRO Supply2270449282.661In StockMarathon Electric282.66 @ 1
thumbzoomelectricmotorwholesale.comB319283.01In StockMARATHON283.0 @ 1
thumbzoomNational Supply NetworkB871673283.531In StockMARATHON MOTORS283.53 @ 1
thumbzoomAmazonSCB01GQQCFJK314.41In StockMarathon Industries314.4 @ 1
thumbzoommidwestapplianceparts.comB319-MT-P322.621In StockMarathon322.62 @ 1
thumbzoomGalcoB319-MARA344.111In StockMarathon Electric22.585344.11 @ 1
thumbzoomindustrialstores.comB319353.21114Marathon Motors353.21 @ 1
thumbzoomAutomation DirectB319368.018Marathon22.36368.0 @ 1
us.rs-online.com72237963381.0612Marathon Motors381.06 @ 1
thumbzoomZoroG7041427391.991In StockMarathon391.99 @ 1
thumbzoomDreisilkerMA-RBC-B319394.671In StockMarathon394.67 @ 1
thumbzoomptacsolutions.comB319394.93114Marathon Motors394.93 @ 1
AmazonB0040150S2431.911In StockMarathon431.91 @ 1
kirbyrisk.com507275467.31In StockMarathon467.3 @ 1
cbtcompany.comB319593.41In StockMarathon Electric Motors593.4 @ 1
uri.comB319948.91In StockMarathon22.76948.9 @ 1
