Marathon Electric B336

B007ZQLIM6

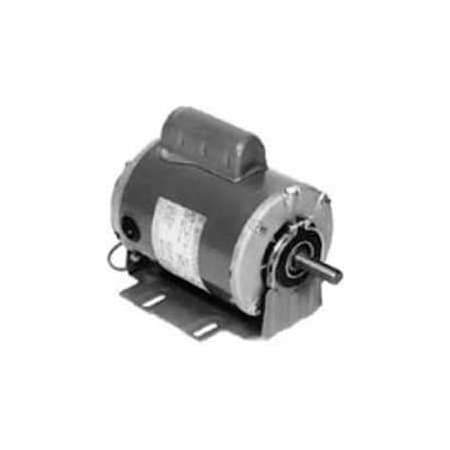

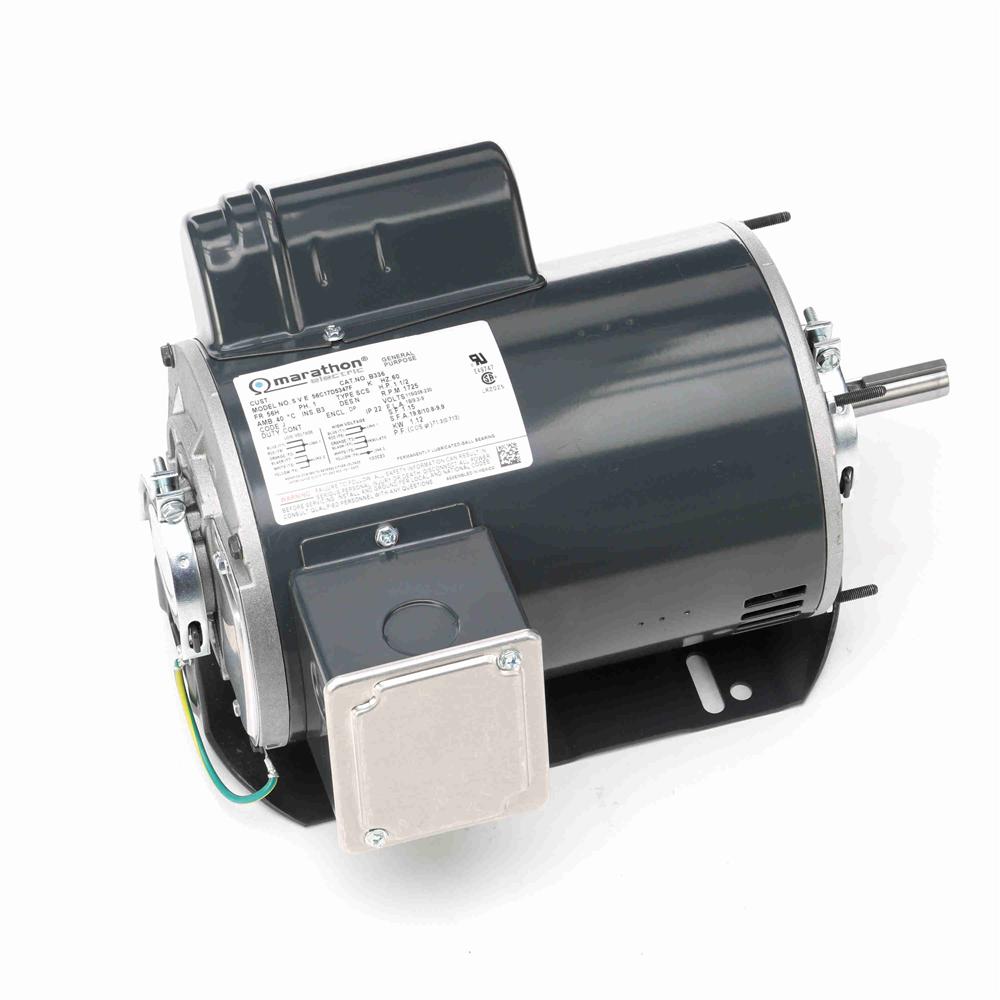

Marathon B336 Fan and Blower Motor, Single/Split Phase, 1 1/2 hp, 1725 RPM, 115/208-230V, 18.0/9.3-9.0 amp

Marathon B336 Fan and Blower Motor, Single/Split Phase, 1 1/2 hp, 1725 RPM, 115/208-230V, 18.0/9.3-9.0 ampzoom

Attributes

Key Value
Alternate Mfr Part Numb.056C17D5347
Amps18.0/9.3-9.0, 18/9.3-9
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension12.85 (in.)
Catalog NumberB336
CEN
CompositionSteel
Country of Origin (subj.United States
CSAY
DE Bearing TypeBall
DEM ReferenceMA#B336
DutyContinuous
Duty CycleContinuous
Efficiency0.77
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motor.
Frame56H
Frame MaterialRolled Steel
Frame Type56H
Frequency60
Gross Weight0 lbs
Horsepower1-1/2 hp
HP1 1/2, 1-1/2
Hz60
Insulation ClassB
Inverter DutyNo
IP Code22
Item NumberB336
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #056C17D5347
Manufacturer Part Number056C17D5347
Max Ambient40?C
Maximum Ambient Tempera.40? C
Model Number56C17D5347
Motor Diameter6-1/2"
Motor OrientationHorizontal
Motor Shell Length8.56"
Motor TypeCapacitor Start
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base, Resilie.
NEMA Frame56H
Net Weight41 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length12.85", 12.85 "
Overload ProtectionNone
Phase1
Product CategoryGeneral Purpose NEMA Ge.
Product SeriesGeneral Purpose
Product TypeCapacitor Start
RotationReversible, Selective C.
RPM1725, 1,800 RPM, 1800
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.15
Shaft Diameter5/8 (in.), 5/8"
Shaft Extension1.91 (in.)
Shaft Length1.91"
Shaft TypeNEMA 56
Ship Weight39 lbs.
Speeds1
Type of Overload Protec.No
ULRecognized
Voltage115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115, 208, 230, 115/208-.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB336318.01In StockMARATHON318.0 @ 1
thumbzoomcshincorporated.comMB336401.931In StockMarathon39.0401.93 @ 1
thumbzoomktool.netB336414.941In StockMarathon Motors414.94 @ 1
thumbzoomGalcoB336-MARA476.571In StockMarathon Electric41.0476.57 @ 1
thumbzoomMRO Supply2270450480.61In StockMarathon Electric480.6 @ 1
thumbzoomemotorpro.comB336481.661In StockMarathon39.0481.66 @ 1
thumbzoommidwestapplianceparts.comB336-MT-P490.821In StockMarathon490.82 @ 1
thumbzoomNational Supply NetworkB871677508.941In StockMARATHON MOTORS508.94 @ 1
thumbzoomVoomi SupplyB336533.51In StockMARATHON MOTORS533.5 @ 1
us.rs-online.com72649706536.811In StockMarathon Motors536.81 @ 1
thumbzoomDreisilkerMA-RBC-B336586.921In StockMarathon586.92 @ 1
kirbyrisk.com509827732.831In StockMarathon732.83 @ 1
thumbzoomZoroG104937148960.881In StockMarathon Motors960.88 @ 1
