Marathon Electric B338

B007ZQLJ8Y

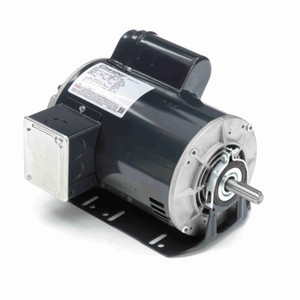

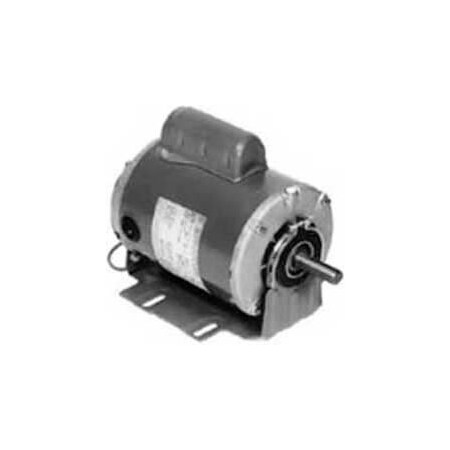

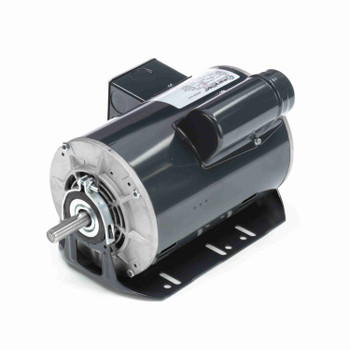

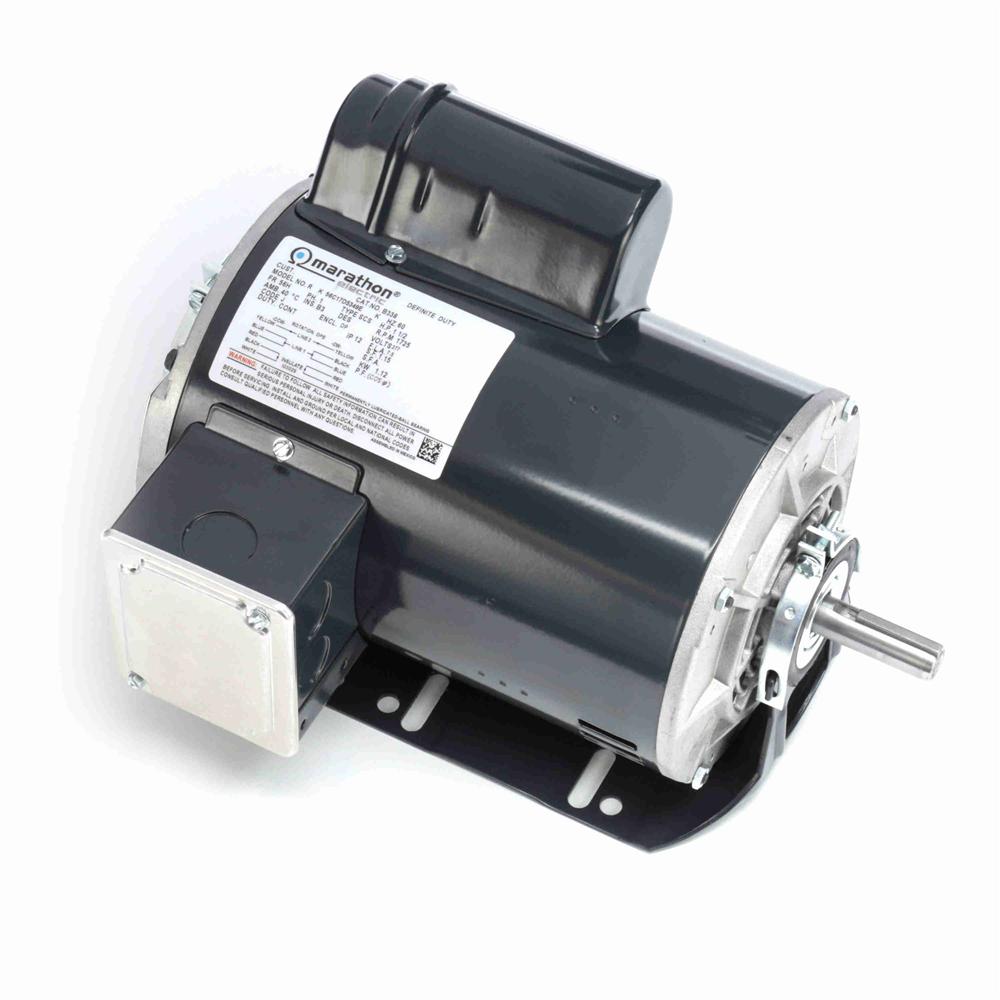

Marathon B338 56H Frame Open Drip Proof 56C17D5349 Belt Drive Motor, 1-1/2 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B338 56H Frame Open Drip Proof 56C17D5349 Belt Drive Motor, 1-1/2 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.056C17D5349
Amps7.5
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension12.85 (in.)
Catalog NumberB338
CEN
CompositionRolled Steel
CSAN
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.77
Efficiency %77 %
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame56H
Frame MaterialRolled Steel
Frame Type56H
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1-1/2 hp
HP1 1/2, 1-1/2
Hz60
Insulation ClassB
IP Code12
Item NumberB338
Kilowatts1.1 kW
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #056C17D5349
Manufacturer Part Number056C17D5349
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor OrientationHorizontal
Motor Shell Length8.56"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame56H
Net Weight41 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length12.85", 12.85 "
Package Quantity1
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeCapacitor Start
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.15
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension1.91 (in.)
Shaft Length1.91"
Shaft TypeT
Ship Weight41 lbs.
Speeds1
Type of Overload Protec.No
ULNo
Voltage277
Voltage (AC)277 VAC
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB338342.01In StockMARATHON342.0 @ 1
thumbzoomcshincorporated.comMB338507.721In StockMarathon41.0507.72 @ 1
thumbzoomGalcoB338-MARA515.641In StockMarathon Electric41.0515.64 @ 1
thumbzoomMRO Supply2269639520.321In StockMarathon Electric520.32 @ 1
thumbzoomapexindustrialautomation.comB338522.52153Marathon522.52 @ 1
us.rs-online.com72650233602.921In StockMarathon Motors602.92 @ 1
thumbzoomemotorpro.comB338618.751In StockMarathon41.0618.75 @ 1
thumbzoomDreisilkerMA-RBC-B338635.431In StockMarathon635.43 @ 1
thumbzoomNational Supply NetworkB871996665.891In StockMARATHON MOTORS665.89 @ 1
thumbzoomZoroG008434293967.991In Stock10Marathon Motors967.99 @ 1
