Marathon Electric B318

B007ZQLH6S

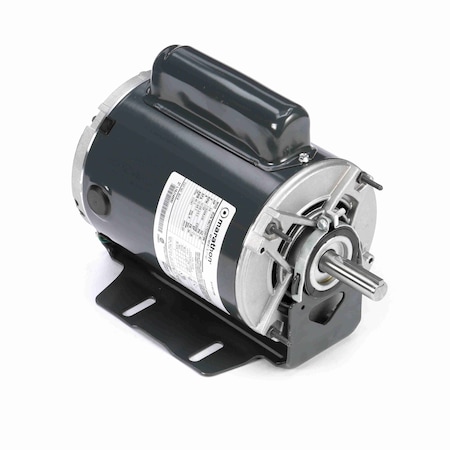

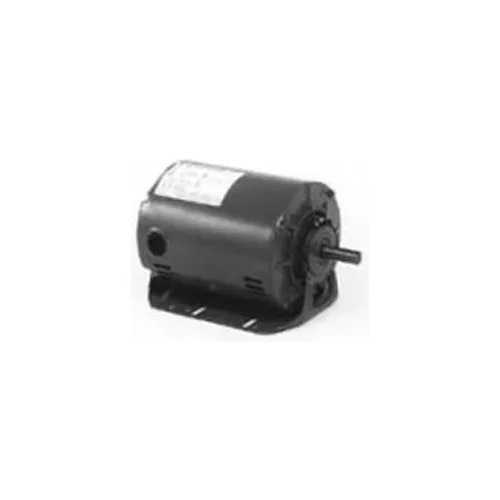

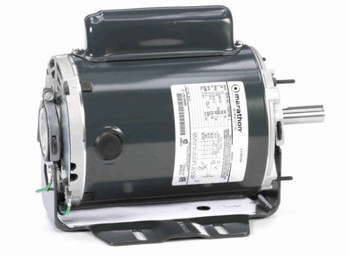

Marathon B318 Fan and Blower Motor, Single/Split Phase, Protection - None, 3/4 hp, 1725 RPM, 115/208-230V, 10.0/5.2-5.0 amp

Marathon B318 Fan and Blower Motor, Single/Split Phase, Protection - None, 3/4 hp, 1725 RPM, 115/208-230V, 10.0/5.2-5.0 ampzoom

Attributes

Key Value
Amps10.0/5.2-5.0
ApprovalsCSA, UL
Bearing TypeBall
BrandMarathon
C-Dimension10.72 (in.)
Catalog NumberB318
CEN
CompositionSteel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure TypeDrip Proof
Family SeriesMarathon Electric Motor.
Frame56
Frame MaterialRolled Steel
Frame Type56
Frequency60
Gross Weight0 lbs
Horsepower3/4 hp
HP3/4
Hz60
Insulation ClassB
Inverter DutyNo
IP Code22
Item NumberB318
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Part Number056C17D2073
Max Ambient40?C
Model Number56C17D2073
Motor OrientationHorizontal
Motor TypeCapacitor Start
Mounting TypeResilient Base, Resilie.
NEMA Frame56
Net Weight24 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles4
ODE Bearing TypeBall
Overall Length11.72 "
Overload ProtectionNone
Phase1
Product CategoryGeneral Purpose NEMA Ge.
Product SeriesGeneral Purpose
RotationSelective Counterclockw.
RPM1,800 RPM, 1800
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.25
Shaft Diameter5/8 (in.)
Shaft Extension1.88 (in.)
Shaft TypeT
Speeds1
Type of Overload Protec.No
ULRecognized
Voltage115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB318265.01In StockMARATHON265.0 @ 1
thumbzoomcshincorporated.comMB318275.961In StockMarathon27.0275.96 @ 1
thumbzoomapexindustrialautomation.comB318293.11572Marathon293.1 @ 1
thumbzoomGalcoB318-MARA326.61In StockMarathon Electric24.0326.6 @ 1
thumbzoommidwestapplianceparts.comB318-MT-P345.1712Marathon345.17 @ 1
thumbzoomVoomi SupplyB318363.181In StockMarathon Motors363.18 @ 1
thumbzoomZoroG7040602366.381In Stock10Marathon366.38 @ 1
thumbzoomDreisilkerMA-RBC-B318369.311In StockMarathon369.31 @ 1
thumbzoomindustrialstores.comB318372.8712Marathon Motors372.87 @ 1
thumbzoomMRO Supply2270448393.291In StockMarathon Electric393.29 @ 1
kirbyrisk.com505182437.271In StockMarathon437.27 @ 1
thumbzoomGlobal IndustrialWBB872005529.01In StockMarathon Motors529.0 @ 1
uri.comB318829.181In StockMarathon24.0829.18 @ 1
