- mpnB335
- brandname: Marathon Electric
- manufacturername: Marathon Electric

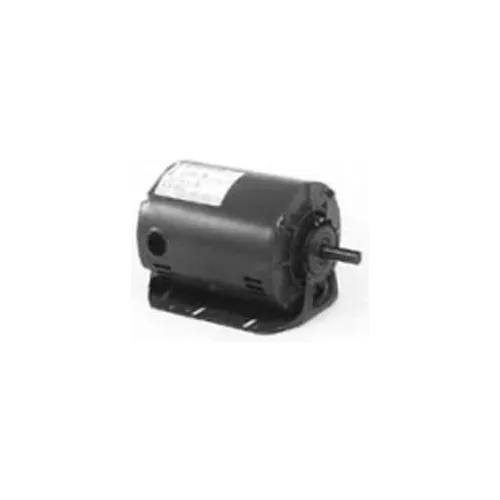

Marathon B335 56 Frame Open Drip Proof 56B17D5703 Belt Drive Motor, 1 hp, 1725/1140 RPM, 115 VAC, 1 Phase, 2 Speeds, Ball Bearing, Resilient Ring Mount, Capacitor Start
- Brand: Marathon Electric
- PartNumber: B335
- Model: MB335
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 056B17D5703 |
| Amps | 11.5/7 A |
| Approvals | CE, CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Efficiency % | 74 % |
| Enclosure | Drip Proof |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Family Series | Marathon Electric Motors |
| Frame | 56 |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 1 hp |
| HP | 1/3, 1 |
| Hz | 60 |
| Insulation Class | B |
| Item Number | B335 |
| Kilowatts | 0.75 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 056B17D5703 |
| Manufacturer Part Number | 056B17D5703 |
| Maximum Ambient Tempera. | 40? C |
| Motor Diameter | 6-1/2" |
| Motor Shell Length | 8.56" |
| Mounting Orientation | Horizontal |
| Mounting Type | Resilient Base, Cradle . |
| NEMA Frame | 56 |
| Net Weight | 39 lbs |
| Number of Poles | 4, 6 |
| Number of Speeds | 2 |
| Overall Length | 12.85", 12.85 " |
| Phase | 1 |
| Product Type | Capacitor Start, Capaci. |
| Rotation | Reversible |
| RPM | 1140/1725, 1,725 RPM |
| Service Factor | 1.15 |
| Shaft Diameter | 0.63 ", 5/8" |
| Shaft Length | 1.91" |
| Ship Weight | 39 lbs. |
| Thermal Protection | Automatic |
| Voltage (AC) | 115 VAC |
| Volts | 115 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | B335-MARA | 757.0 | 36 | In Stock | | Marathon Electric | 39.0 | 757.0 @ 36 |
 | emotorpro.com | B335 | 801.44 | 1 | In Stock | | Marathon | 39.0 | 801.44 @ 1 |
| us.rs-online.com | 72650215 | 861.82 | 1 | In Stock | | Marathon Motors | | 861.82 @ 1 |
 | Global Industrial | WBB872092 | 916.0 | 1 | In Stock | | Marathon Motors | | 916.0 @ 1 |
