Marathon Electric B337

B007ZQLIV2

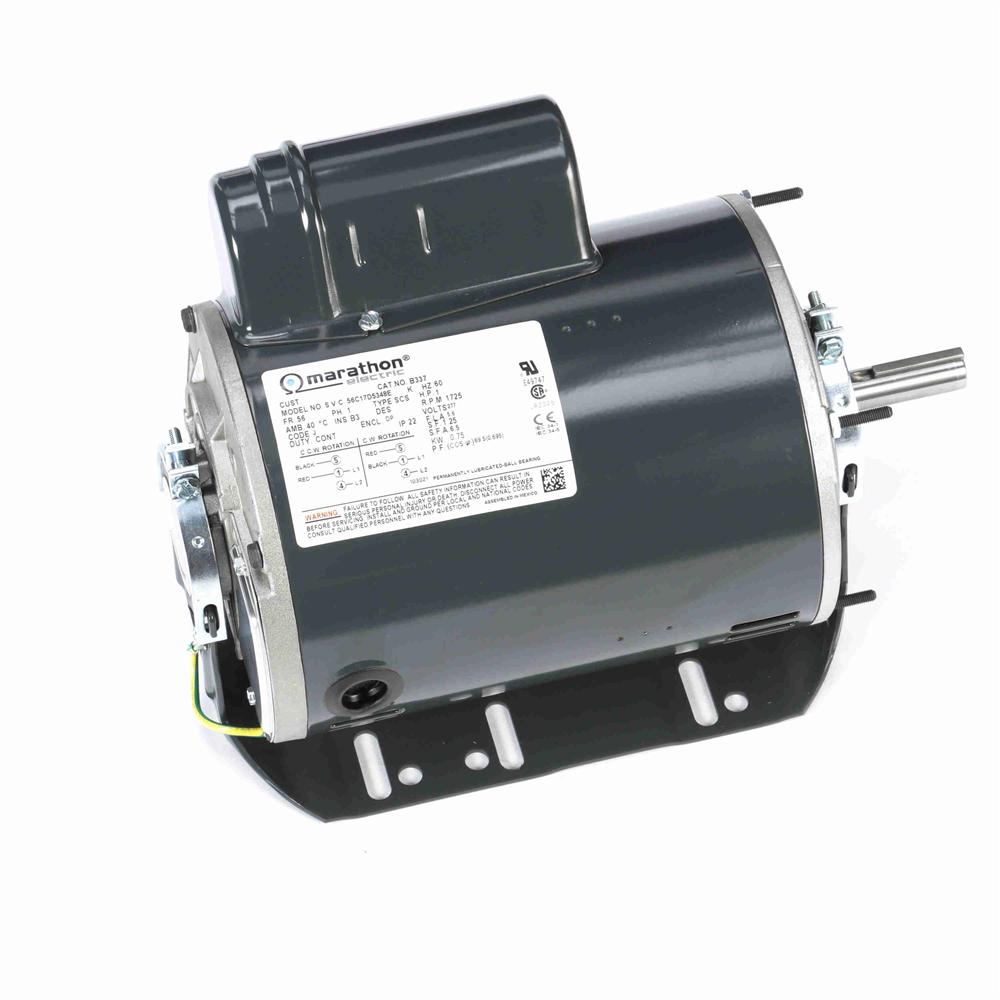

Marathon B337 56 Frame Open Drip Proof 56C17D5348 Belt Drive Motor, 1 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B337 56 Frame Open Drip Proof 56C17D5348 Belt Drive Motor, 1 hp, 1725 RPM, 277 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.056C17D5348
Amps5.6
applications:Blowers, Fans
ApprovalsCE, CSA, UR
base rpm:1725 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension11.85 (in.)
Catalog NumberB337
CEY
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.72
Efficiency %72 %
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motors
Frame56
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56
Frame Type56
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:5.60 A
full load efficiency:72.00 %
Gross Weight0 lbs
Horsepower1 hp
HP1
Hz60
Insulation ClassB
insulation class:B
IP Code12
ip rating:12
Item NumberB337
Kilowatts0.75 kW
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #056C17D5348
Manufacturer Part Number056C17D5348
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter6-1/2"
motor horsepower:1.00 hp, 1 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length7.56"
motor supply voltage:277 V
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
mounting type:Resilient Base/Extended.
NEMA Frame56
Net Weight31 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length11.85 ", 11.85"
overall length (c-dimen.11.85 in
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeCapacitor Start
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.25
service factor:1.25
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
shaft diameter:0.63 in
Shaft Extension1.91 (in.)
Shaft Length1.91"
Shaft TypeT
Ship Weight29 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1800 rpm
Type of Overload Protec.No
ULRecognized
Voltage277
Voltage (AC)277 VAC
Volts277
weight:31 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB337299.01In StockMARATHON299.0 @ 1
thumbzoommotionindustries.com04488786409.741In StockMarathon Electric409.74 @ 1
thumbzoomGalcoB337-MARA445.211In StockMarathon Electric31.0445.21 @ 1
thumbzoomcshincorporated.comMB337445.821In StockMarathon33.0445.82 @ 1
thumbzoomMRO Supply2269640449.61In StockMarathon Electric449.6 @ 1
us.rs-online.com72650225501.51In StockMarathon Motors501.5 @ 1
thumbzoomemotorpro.comB337534.261In StockMarathon29.0534.26 @ 1
thumbzoommidwestapplianceparts.comB337-MT-P544.4211Marathon544.42 @ 1
thumbzoomDreisilkerMA-RBC-B337549.071In StockMarathon549.07 @ 1
thumbzoomNational Supply NetworkB871678568.591In StockMARATHON MOTORS568.59 @ 1
thumbzoomGuardianMARSB337690.691In StockMarathon690.69 @ 1
