Molex / Waldom 46114-2401

B00NSD7ZS6

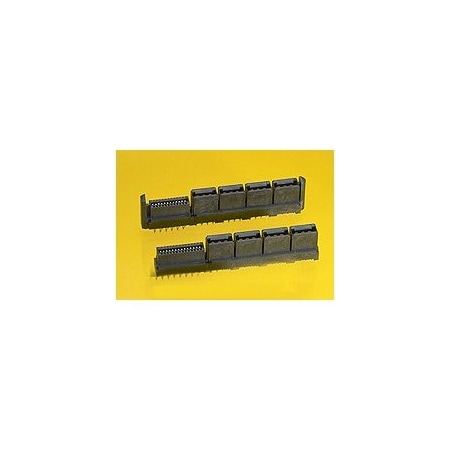

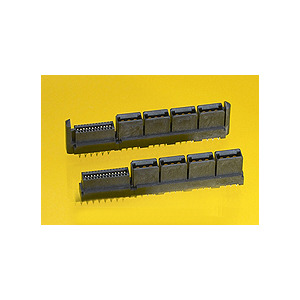

Molex / Waldom 46114-2401 Connector Power

Molex / Waldom 46114-2401 Connector Powerzoom

Attributes

Key Value
(p)ower-(s)ignal Config.2p - 40s
ApplicationBoard-to-Board, Power
CategoryConnectors, Interconnec.
Circuits (Loaded)42
Circuits (maximum)42
ColorBlack
Color - ResinBlack
Connector StyleLPHPower
Connector TypeReceptacle, Outer Shrou.
Connector Usage-
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Layout, Typical40 Signal, 2 Power
CSALR19880
Current - Maximum per C.30.0A
Current Rating (Amps)-
Description1.27MM, 12.00MM PITCH, .
Detailed Description42 Connector Receptacle.
Digi-Key Part Number2266-46114-2401-ND
Durability (mating cycl.250
Features-
Flammability94V-0
ManufacturerMolex
Manufacturer Product Nu.46114-2401
Material - MetalHigh Performance Alloy .
Material - Plating Term.Tin
Material - ResinHigh Temperature Thermo.
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Columns-
Number of Positions42
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
OrientationVertical
PackageBox
Pitch-
Pitch - Mating Interface1.27mm, 12.00mm
Pitch - Termination Int.1.27mm, 2.50mm
Plating min - Mating0.762?m
Plating min - Terminati.2.540?m
Polarized to Mating PartYes
Polarized to PCBYes
Product NameEXTreme LPHPower
Product StatusActive
SeriesEXTreme LPHPower 46114
Temperature Range - Ope.-40? to +105?C
TerminationPress-Fit
ULE29179
Voltage - Maximum250V AC (RMS)/DC
Voltage Rating250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 46114-24016.2410238MOLEX6.24 @ 10
Onlinecomponents.com46114-24016.441192MOLEX / WALDOM6.44 @ 1
thumbzoomjensentools.com101902737.91238Molex7.9 @ 1
Newark56R03678.95315In StockMOLEX8.95 @ 315
thumbzoomDigi-Key147339949.5210238Molex9.52 @ 10
thumbzoomZoroG404547185.510In StockMolex85.5 @ 10
