- mpnPNF18-6R-C
- brandname: PANDUIT
- manufacturername: PANDUIT

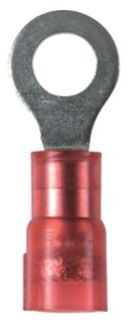

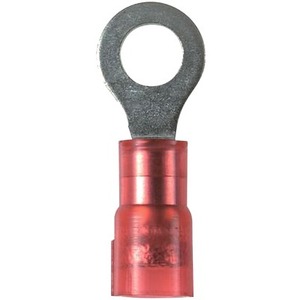

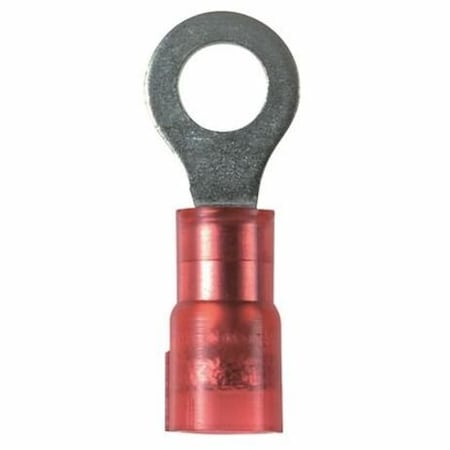

Panduit PNF18-6R-C Ring Terminal, Nylon Insulated, 22 - 18 AWG, #6 Stud Size, Funnel Entry, Red (100-Pack)
- Brand: Panduit
- PartNumber: PNF18-6R-C
- Model: PNF18-6R-C
- Color: Red
- Size: 100-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Approval | Approval |
| Approvals | CSA, UL |
| Base Product Number | PNF18 |
| Brand Name | Panduit |
| Category | Connectors, Interconnec. |
| Color | Red |
| Connector Details | 1 x Ring Terminal |
| Connector Plating | Tin |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Description | CONN RING CIRC 18-22AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-15554-ND |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Family Series | Panduit Terminals, Pan-. |
| Features | Serrated Termination, F. |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulation, Insulated |
| Insulation Color | Insulation Color |
| Insulation Diameter | 0.080" ~ 0.136" (2.03mm. |
| Insulation Material | Nylon |
| Item | Ring,Funnel,Nylon,22-18. |
| Item Number | PNF18-6R-C |
| Length | 0.8 |
| Length - Overall | 0.770" (19.56mm) |
| Limited Warranty | 1 Year |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PNF18-6R-C |
| Manufacturer Product Nu. | PNF18-6R-C |
| Manufacturer Standard L. | 3 Weeks |
| Manufacturer Website Ad. | http://www.panduit.com |
| Material | Nylon - Insulation, Met. |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 100 |
| Packaged Quantity | 100 |
| Plating Material | Tin |
| Product Name | Terminal Connector |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Product Type | Terminal Connector |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Stud Size | Stud Size, #6 |
| Stud/Tab Size | 6 Stud |
| Temperature Rating | Temperature Rating |
| Terminal Material | Copper |
| Terminal Type | Ring, Terminal Type, Ci. |
| Termination | Crimp |
| Thickness | 0.032" (0.81mm) |
| Unspsc | Unspsc |
| UPC Code | 074983513178 |
| UPC ID | UPC ID |
| Volts | 600 V |
| Width | 0.3 |
| Width - Outer Edges | 0.250" (6.35mm) |
| Wire Gauge | 18-22 AWG |
| Wire Range | Wire Range |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.219 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PNF18-6R-C | 0.84 | 1 | 500 | | PANDUIT | | 0.84 @ 1 |
 | French Gerleman | PANDPNF186RC | 1.08 | 1 | 92 | | Panduit | | 1.08 @ 1 |
 | mecampbell.com | PANPNF18-6R-C | 1.12 | 100 | 92 | 151 | Panduit | | 1.12 @ 100 |
 | Galco | PNF18-6R-C-PNDT | 1.13 | 100 | 88 | | Panduit | | 1.13 @ 100 |
 | Platt.com | 0709665 | 1.32 | 1 | 88 | | Panduit | | 1.32 @ 1 |
| Airline Hydraulics | PANDUIT PNF18-6R-C | 1.36 | 1 | 88 | | Panduit Corp | | 1.36 @ 1 |
| us.rs-online.com | 71263928 | 1.4 | 2 | 68 | | Panduit | | 1.4 @ 2 |
 | Digi-Key | 451889 | 1.59 | 1 | 88 | | Panduit Corp | | 1.59 @ 1 |
 | Carlton Bates Company | 07498351317 | 109.0 | 1 | 92 | | PANDUIT | | 109.0 @ 1 |
 | Zoro | G0721120 | 111.1 | 1 | 88 | 26 | Panduit | 0.44 | 111.1 @ 1 |
 | gordonelectricsupply.com | PNF18-6R-C | 118.59 | 1 | 92 | 12 | PANDUIT | | 118.59 @ 1 |
 | alldataresource.com | PNF18-6R-C | 121.47 | 1 | 88 | | Panduit | | 121.47 @ 1 |
 | Newark | 06C0929 | 129.93 | 100 | In Stock | | PANDUIT | | 129.93 @ 100 |
 | turtle.com | PAN PNF18-6R-C | 132.55 | 1 | 92 | | Panduit | | 132.55 @ 1 |
 | PCNation | 6LF199 | 138.9 | 1 | 92 | | PANDUIT | 1.0 | 138.9 @ 1 |
| steinerelectric.com | 306867 | 158.65 | 1 | 92 | | Panduit | | 158.65 @ 1 |
