Panduit PNF10-8LF-D

B009EBW0KO

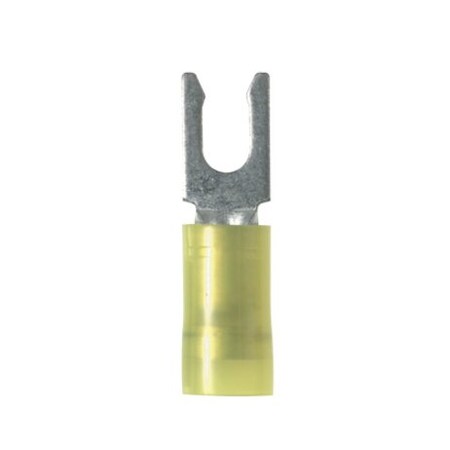

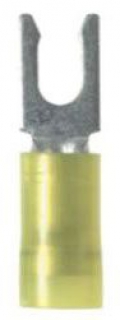

Panduit PNF10-8LF-D Locking Fork Terminal, Funnel Entry, 12-10 AWG, #8 Stud Size, Nylon Insulated

Panduit PNF10-8LF-D Locking Fork Terminal, Funnel Entry, 12-10 AWG, #8 Stud Size, Nylon Insulatedzoom

Attributes

Key Value
ApprovalsCSA, UL
Base Product NumberPNF10
CategoryConnectors, Interconnec.
ColorYellow
Connection MaterialTin-Plated Copper
Contact FinishTin
Contact MaterialCopper
Country of Origin (subj.Mexico
Family SeriesPanduit Terminals, Pan-.
FeaturesSerrated Termination
Gross Weight2.55 lbs
InsulatedInsulated
InsulationInsulated
Insulation ColorYellow
Insulation Diameter0.225" (5.72mm)
Insulation MaterialNylon
Insulation TypeNylon
ItemFork Terminal
Item NumberPNF10-8LF-D
Length - Overall1.050" (26.67mm)
Length - Ring Center to.-
Length - Termination-
ManufacturerPanduit
Manufacturer Part NumberPNF10-8LF-D
MaterialCopper
Material - InsulationPolyamide (PA), Nylon
Max Temp221 ?F
Max. Voltage600V
MfrPanduit Corp
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
PackageBulk
Package Quantity500
Part Status-
Plating MaterialTin
Product SeriesPan-Term Terminals
Product StatusActive
RoHS CompliantYes
SeamGrip Sleeved
SeriesPan-Term?
Stud Size#8
Stud/Tab Size8 Stud
Terminal MaterialCopper
Terminal TypeLocking, Spade/Fork - L.
TerminationCrimp
Tongue Inside Opening0.160" (4.06mm)
Volts600 V
Width - Outer Edges0.300" (7.62mm)
Wire Gauge10-12 AWG
Wire Range12 to 10 AWG
Wire Size12-10 AWG
Wire Size (AWG)10 AWG, 11 AWG, 12 AWG
Wire Strip Length0.281 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPNF10-8LF-D0.4431600PANDUIT0.443 @ 500
Heilind ElectronicsPNF10-8LF-D0.467974001603PANDUIT0.46797 @ 500
thumbzoomFrench GerlemanPANDPNF108LFD0.591500Panduit0.59 @ 500
thumbzoomGalcoPNF10-8LF-D-PNDT0.61500500Panduit2.550.61 @ 500
thumbzoomPlatt.com07094710.721500Panduit0.72 @ 500
Airline HydraulicsPANDUIT PNF10-8LF-D0.731500Panduit Corp0.73 @ 500
Digi-Key4518170.78872500500Panduit Corp0.78872 @ 500
thumbzoomCarlton Bates Company07498381021245.01500PANDUIT245.0 @ 500
Newark66H2964268.581500PANDUIT268.58 @ 500
thumbzoomZoroG0787302284.531500148Panduit2.55284.53 @ 500
thumbzoomalldataresource.com10044565297.911500Panduit297.91 @ 500
thumbzoomgordonelectricsupply.comPNF10-8LF-D320.0150012PANDUIT320.0 @ 500
thumbzoomturtle.comPAN PNF10-8LF-D717.661500Panduit717.66 @ 500
