Ruland SPC-16-8-SS

B0060LXRAI

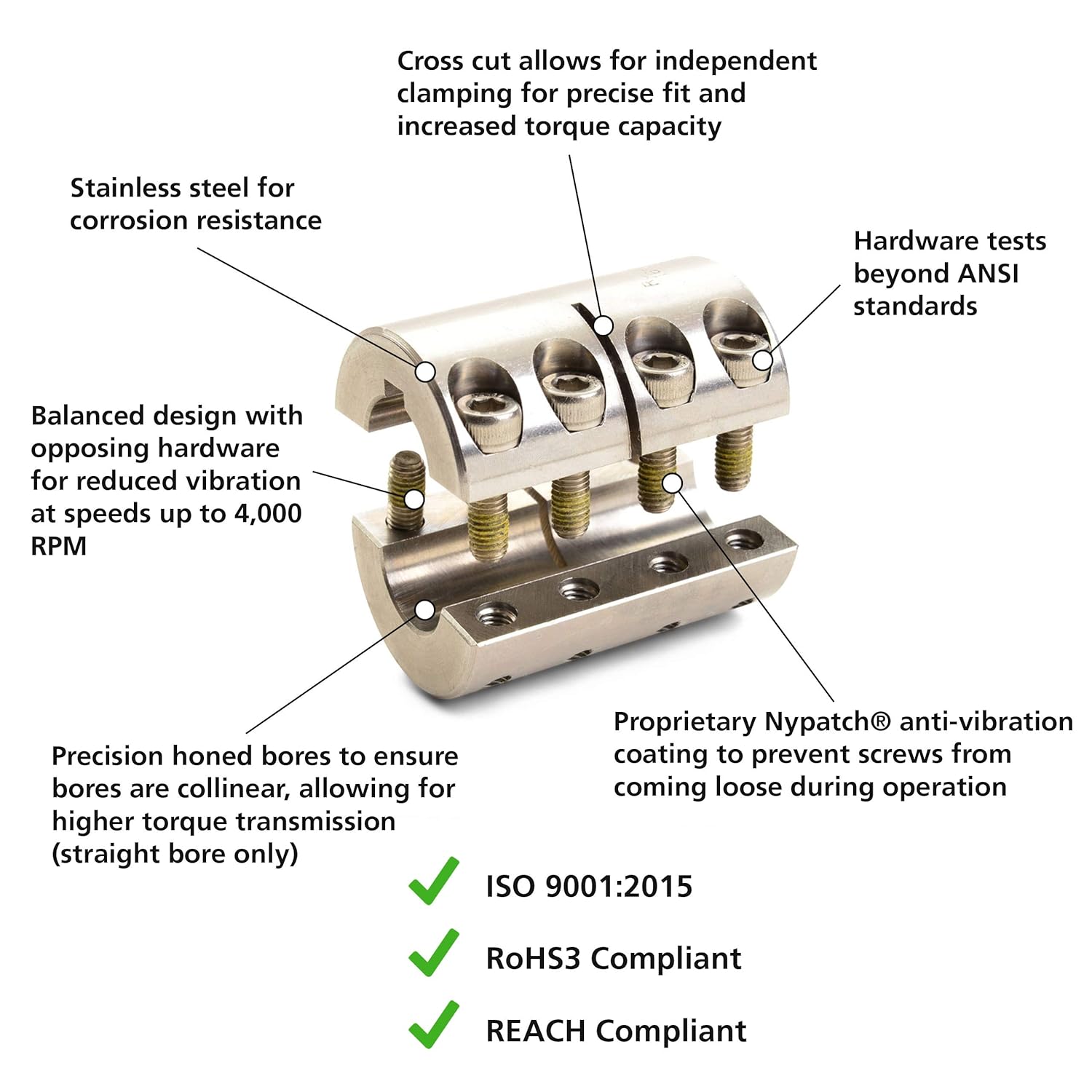

Ruland SPC-16-8-SS Two-Piece Clamping Rigid Coupling with Keyway, Stainless Steel, 1" Bore A Diameter, 1/2" Bore B Diameter, 1-3/4" OD, 3" Length, 1/4" x 1/8" Keyway Width

Ruland SPC-16-8-SS Two-Piece Clamping Rigid Coupling with Keyway, Stainless Steel, 1" Bore A Diameter, 1/2" Bore B Diameter, 1-3/4" OD, 3" Length, 1/4" x 1/8" Keyway Widthzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration1.500 in
B2 Max Shaft Penetration1.500 in
Balanced DesignYes
Bore (B1)1.0000 in
Bore Dia.1/2 in x 1 in
Bore Tolerance+0.0020 in / +0.0005 in
Clearance Dia.2.049 in
Clearance Dia. (In.)2.049
Clearance Diameter (C) .2.049 in
Country of OriginUSA
Country of Origin (subj.United States
DesignFour Vibration Resistan.
FinishBright
Finish SpecificationBright, No Plating
Forged Clamp Screw1/4-28
Full Bearing Support Re.No
Hex Wrench Size3/16 in
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Keyway (K1)1/4 in
Keyway (K2)1/8 in
Keyway Width1/4 in x 1/8 in
Keyway Width (In.)1/4 x 1/8
Length (L)3 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Torque1,200 in-lb
Max. Torque (In.-Lbs.)1200
Maximum Speed4,000 RPM
Moment of Inertia0.6922 lb-in
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)1 3/4 in
Outside Dia.1 3/4 in
Overall Length3 in
ProvidesExtra Holding Power for.
Rated Torque1200 in-lb
Recommended Gap0.094 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)0.670 in
Screw Material18-8 300 Series Stainle.
Screw Size1/4"-28
Screw Size (In.)1/4-28
Seating Torque110 lb-in
Shaft Locking Type - Co.2 Piece Clamp
Small Bore (B2)0.5000 in
StandardsREACH Compliant, RoHS2 .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeTwo Piece Clamp Type, w.
UNSPC31163009
UPC634529022535
UPC Code63452902253
Weight (lbs)1.503500
With Keyway / Without K.With Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2889853254.01In Stock10Ruland1.49254.0 @ 1
us.rs-online.com72339365272.251In StockRuland Manufacturing272.25 @ 1
thumbzoomcbtcompany.comSPC-16-8-SS277.541In StockRULAND MANUFACTURING277.54 @ 1
thumbzoomRulandSPC-16-8-SS318.431In StockRuland1.5035318.43 @ 1
thumbzoomAmazonB0060LXRAI334.371In StockRuland334.37 @ 1
motionindustries.com02338091427.751In StockRuland Manufacturing Co Inc427.75 @ 1
thumbzoomRaptor SuppliesAB9AFX570.46304251In StockRULAND MANUFACTURING570.4630425 @ 1
