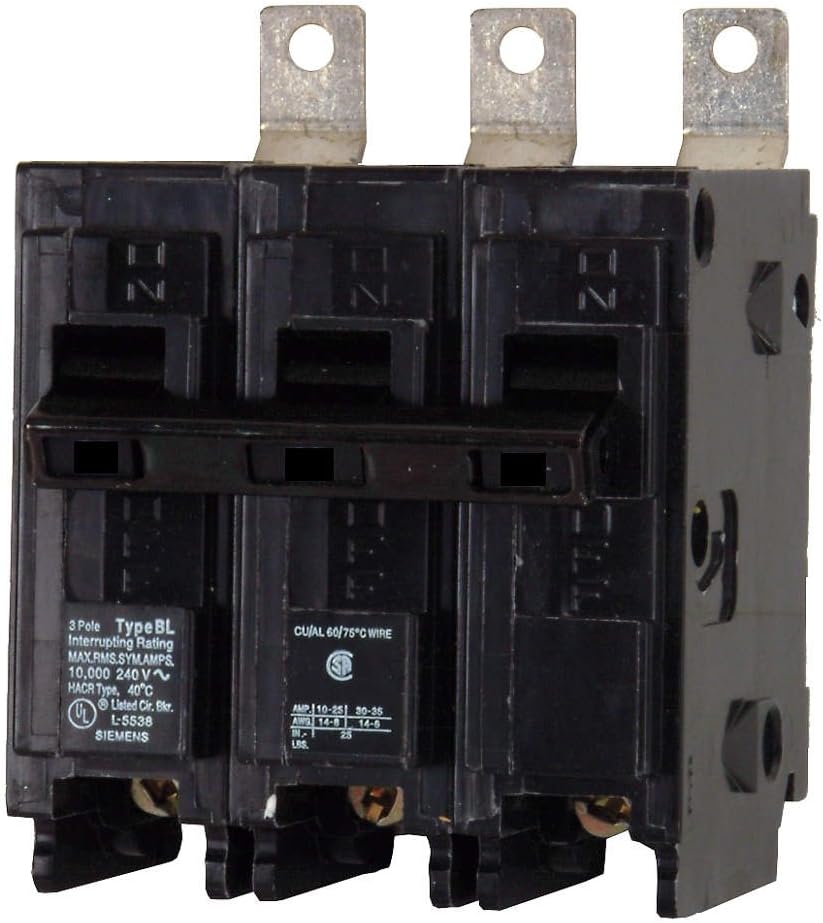

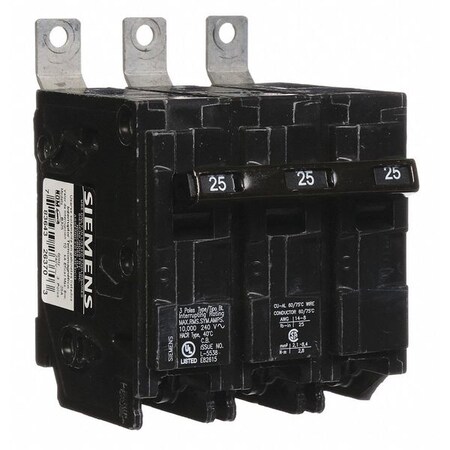

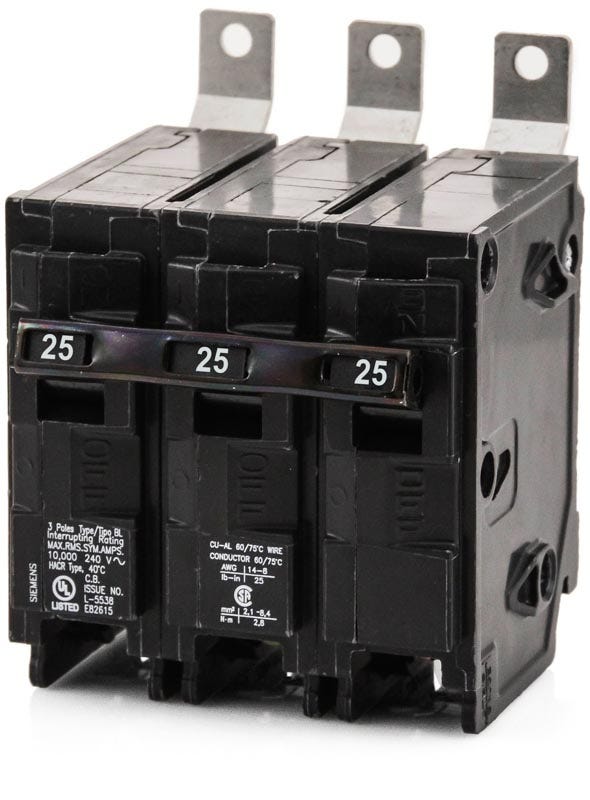

SIEMENS B325

B00CRKWXCE

ITE B325

ITE B325zoom

Attributes

Key Value
(3P) Three PolePole
1.5Width (in)
14-6 AWGWire Gauge
2.5Length (in)
240VACVoltage (V)
25 AmpAmperage
25AAmp Rating
3.75Height (in)
AC Voltage Rating240V AC
Actuator TypeToggle
Amperage25A
Amperage Rating25 A
Amps25 A
ApplicationElectrical Distribution
ASINB007ICVEKS
B325Stock Code
Batteries Required?No
BOLT-ONBreaker Style
BrandSiemens
Catalog NumberB325
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeStandard
Connection typeBolt-On
Continuous current / ra.25 A
Country of OriginMX, Mexico
CSA, UL ListedUL Listed
DC Voltage RatingNot Rated
Depth12.8 in
Depth [in]:3 in
Design of the overload .THERMAL-MAGNETIC
Design of the product:BL
Dimensions12.8 in L x 4.4 in W x .
DisplayB325 BREAKER 25A 3P 240.
Estimated Weight1.00
For Use WithSiemens P1 Panelboards
Frame Size125A/BL
Frequency Rating60 Hz
Gtin783643263703
GTIN00783643263703
Height3.7 in
Height [in]:3.5625 in
Interrupt Rating10 kA
ItemMiniature Circuit Break.
Item Package Quantity1
Length3.7 in
Length (Straight Wirewa.3.7 in
Made in USANo
ManufacturerSiemens Industry, Inc.,.
Max. AIR Rating10kA at 240V AC
Max. Wire Size6 AWG
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
MountingBolt On
Mounting typePanel
Mounting TypeBolt-On
MpnB325
Number of Poles3
Number Of Poles:3
Part NumberB325
Phase3
SeriesBL
SiemensBrand
Size of the circuit-bre.BL(125A)
StandardULLISTED/CSA/NOMCERTIFI.
Standard:ULLISTED/CSA/NOMCERTIFI.
StandardsHACR Rated, UL Listed
Suitability for operati.ELECTRICALDISTRIBUTION
Supply voltage frequenc.TRUE
Temperature Rating (Deg.40 deg C
Terminal ConnectionLug
Trip TypeThermal/Magnetic
TypeType BL Low Voltage
UNSPSC39121601
Upc783643263703
UPC783643263703
Voltage240VAC
Voltage / between phase.240 V
Voltage Rating240 VAC
Width4.4 in
Width [in]:3 in
Wire Size14 to 6 AWG, 12 to 6 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommostelectric.comB32577.911In StockSiemens77.91 @ 1
simplybreakers.comB32589.991In StockSiemens \/ ITE89.99 @ 1
thumbzoomAllfusesB325102.291163Siemens102.29 @ 1
steinerelectric.com93181107.61In StockSiemens107.6 @ 1
SuperbreakersB325114.81In StockSiemens / ITE114.8 @ 1
thumbzoomsuperbreakers.comB325114.81In StockSiemens114.8 @ 1
thumbzoomsuppliesdepot.comB325119.951In StockSIEMENS119.95 @ 1
thumbzoomstandardelectricsupply.com259867158.261In StockSiemens158.26 @ 1
Dale-ElectricB325196.81In StockSiemens Industry, Inc.196.8 @ 1
thumbzoomindustrialzone.comB325293.561In StockSiemens0.95293.56 @ 1
thumbzoombulbspro.comB325318.311In StockSiemens318.31 @ 1
thumbzoomZoroG2019123319.351In Stock26Siemens0.94319.35 @ 1
thumbzoomKelly HayesB325329.841In StockSiemens329.84 @ 1
kirbyrisk.com559884352.091In StockSiemens352.09 @ 1
thumbzoomAmazonB007ICVEKS356.271In StockSiemens356.27 @ 1
AmazonTPB007ICVEKS357.051In Stock5Siemens357.05 @ 1
thumbzoommotorsandcontrol.comB325422.241In StockSiemens1.0422.24 @ 1
Grainger6EVU8555.0120SIEMENS555.0 @ 1
thumbzoomcrescentelectric.com123800608.231In StockSiemens608.23 @ 1
