TE Connectivity / AMP 3-1971906-5

B00WDVM1X8

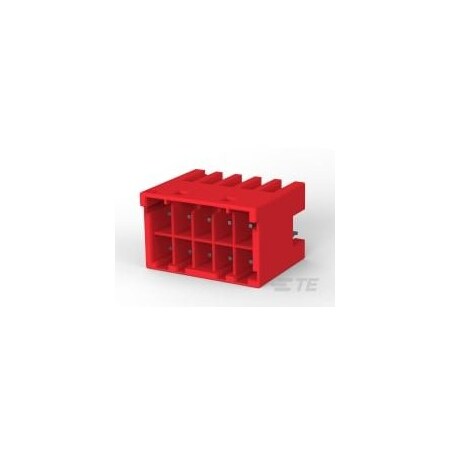

3-1971906-5, Conn Wire to Board HDR 10Power POS 3.3mm Solder ST Top Entry Thru-Hole Box/Tray (1 Items)

3-1971906-5, Conn Wire to Board HDR 10Power POS 3.3mm Solder ST Top Entry Thru-Hole Box/Tray (1 Items)zoom

Attributes

Key Value
Alternate Part No.571-3-1971906-5
ApplicationWire-to-Wire
ApplicationsGeneral Purpose, Indust.
Base Product Number1971906
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact Length - Mating-
Contact Length - Post0.118" (3.00mm)
Contact MaterialCopper Alloy, Brass
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating4 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 10POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA115857-ND
Fastening TypeLatch Holder
FeaturesBoard Guide
Housing MaterialNylon
Ingress Protection-
Insulation ColorRed
Insulation Height0.561" (14.25mm)
Insulation MaterialPolyamide (PA66), Nylon.
Latching TypeInertia Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.3-1971906-5
Manufacturer Product Nu.3-1971906-5
Manufacturer Standard L.15 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-30?C ~ 105?C
Overall Contact Length0.575" (14.60mm)
PackageTray
Pitch3.3 mm
Pitch - Mating0.130" (3.30mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeConnectors
Row Spacing - Mating0.205" (5.20mm)
SeriesGrace Inertia, GIC, GI3.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationKinked Pin, Solder
Termination StyleThrough Hole
TradenameGRACE INERTIA
TypePlug Housing
Voltage Rating250 V, 250VAC
Wire Gauge20-24

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-1971906-50.2414007128TE CONNECTIVITY/AMP BRAND0.241 @ 400
Onlinecomponents.com3-1971906-50.3026172464TE Connectivity / AMP Brand0.3026 @ 250
thumbzoomZoroG2010429050.3321600250Te Connectivity0.33 @ 21600
thumbzoomDigi-Key41721490.364007128TE Connectivity AMP Connectors0.36 @ 400
Newark96Y11110.38117128AMP - TE CONNECTIVITY0.381 @ 250
thumbzoomswatee.com3-1971906-50.741506TE Connectivity0.74 @ 250
