Crimp Supply 4-1564518-1

B09SJ2DVHN

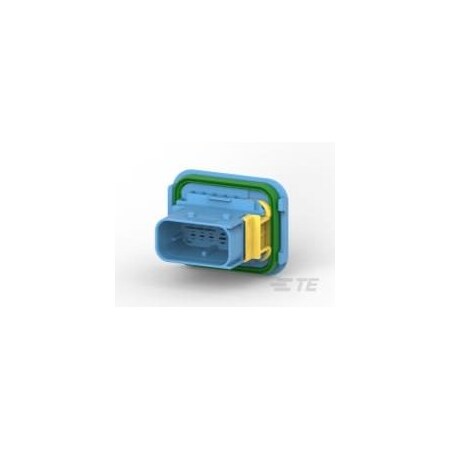

Deutsch - 4-1564518-1-4-1564518-1 - (Pack of 1)

Deutsch - 4-1564518-1-4-1564518-1 - (Pack of 1)zoom

Attributes

Key Value
Base Product Number1564518
Body MaterialPBT GF
Cable Exit AngleOther
CategoryConnectors, Interconnec.
Centerline (Pitch)4, 6, .157, .236
Circuit ApplicationSignal
ColorBlue
Connector Position Assu.No
Connector StyleHousing for male termin.
Connector SystemWire-to-Wire
Connector TypePlug
Contact TerminationCrimp
Contact TypeTab
Degree of ProtectionIP67
DescriptionCONN PLUG HSG 10POS
Detailed Description10 Rectangular Connecto.
Digi-Key Part Number4-1564518-1-ND
Fastening TypeSlide-On
FeaturesMounting Flange, Sealed.
Flammability RatingUL 94 V-0
Height1.894 in
Height?:</span> .48.1?mm?[?1.894?in?]
Hybrid ConnectorYes
IP RatingIP67
Length50.5 mm
Length?:</span> .50.5?mm?[?1.988?in?]
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.4-1564518-1
MaterialGlass-Filled PBT
Mating Tab Width.063, .11, 1.6, 2.8
Max. Temp.140?C
Max. Voltage42V DC
MfrTE Connectivity AMP Con.
Mounting FeatureWithout
Mounting TypePanel Mount
Nominal Voltage Archite.12, 24, 42, 60
NoteContacts Not Included
Number of Contacts10
Number of Positions10
Number of Rows2
Operating Temperature-40?C ~ 140?C
Operating Temperature R.-40 ? 140??C?[?-40 ? 28.
Operating Voltage60
PackageBulk
Package Quantity1
Packaging MethodCarton
Packaging Quantity220
Part StatusActive
Pitch-
PolarizedYes
Primary Locking FeatureOn the Terminal
Product StatusActive
Row Spacing0.236" (6.00mm)
Row-to-Row Spacing&thin.6?mm?[?.236?in?]
SealableYes
SeriesHeavy Duty Sealed Conne.
ServiceableYes
Strain ReliefNo
Terminal Position Assur.Yes
UL Flammability RatingUL 94V-0
Width1.567 in
Width?:</span> .39.8?mm?[?1.567?in?]

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark99X24332.89220034TE CONNECTIVITY2.89 @ 1000
TE Connectivity4-1564518-13.47134TE Connectivity (TE)3.47 @ 1
thumbzoomDigi-Key542826315.1117TE Connectivity AMP Connectors15.11 @ 1
thumbzoomZoroG0009575618250.0134Te Connectivity8250.0 @ 1
