Walter Tools WNMG080404-NF WPP01

B017BJ09OO

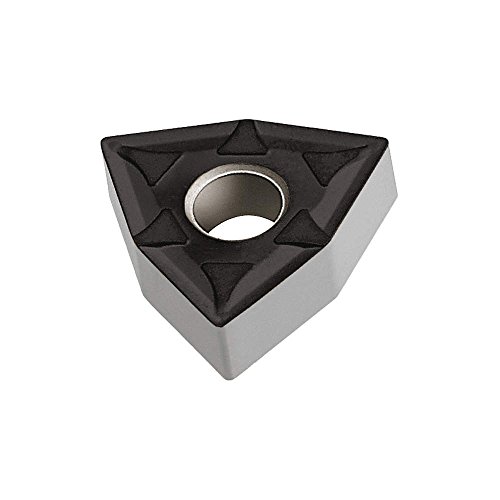

Walter Tools WNMG080404-NF WPP01 Carbide Tiger-Tec Negative Indexable Turning Insert, 1/64" Corner Radius, 1/2" IC, 3/16" Thick, 0.016" - 0.079" Depth of Cut (Pack of 10)

Walter Tools WNMG080404-NF WPP01 Carbide Tiger-Tec Negative Indexable Turning Insert, 1/64" Corner Radius, 1/2" IC, 3/16" Thick, 0.016" - 0.079" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeWNMG431-NF WPP01
ANSI NumberWNMG332
Cast Iron (K) Compatibi.Yes
Chip-BreakerYes
Chip-Breaker CodeNF
Clearance Angle0 Degrees
CoatingCVD
Coating ProcessCVD
Corner Radius0.40mm
Country of Origin (subj.Germany
Cutting ApplicationFinishing, Turning
Cutting DirectionNeutral
Cutting Edge Length8.70mm
Depth of Cut0.40 to 2.00mm
Feed TypeHigh
Finish - MachiningTiCN+Al2O3+TiN
For Use WithToolholders, Boring Bars
GradeWPP01
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle1/2"
Insert ApplicationFinishing
Insert Holding TypeStraight Hole
Insert MaterialCarbide
Insert ShapeTrigon
Insert Size431
Insert StyleWNMG
Insert Thickness0.1880"
ISO NumberWNMG080404-NF WPP01
ItemTurning Insert
Manufacturer GradeWPP01
Material - MachiningCarbide
Measurement SystemMetric
Mounting Hole Dia.0.203"
Mounting StyleClamp
No. of Edges2
Non Ferrous (N) Compati.No
Nose Radius0.0160"
Primary Material Applic.Steel
Primary Material Applic.P
RakeNegative
Relief Angle0 Degrees
Secondary Material Appl.Cast Iron
Secondary Material Appl.K
ShapeTrigon
Stainless (M) Compatibi.No
Steel (P) CompatibilityYes
Super Alloy (S) Compati.No
Thickness4.76mm
Through Hole Inside Dia.5.16mm
Wiper InsertYes
Workpiece CompatibilityCast Iron (K), Steel (P)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG793112617.0310107Walter Valenite17.03 @ 10
