WIDIA 5697900

B01M2ABYWK

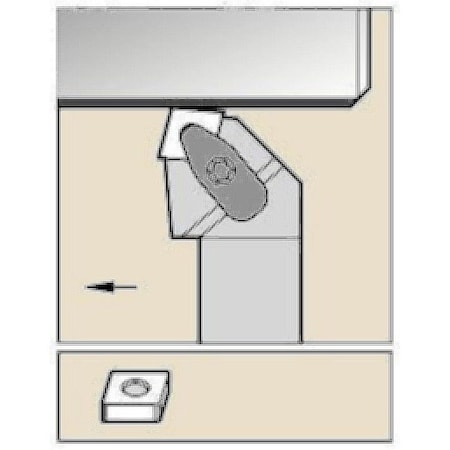

WIDIA DCRNL2525M12KC04 DCRN D-Style Clamping Toolholder for Negative Inserts, 15? Angle, Steel, 25mm Square Shank, Left, 150mm Length

WIDIA DCRNL2525M12KC04 DCRN D-Style Clamping Toolholder for Negative Inserts, 15? Angle, Steel, 25mm Square Shank, Left, 150mm Lengthzoom

Attributes

Key Value
ANSI CodeDCRNL2525M12KC04
Approach Angle75 Degrees
Compatible Hardware15IP Clamp Screw, 15IP .
Coolant FedNon-Coolant Through
Cutting ApplicationFacing, Turning
Cutting DirectionLeft Hand
Cutting Length12.8960mm
Insert Clearance Angle0 Degrees
Insert Holding TypeClamp and Lock Pin
Insert Shape80 Degrees Diamond
Insert Size120408
Insert StyleCN
ISO NumberDCRNL2525M12KC04
ItemIndexable Turning Toolh.
MaterialSteel
Number of Inserts Requi.1
Overall Length150.00mm
RakeNegative
ShankSquare
Shank Height25.00mm
Shank Length119.20mm
Shank Width25.00mm
Side Cutting Edge Angle15 Degrees
Toolholder StyleDCRN

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG379396289.131In Stock8Widia1.7689.13 @ 1
