5475C SL001

mpn5475C SL001
brandname: Alpha Wire
manufacturername: Alpha Wire

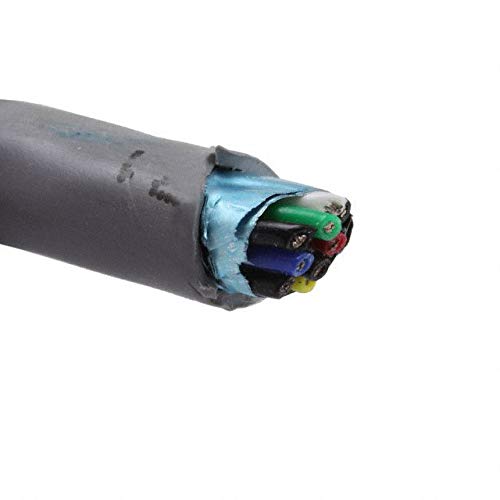

"Alpha Wire 5475C SL001 Cable, Multipair; 5; 24 AWG; 7/32; Aluminum/Polyester Foil; 0.27 in.; 0.010 in."

"Alpha Wire 5475C SL001 Cable, Multipair; 5; 24 AWG; 7/32; Aluminum/Polyester Foil; 0.27 in.; 0.010 in."

zoom

PartNumber: 5475C SL001
Model: 5475C SL001
Manufacturer: Alpha Wire
Label: Alpha Wire

Attributes

Key	Value
Application	For communication and c.
Cable Type	Twisted Pair, Multi-Pair
Category	Cables, Wires
Conductor Insulation	Poly-Vinyl Chloride (PV.
Conductor Material	Tinned Copper (TC), Cop.
Conductor Size	24 AWG
Conductor Strand	7/32
Configuration	5 Pair
Country of Origin (subj.	Unknown
Family Name	Xtra-Guard Performance .
Features	Drain Wire
Insulation Material	Polyvinyl Chloride (PVC)
Insulation Thickness	0.010 in.
Jacket (Insulation) Dia.	0.270" (6.86mm)
Jacket (Insulation) Mat.	Poly-Vinyl Chloride (PV.
Jacket (Insulation) Thi.	0.0350" (0.889mm)
Jacket Color	Gray, Slate
Jacket Material	Polyvinyl Chloride (PVC)
Jacket Thickness	0.035 in.
Length	1000.0' (304.8m), 1000 .
Mfr	Alpha Wire
Nominal Impedance	50 Ohms
Number of Conductors	10, 10 (5 Pair Twisted)
Number of Pairs	5
Operating Temperature	-20?C ~ 80?C, 75 ?C
Outer Diameter	0.27 in.
Package	Spool
Packaging	Coil
Part Status	Active
Product Header	Multipair Foil Shielded.
Ratings	UL Style 2464
Series	Xtra-Guard 1 Series, -
Shield	Aluminum/Polyester Foil
Shield Coverage	100%
Shield Material	Aluminum/Polyester Tape.
Shield Type	Foil
Shielding	Foil
Standards	CA Prop 65 ; CSA CMG ; .
Stranding	7x32
Temperature, Rating	-20 to 80 C
Usage	-
Voltage	300 V
Voltage Rating	300 V
Wire Gauge	24 AWG
Wire Size	24 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	alldataresource.com	A5475C-ALT	2.76	1	36		Alpha Wire		2.76 @ 1
	AI Consolidated	5475C-SL001-ALPHA-WIRE	741.33	1	36		Alpha Wire	39.603	741.33 @ 1
	RS Delivers	126-5236	770.712	1	1		Alpha Wire		770.712 @ 1
	Digi-Key	5475CSL001-ND	948.33	1	36		Alpha Wire		948.33 @ 1
	Zoro	G1164668	972.59	1	36	30	Alpha Wire		972.59 @ 1
	absupply.net	ALPHA WIRE CMP. 5475C SL001	1071.25	1	36		Alpha Wire		1071.25 @ 1
	us.rs-online.com	70137874	1375.19	1	5		Alpha Wire		1375.19 @ 1
	Newark	92F6847	1495.5	1	In Stock		ALPHA WIRE		1495.5 @ 1
