ASHCROFT 4TA56

B0837V73VN

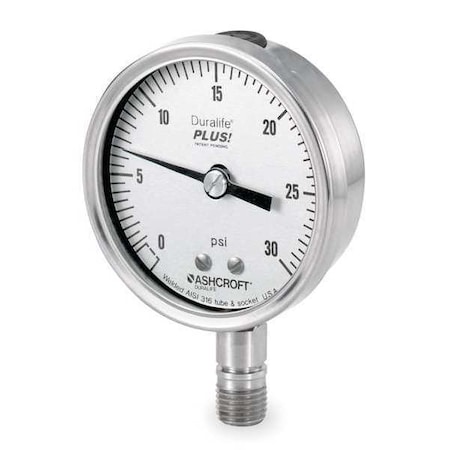

ASHCROFT 4TA56 1/4IN Bottom Connection, Stainless Steel, 30PSI, Pressure Guage, 2-1/2IN FACE

ASHCROFT 4TA56 1/4IN Bottom Connection, Stainless Steel, 30PSI, Pressure Guage, 2-1/2IN FACEzoom

Attributes

Key Value
Accuracy+/-1.0%, +/- 1% of Span
Accuracy GradeASME B40.100 Grade 1A
Accuracy ScaleFull Scale
Ambient Operating Tempe.-40 Degrees to 150 Deg.
ApplicationRefrigeration, Autoclav.
Basic Gauge Case Materi.Stainless Steel
Bezel Material304 Stainless Steel
Bezel Mounting TypeBayonet
Blowout Safety BackNo
BrandAshcroft
Burst Pressure1,400 psi
Case ColorSilver
Case ColourMetallic
Case ConstructionWelded Joint
Case Depth1.25 in
Case Diameter2.75 in
Cleaned for Oxygen Serv.No
ColorSilver, White/Silver
Compatible Process MediaDeionized Water
Connection LocationLower
Connection Size1/4 in NPT
Current Stock97
Dial ColourWhite
Dial Face MaterialAluminum
Dial Size (In.)2-1/2
Diameter2-3/4"
Dry Dampening FeaturePLUS! Performance
Field FillableNo
Freeze Resistant Moveme.No
Gauge ApplicationPumps and Compressors, .
Gauge Case LiquidNone
Gauge Case Material304 Stainless Steel
Gauge Connection Size1/4 in
Gauge Connection TypeMNPT
Gauge Nominal Dial Size2 1/2 in
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 30
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugYes
International ShippingNo
IP/NEMA RatingIP54 (Plug Vented), IP6.
ItemIndustrial Pressure Gau.
Lead TimeExpected to ship in 1-2.
Lens MaterialPolycarbonate
Liquid-Filled CaseNo
Manufacturer Warranty L.5 yr
Manufacturers Warranty .5 yr
Material304 Stainless Steel
Max. Pressure (PSI)30
Mounting TypeStem-Mount
Movement Material304 Stainless Steel
Mpn251009SW02LXLL30
Nominal Dial Size2 1/2 in
Non-SparkingNo
Panel-MountableNo
Pointer ColourBlack
Pointer MaterialAluminum
Pressure Gauge TypeIndustrial Pressure Gau.
Pressure Range TypePressure
Primary Pressure Range0 to 30
Primary Pressure Scale .Black
Primary Scale Minor Gra.0.5
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/4 in
Process Connection TypeNPT
Process Temperature Ran.-40 Degrees to 200 Deg.
Range0 to 30 psi
Removable BezelYes
Scale TypeSingle
Sensor Material316L Stainless Steel
Sensor TypeBourdon Tube
Series1009
SKUZO-G0031665
Socket Material316L Stainless Steel
StandardsASME, CRN, ROHS
SubCategoryTest Instruments
UPC759426720459
Vibration ResistanceDry Case Vibration-Damp.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG003166582.951120Ashcroft0.382.95 @ 1
thumbzoomsimsupply.comZO-G003166593.59197Ashcroft93.59 @ 1
AmazonTPB007I9QO9M102.361In Stock2ASHCROFT102.36 @ 1
AmazonUNKB007I9QO9M102.361In StockASHCROFT102.36 @ 1
thumbzoomsustainablesupply.comC1758768102.721In StockAshcroft0.3102.72 @ 1
thumbzoomStanios Industrial Supply251009SW02LXLL30122.181In Stock27Ashcroft122.18 @ 1
thumbzoomRaptor SuppliesAD9JVZ163.41243751In StockASHCROFT163.4124375 @ 1
