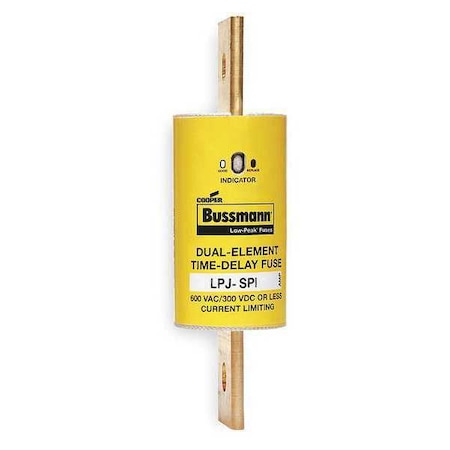

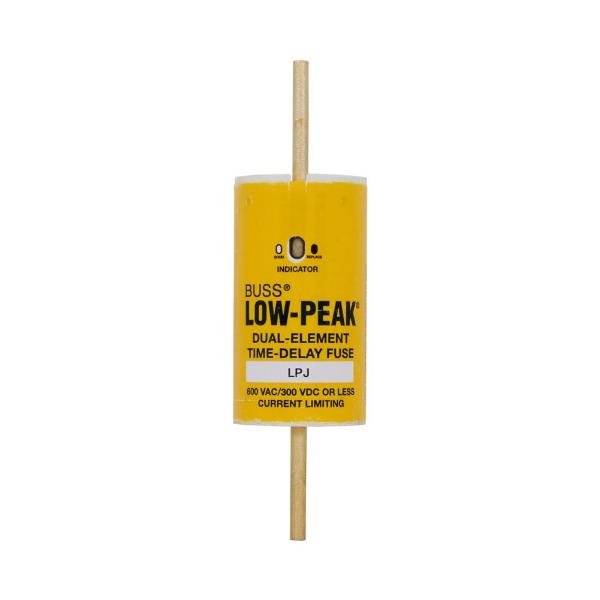

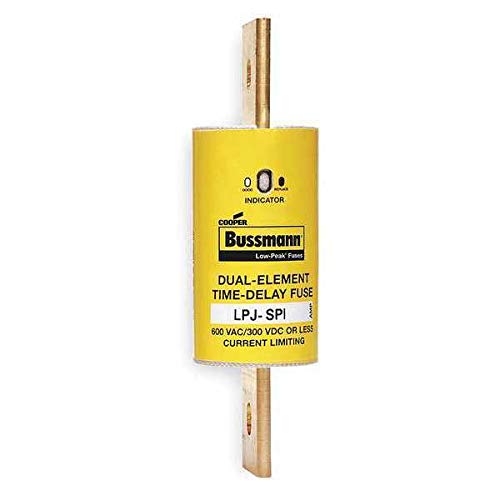

Eaton Bussmann LPJ-150SPI

B084MBY5X6

150A Time Delay Melamine Class J Fuse 600VAC/300VDC

150A Time Delay Melamine Class J Fuse 600VAC/300VDCzoom

Attributes

Key Value
AC Voltage Rating600V AC
Amperage150
Amperage Rating150
Amps150, 150A
ApplicationInd Facilities & Factor.
ApprovalCE, CSA, UL
AvailabilityIn Stock, ships within .
Body MaterialMelamine
Body StyleBlade
BrandEaton Bussmann series, .
Catalog NumberLPJ-150SPI
ClassJ, Class J
Compatible Fuse Block S.CH30J, CH60J, J600, JM6.
ConnectionBolted blade end X bolt.
Connection TypeBolted blade end X bolt.
Country of OriginMX - Mexico, Mexico
Current Rating150 A
Current Stock8
DC Voltage Rating300V DC
DepthNot Applicable
Diameter1-5/8"
Dimensions0.5625 x 2 in
ECCNEAR99
ElementDual
Equivalent Brand and Se.Bussmann LPJ-I, Littelf.
Equivalent SeriesAJT, JTD-ID, LPJ-I
Family / StyleLPJ
Fits Fuse Block StyleNonrejection
For Use WithBranch Circuit Breaker .
Frame TypeLPJ
Fuse Amps150A
Fuse Dimension7.13 L x 2 in. Dia.
Fuse Interrupt Rating300 kAIC at 600 Vac|100.
Fuse Size5-3/4" L x 1-5/8" dia
Fuse TypeTime Delay, Current-Lim.
Height0.81 in.
International ShippingNo
Interrupt Rating300 kAIC at 600 Vac|100.
Interrupt Rating AC300 kA
Interrupt Rating DC100 kA
Interrupting Rating300kAIC at 600VAC, 100k.
ItemFuse
Item TypeFuse
Length5-3/4", 2.25 in.
Length (Straight Wirewa.5 3/4 in
Made in USANo
ManufacturerEaton Bussmann
MaterialHAWA
MountingBlade
Mounting TypeHolder
MpnLPJ-150SPI
MPNLPJ-150SPI
OpeningTime-Delay, Slow-Blow
Poles1
Promotion RestrictionNot eligible for promot.
Rated Voltage600V ac, 300V dc
Response Time10 sec at 500%
SeriesLPJ-I, Bussmann
ShapeRectangular
Size1.63 In Diameter X 5.75.
SKUCU-3241425236
Special FeaturesIndicating, High in-rus.
SpeedTime Delay
StandardCE Marked,RoHS Compliant
StandardsCE/UL-Special Purpose G.
Sub BrandBussmann Series
SubCategoryElectrical
UNSPSC39121626
UPC051712627993
Upc51712627993
UPC Code051712627993
Visual IndicationIndicating
Voltage600VAC, 300VDC
Voltage Rating600 Vac, 300 Vdc
Volts AC600
Volts DC300
Width0.81 in., Not Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0078S0GM4103.741In Stock2BUSSMANN103.74 @ 1
thumbzoomAllfusesLPJ-150SPI130.691In StockBussmann130.69 @ 1
thumbzoomsuperbreakers.comLPJ-150SPI174.01In StockEaton174.0 @ 1
thumbzoomZoroG3464395196.11In StockEaton Bussmann0.77196.1 @ 1
thumbzoomWalker IndustrialLPJ-150SPI199.841In Stock10Cooper Bussmann199.84 @ 1
steinerelectric.com842350220.911In StockBUSSMANN220.91 @ 1
thumbzoomAI ConsolidatedLPJ-150SPI-BUSSMANN223.261In StockBussmann Eaton Cooper Fuses0.75223.26 @ 1
WaldomEATON LPJ-150SPI239.041In StockEaton239.04 @ 1
thumbzoomsimsupply.comCU-3241425236253.691In StockBussmann253.69 @ 1
thumbzoomCarlton Bates Company05171262799255.291In StockEATON BUSSMANN SERIES255.29 @ 1
thumbzoomPlatt.com0962241259.161In StockEaton/Bussmann Series259.16 @ 1
thumbzoomsustainablesupply.comC1177034259.771In StockEaton0.77259.77 @ 1
thumbzoombscsource.comLPJ150SPI273.991In StockCooper Bussmann273.99 @ 1
thumbzoomDigi-KeyLPJ-150SPI-ND285.011In StockEaton - Bussmann Electrical Division285.01 @ 1
Graybar25047281300.70881In StockBussmann (Eaton)300.7088 @ 1
thumbzoomRadwellLPJ-150SPI360.0118BUSSMANN FUSETRON360.0 @ 1
standardelectricsupply.com2331998400.671In StockBussmann400.67 @ 1
thumbzoomcrescentelectric.com191920408.641In StockEaton Bussmann series408.64 @ 1
thumbzoomNational Supply Network92129246449.551In StockCooper Bussmann449.55 @ 1
thumbzoomkempstoncontrols.co.ukLPJ-150SPI477.41013451In StockBussmann477.4101345 @ 1
us.rs-online.com71460838507.311In StockBussmann by Eaton507.31 @ 1
thumbzoomRaptor SuppliesAB8XDX521.07617251In StockBUSSMANN521.0761725 @ 1
Newark19K5437543.561In StockEATON BUSSMANN543.56 @ 1
Airline HydraulicsBUSSMANN LPJ-150SPI607.211In StockCooper Bussmann607.21 @ 1
