A O Smith B236

B009CI090M

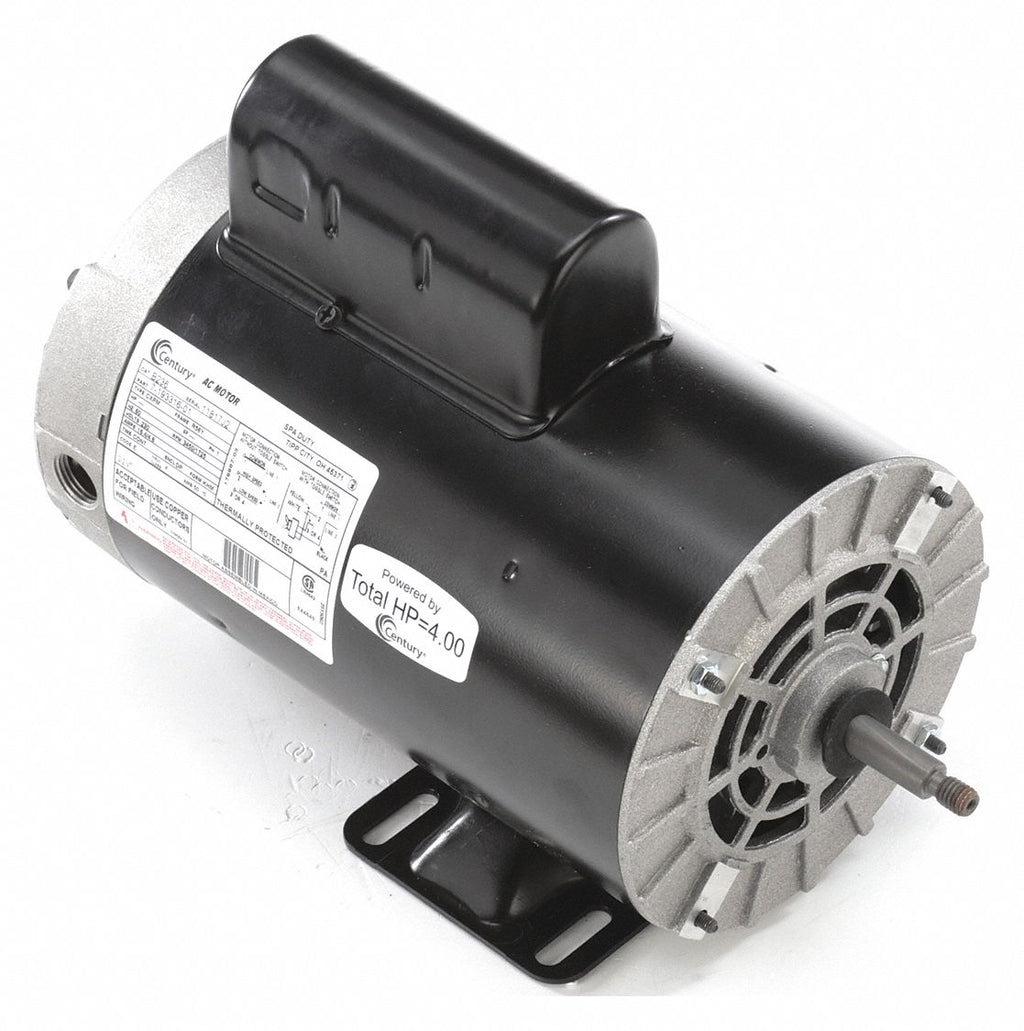

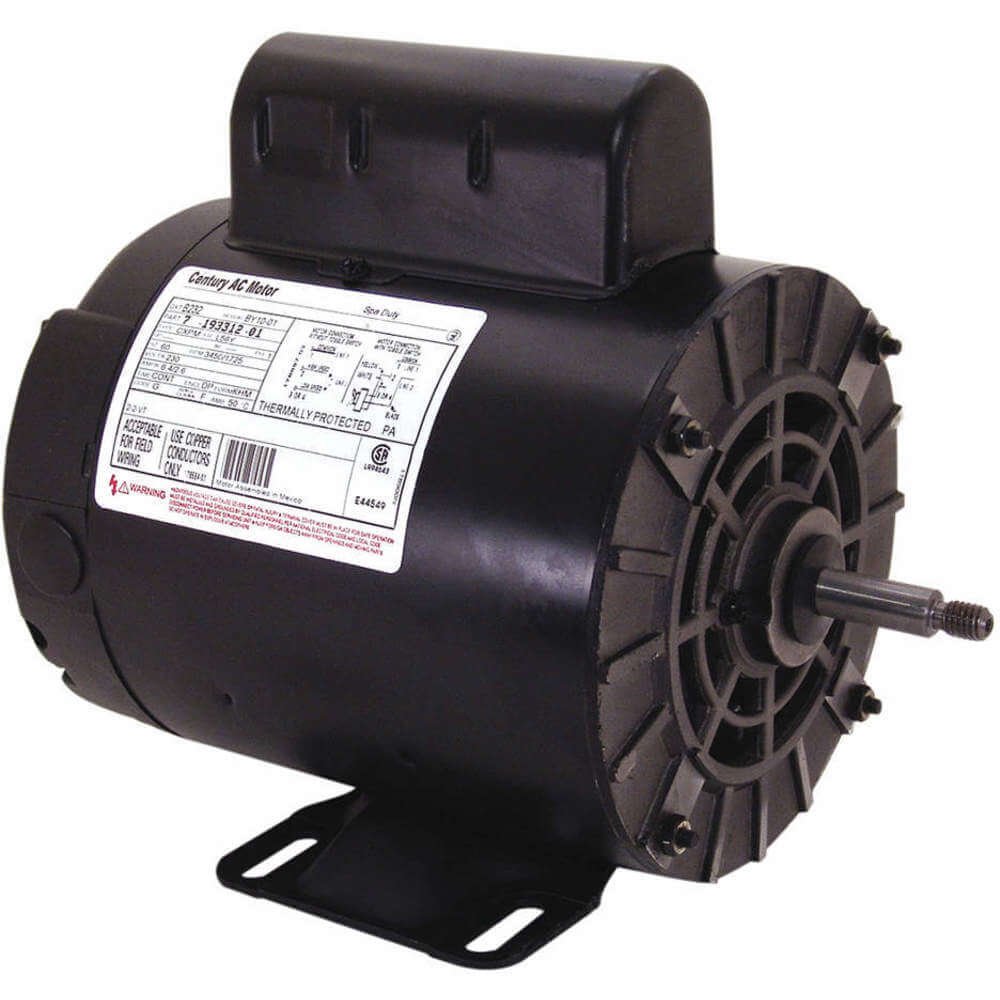

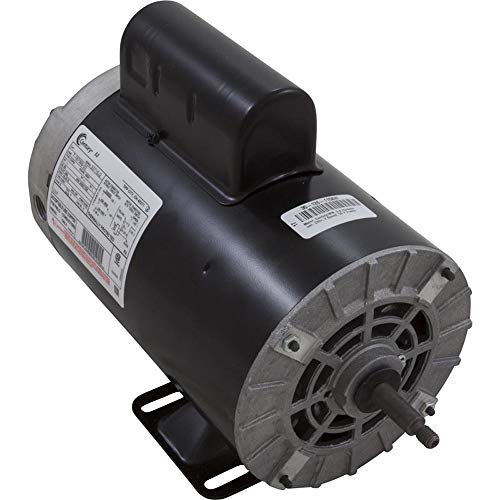

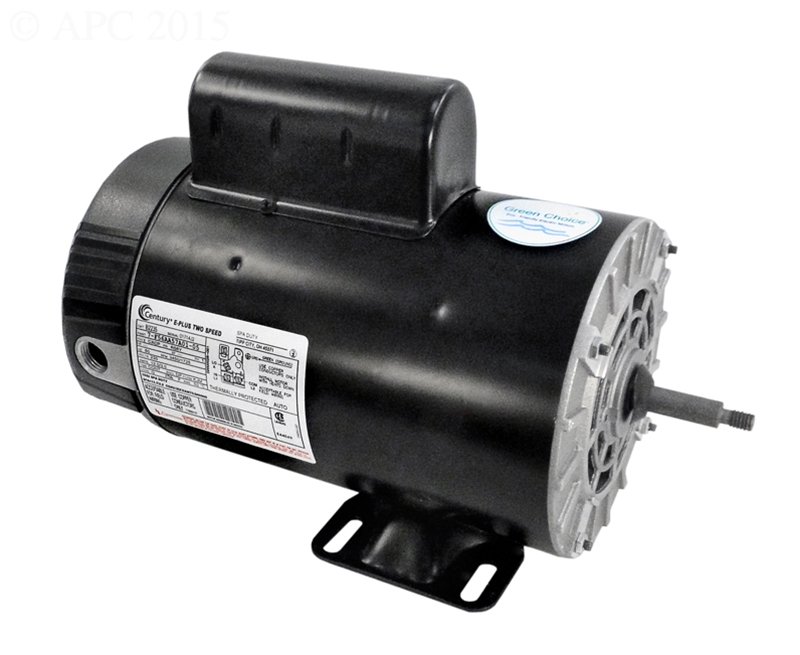

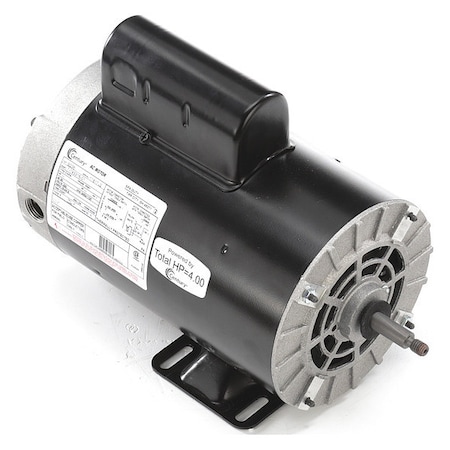

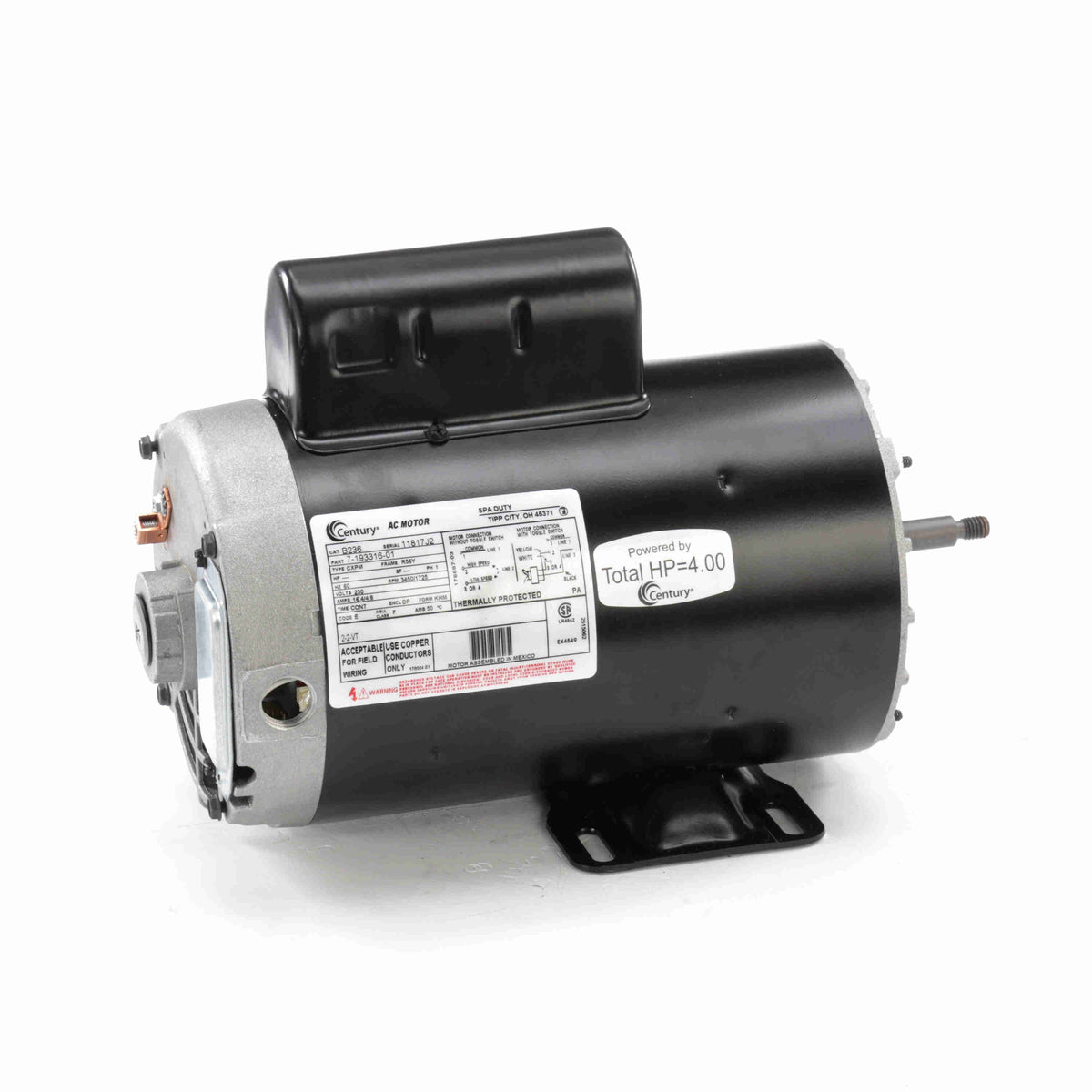

Motor, Century/WW, 5.0 Horsepower, 230v, 2 Speed, 56 Y Frame

Motor, Century/WW, 5.0 Horsepower, 230v, 2 Speed, 56 Y Framezoom

Attributes

Key Value
Amps16.4/4.8
B236 is listed in Centu.A.O. Smith 193316, Cent.
BearingsBall
Body Dia.6.6 in
Bolt Circle Dia.5 13/16 in
CapacitorIncluded
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
Frame56Y
Full Load Amps16.4/4.8
Height11 in
HP5, 5/8, 3/4, 5
Hz60
Insulation ClassF
ItemPool Pump Motor
Length Less Shaft11 in
Maximum Ambient Tempera.50? C
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Dripproof
Motor Flange MaterialAluminum
Motor Mounting TypeRigid Base
Motor Service Factor1
Motor Shaft RotationCCWSE
Motor Thermal ProtectionAuto
MountingRigid
Nameplate RPM3,450/1,725
Number of Speeds2
Overall Length13 3/8 in
Phase1, Single
Product TypeCapacitor Start, Capaci.
RotationCCW Pump End
RPM1725/3450
RPM Range3,001-3,600
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Dia. (In.)1/2
Shaft DiameterThreaded
Shaft Length2 5/16 in
Shaft Material303 Stainless Steel
Ship Weight46 lbs.
Thermal ProtectionAutomatic
Voltage230V AC
Volts230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoompatrickssupply.comB236396.481In StockCENTURY396.48 @ 1
Pool Supply World614297539.991In StockCentury A.O. Smith539.99 @ 1
thumbzoomgetpoolparts.comB236546.591In StockCentury Motors546.59 @ 1
thumbzoomemotorpro.comB236546.931In StockCentury46.0546.93 @ 1
thumbzoommidwestapplianceparts.comB236-AO-P579.241In StockAO Smith579.24 @ 1
thumbzoomindustrialstores.comB236605.381In Stock19Century Motors by Regal Beloit605.38 @ 1
thumbzoomsustainablesupply.comC1543455843.991In StockCentury42.55843.99 @ 1
thumbzoomRaptor SuppliesAA7XVY1040.80035151In StockCENTURY1040.8003515 @ 1
thumbzoomZoroG44828161187.981In StockCentury42.551187.98 @ 1
