- mpnSS30Q50H14
- brandname: Dodge
- manufacturername: Dodge

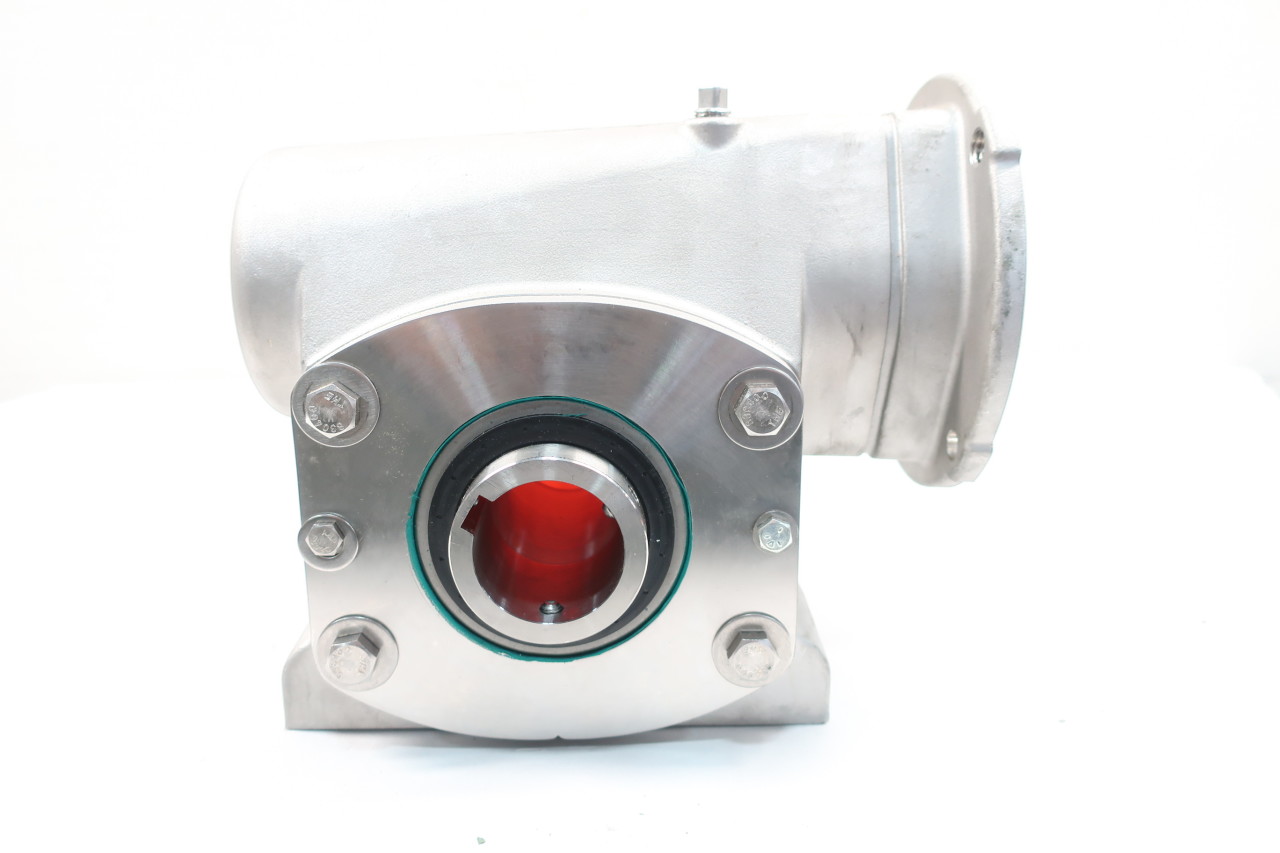

DODGE SS30Q50H14 TIGEAR-2 Right Angle Gear Reducer 1.75HP 50:1
- Brand: Dodge
- PartNumber: D721680-SS30Q50H14
- PackageQuantity: 1
- Manufacturer: DODGE
- Label: DODGE
Attributes
| Key | Value |
|---|
| Base to output center h. | 3.2500 in, 82.55 mm |
| Bore dia output | 1.9380 in, 49.225 mm |
| Bore length | 7.7600 in, 197.104 mm |
| Case size | 30 |
| Center distance (in) | 3 in, Center distance (. |
| Gearbox component type | Gearbox |
| Horsepower rating input | 1.7500 hp, 1.305 kW |
| Horsepower rating output | 1.2500 hp, 0.932 kW |
| Housing material | Stainless steel |
| Input | 140TC flange |
| Input HP | 1.75 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 7.0000 in, 177.8 mm |
| Mounting bolt pattern w. | 4.0000 in, 101.6 mm |
| Nominal ratio | 50 |
| Output | Hollow bore |
| Output bore/shaft diame. | 1.9375 in |
| Output horse power | 1.25 |
| Output shaft center to . | 6.1200 in, 155.448 mm |
| Output style | Hollow |
| Overhung load | 2300 lbf, 10230.91 N |
| Paint/coating | No |
| Rated torque output | 2257 in/lb, 2257.0 in/lb |
| Ratio | 50 to 1 |
| Seal type | Two-piece harsh duty |
| Suitable for washdown | Yes |
| Thermal horsepower rati. | 2.3400 hp, 1.745 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D721680 | 2032.94 | 1 | In Stock | | DODGE | | 2032.94 @ 1 |
 | MRO Supply | 2249123 | 3911.09 | 1 | In Stock | | Dodge | | 3911.09 @ 1 |
 | Walker Industrial | SS30Q50H14 | 3911.09 | 1 | In Stock | | Dodge | | 3911.09 @ 1 |
| factorysupplyoutlet.com | PH22JU | 4787.58 | 1 | In Stock | | DODGE | | 4787.58 @ 1 |
