- mpnWE0511HH
- brandname: Goulds Water Technology
- manufacturername: Goulds Water Technology

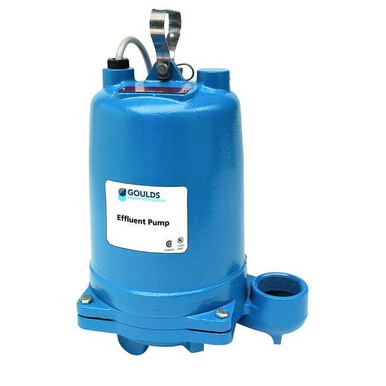

Goulds WE0511HH Submersible Effluent Pump, 1/2 HP, Single Phase, 115 V, 14.5 Max Amps
- Brand: Goulds
- PartNumber: WE0511HH
- Model: 3885
- Color: Stainless Steel
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Goulds
- Label: Goulds
Attributes
| Key | Value |
|---|
| Agency Compliance | UL 778, CSA C22.2 108 |
| Alarm Included | No |
| AMP | 14.5 |
| Amps | 14.5 |
| Base Material | Cast Iron |
| Body Dia. | 11 3/4 in |
| Body Material | Cast Iron |
| Brand | Goulds Water Technology |
| Connection | NPT |
| Connection Type | FPT |
| Cord Length | 20 ft, 20' |
| Cord Length - Pumps | 20 ft. |
| CSA Certified | Yes |
| Current Stock | 97 |
| Data | Stainless Steel Shaft S. |
| Depth | 8-1/2 in |
| Diameter | 11-3/4" |
| Discharge | 2 in FNPT, 2 in, 2" |
| Discharge Dia. | 2 in |
| Duty Cycle | Continuous |
| Flow Rate | 60 gpm |
| Flow Rate @ 10 Ft. of H. | 58 gpm |
| Flow Rate @ 15 Ft. of H. | 53 gpm |
| Flow Rate @ 150 Ft. of . | 16 |
| Flow Rate @ 20 Ft. of H. | 50 gpm |
| Flow Rate @ 40 Ft. of H. | 30 gpm |
| Flow Rate @ 60 Ft. of H. | 2 gpm |
| Flow Rate @ 80 Ft. of H. | 45 |
| Frequency | 60 Hz |
| GPM of Water @ 10 Ft. o. | 58 |
| GPM of Water @ 50 Ft. o. | 18 |
| Height | 16", 16 in |
| Horsepower | 1/2 HP |
| Housing | Cast Iron |
| HP | 1/2 |
| Hz | 60 Hz |
| Impeller | Cast Iron |
| Impeller Material | Cast Iron |
| Impeller Size | 3.88" |
| International Shipping | No |
| Item | Effluent Pump |
| Lead Time | Expected to ship in 1-2. |
| Length | 8-1/2" |
| Max Flow | 60.00 GPM |
| Max Head | 60.00 FT |
| Max Solids | 1-3/8" |
| Max Temp (?F) | 104 |
| Max. Dia. Solids | 3/4" |
| Max. Diameter Solids | 3/4 in |
| Max. Head | 61.0 ft, 61 ft |
| Max. Liquid Temp. | 140 Degrees F |
| Mechanical Seal | Silicon Carbide vs. Sil. |
| Min. Sump Pit Dia. | 18 in |
| Minimum Water Depth | 18 in |
| Mpn | WE0511HH |
| MPN | WE0511HH |
| Nominal Voltage | 110V AC |
| Overall Height | 16 in |
| Phase | 1 |
| Phase - Pumps | 1 |
| Product Type | Simple product |
| Prop 65 | WARNING: Cancer and Rep. |
| Pump Body Material | Stainless Steel |
| Pump Phase | 1 |
| Rated Voltage | 120V AC |
| RPM | 3450, 3,450 RPM |
| Series | 3885 WE |
| Shaft Seal Material - P. | Nitrile Rubber, Silicon. |
| SKU | ZO-G1108396 |
| Speed (RPM) | 3450 |
| SubCategory | Pumps |
| Switch Actuation | No Switch Included |
| Switch Electrical Conne. | No Switch Included |
| Thermal Protection | Thermal Protection |
| UL Listed | Yes |
| UPC | 69766600784 |
| Voltage | 115V |
| Volts | 115V |
| Weight | 66.000000 |
| Width | 8-1/2", 11-1/2 in |
| Width at Widest Point | 8 1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B00J3XOMZE | 944.17 | 1 | In Stock | 10 | Gould's Pumps, Inc. | | 944.17 @ 1 |
 | Zoro | G1108396 | 1017.11 | 1 | 104 | | Goulds Water Technology | 71.6 | 1017.11 @ 1 |
 | sustainablesupply.com | C1744592 | 1111.14 | 1 | In Stock | | Goulds Water Technology | 71.6 | 1111.14 @ 1 |
 | simsupply.com | ZO-G1108396 | 1240.23 | 1 | 97 | | Goulds Water Technology | | 1240.23 @ 1 |
 | andersonprocess.com | WE0511HH | 1253.7 | 1 | In Stock | 35 | Goulds Water Technology | 66.0 | 1253.7 @ 1 |
 | pumpproducts.com | WE0511HH | 1253.7 | 1 | In Stock | | Goulds | | 1253.7 @ 1 |
 | National Supply Network | 2024198 | 1574.0 | 1 | In Stock | | Goulds Pumps | | 1574.0 @ 1 |
| ferguson.com | 524732 | 1701.45 | 1 | In Stock | | Goulds Water Technology | | 1701.45 @ 1 |
 | Raptor Supplies | AC2XHE | 1746.1163655 | 1 | In Stock | | GOULDS WATER TECHNOLOGY | | 1746.1163655 @ 1 |
| grainger.ca | WWG2NVC1 | 1758.80213144 | 1 | In Stock | | GOULDS WATER TECHNOLOGY | 71.6 | 1758.80213144 @ 1 |
