knox70011555-110494.00

B07BNP69P7

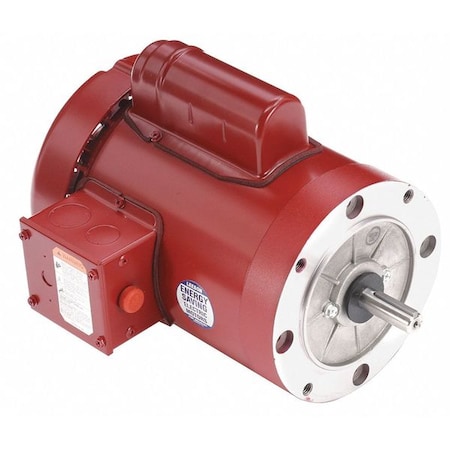

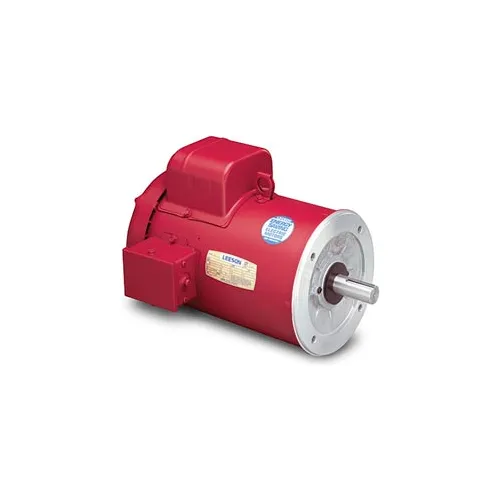

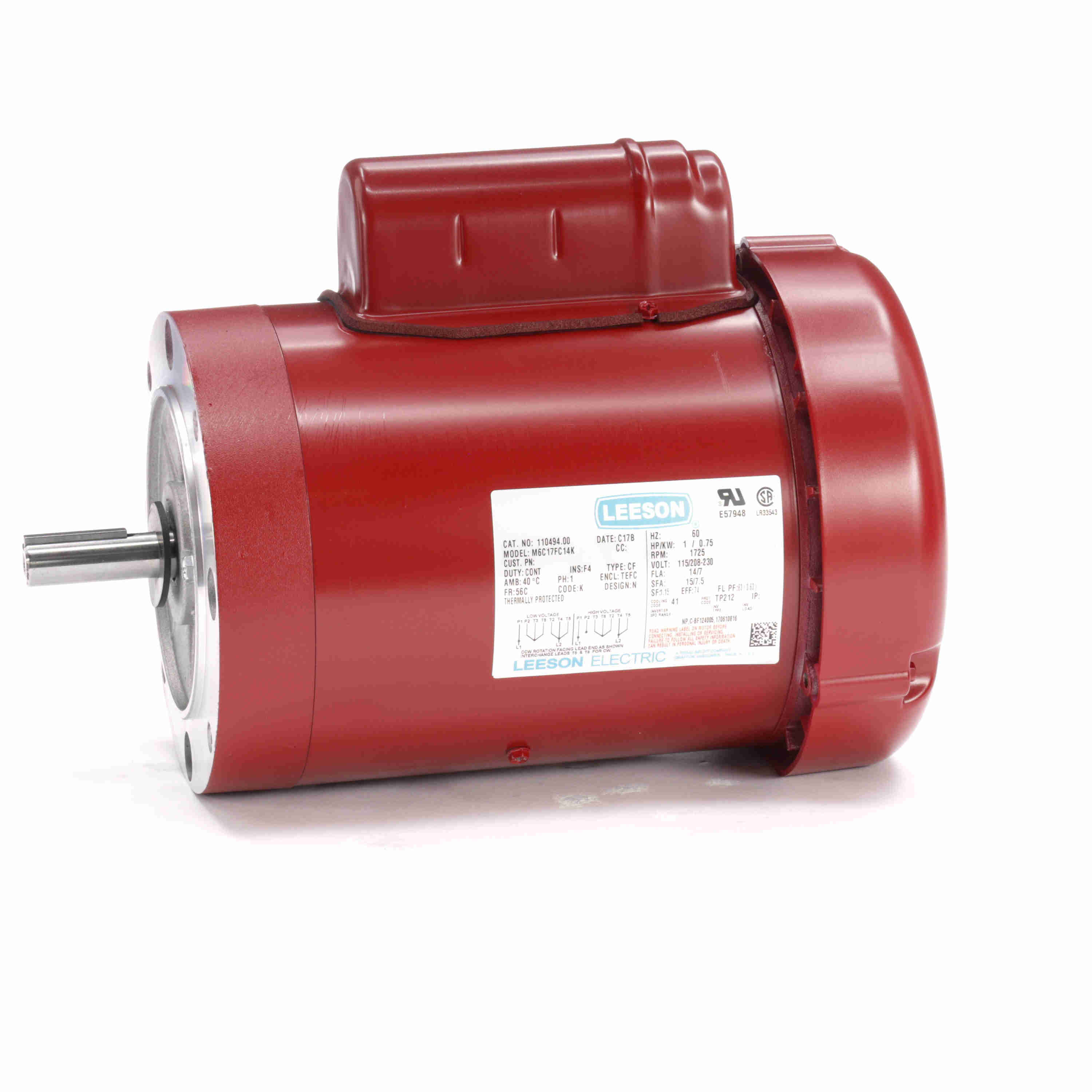

LEESON 110494.00 MOTOR 1HP 1725RPM NEW NO BOX

LEESON 110494.00 MOTOR 1HP 1725RPM NEW NO BOXzoom

Attributes

Key Value
Amperage Rating14/7 A
Amps14.0/7.1-7.0
Application TypeFarm Duty Motors, Fan a.
ApprovalsCSA, UL
Bearing TypeBall, 11.81
BearingsBall
BrandLeeson
CategoryElectric Motor
Class/GroupM6C17FC14
ColorRed
CompositionSteel
ConstructionRolled Steel
Current Stock9
Description:1HP..1725RPM.56.TEFC./V.
Dimensions11.98 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency74, 74.0%
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight33.00
Family SeriesLeeson Motors, Agricult.
FL Amps14/7
FL Efficiency74
Frame56C
Frame MaterialRolled Steel
Frame RemarksFarm Duty, Footless
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass F, F
International ShippingNo
ItemFarm Duty Motor
Item ConditionFACTORY NEW
Item Number110494.00
KW0.75
Lead TimeExpected to ship in 1-2.
Length Less Shaft10 1/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110494.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:110494.00
Model NumberM6C17FC14
Motor ApplicationFarm Duty
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length6.50"
Motor Sub ApplicationHigh Torque
Motor Thermal ProtectionManual
MountingRound, Footless
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
Mpn110494.00
Nameplate RPM1,725
NEMA Frame56C
Net Weight33 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12 in, 11.81 ", 11.98"
Part Number110494.00
Phase1, Single, 1 ph
Product SeriesAgricultural Duty
Product TypeGeneral Purpose, Capaci.
RotationSelective CCW, Reversib.
RPM1,800 RPM, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight36 lbs.
SKUZO-G4608348
Special FeaturesCapacitor Start Motors
Speed (RPM)1725
StandardsCSA (LR2025), UL (E4974.
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionManual
UPC691720009017
UPC:691720009017
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110494285.01In Stockleeson285.0 @ 1
AmazonTPB01N02VD7K341.981In Stock5Leeson / Regal Beloit341.98 @ 1
thumbzoomZoroG4608348394.99115Leeson31.6394.99 @ 1
thumbzoomMRO Supply2525516396.441In StockLeeson396.44 @ 1
thumbzoomemotorpro.com110494.00439.981In StockLeeson36.0439.98 @ 1
thumbzoommotorsandcontrol.comLE-110494.00472.23120Leeson Electric33.0472.23 @ 1
thumbzoomsimsupply.comZO-G4608348472.2519Leeson472.25 @ 1
us.rs-online.com73397282475.941In StockLeeson475.94 @ 1
thumbzoomGalco110494.00-LEES475.941In StockLeeson33.0475.94 @ 1
kscdirect.comLEE 110494.00494.131In StockLEESON ELECTRIC CORPORATION494.13 @ 1
thumbzoomWalker Industrial110494-00564.071In Stock17Leeson564.07 @ 1
thumbzoomDealers Electric110494.00587.821In StockLeeson36.0587.82 @ 1
thumbzoomRaptor SuppliesAJ2QDK1038.58799851In StockLEESON1038.5879985 @ 1
thumbzoompumpproducts.com110494.001296.291In StockLeeson1296.29 @ 1
thumbzoomGlobal IndustrialWBB2176021325.01In StockLeeson1325.0 @ 1
