Leeson 110495

B00BC8CJNK

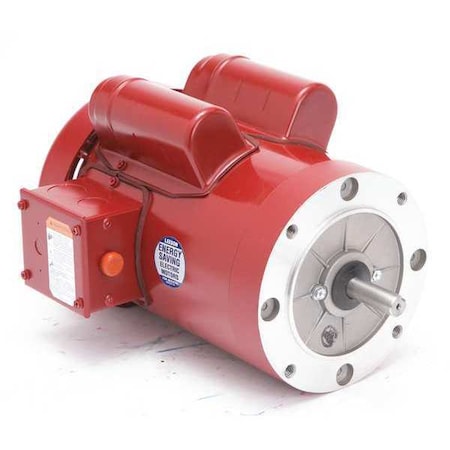

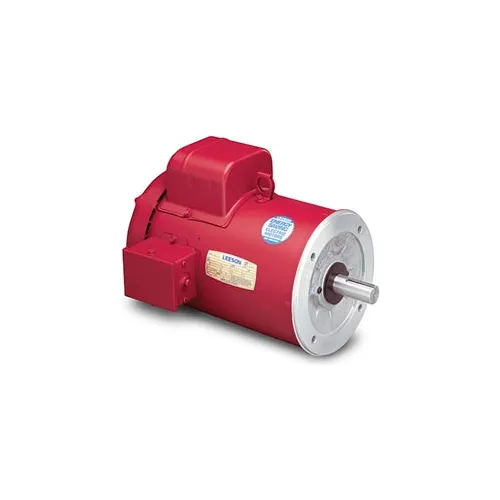

General Purpose Farm Duty Motor, 1-1/2 HP

General Purpose Farm Duty Motor, 1-1/2 HPzoom

Attributes

Key Value
Amperage Rating17.2/8.8 to 8.6 A
Amps17.2/8.8-8.6
Application TypeFarm Duty Motors, Fan a.
ApprovalsCSA, UL
Bearing Type12.31, Ball
BearingsBall
BrandLeeson
CategoryElectric Motor
Class/GroupM6K17FC3
ColorRed
CompositionSteel
ConstructionRolled Steel
Current Stock3
Description:..1 1/2HP..1725RPM.56.T.
Dimensions12.99 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency79.0%, 79
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight43.00
Family SeriesLeeson Motors, Agricult.
FL Amps17.2/8.8-8.6
FL Efficiency79
Frame56C
Frame MaterialRolled Steel
Frame RemarksFarm Duty, Footless
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp, 1.5 hp
HP1.5, 1.50, 1 1/2, 1-1/2
Hz60
Insulation ClassClass F, F
International ShippingNo
ItemFarm Duty Motor
Item ConditionFACTORY NEW
Item Number110495.00
KW1.1
Lead TimeExpected to ship in 1-2.
Length Less Shaft11 1/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110495.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:110495.00
Model NumberM6K17FC3
Motor ApplicationFarm Duty
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length7.50"
Motor Sub ApplicationHigh Torque
Motor Thermal ProtectionManual
MountingRound, Footless
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
Mpn110495.00
Nameplate RPM1,725
NEMA Frame56C
Net Weight43 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length13 in, 12.31 ", 12.99"
Part Number110495.00
Phase1, Single, 1 ph
Product SeriesAgricultural Duty
Product TypeCapacitor Start/Capacit.
RotationSelective CCW, Reversib.
RPM1,800 RPM, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight40 lbs.
SKUZO-G4608339
Special FeaturesCapacitor Start Motors
Speed (RPM)1725
StandardsCSA (LR2025), UL (E4974.
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionManual
UPC691720009024
UPC:691720009024
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110495.00337.01In Stockleeson337.0 @ 1
AmazonTPB01MAX5Q5F449.841In Stock5Leeson / Regal Beloit449.84 @ 1
thumbzoomZoroG4608339474.99124Leeson39.2474.99 @ 1
thumbzoomMRO Supply2525517475.71In StockLeeson475.7 @ 1
thumbzoomapexindustrialautomation.com110495.00494.01In StockLeeson494.0 @ 1
thumbzoomemotorpro.com110495.00527.941In StockLeeson40.0527.94 @ 1
thumbzoomsimsupply.comZO-G4608339564.5513Leeson564.55 @ 1
thumbzoommotorsandcontrol.comLE-110495.00566.64148Leeson Electric43.0566.64 @ 1
us.rs-online.com72641580571.071In StockLeeson571.07 @ 1
thumbzoomGalco110495.00-LEES571.091In StockLeeson43.0571.09 @ 1
kscdirect.comLEE 110495.00588.131In StockLEESON ELECTRIC CORPORATION588.13 @ 1
thumbzoomDealers Electric110495.00667.221In StockLeeson40.0667.22 @ 1
thumbzoomWalker Industrial110495-00671.371In Stock17Leeson671.37 @ 1
thumbzoomGlobal IndustrialWBB2176031369.01In StockLeeson1369.0 @ 1
thumbzoompumpproducts.com110495.001471.41In StockLeeson1471.4 @ 1
