Leeson Electric M1125002.00

B08HCXMV6H

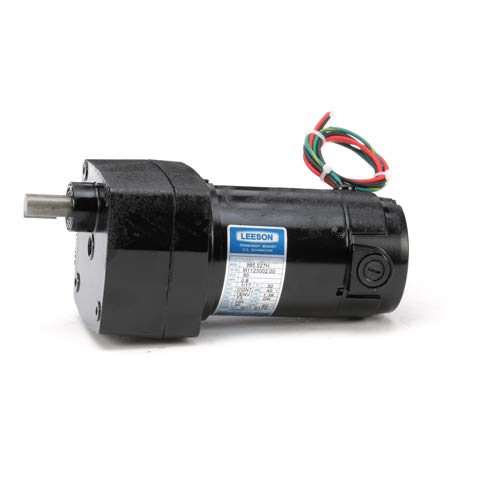

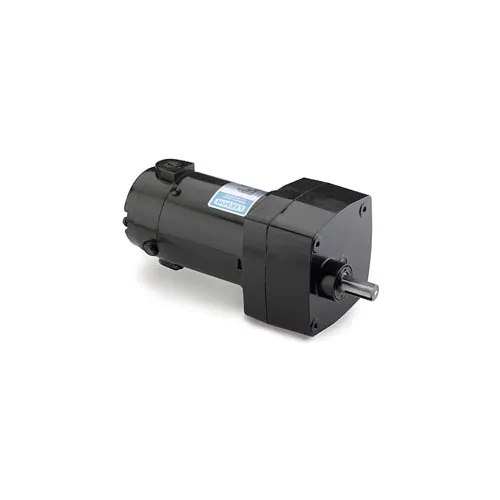

Leeson Electric M1125002.00 - PZ Series Parallel Brushed Gearmotor - Parallel Shaft, 60 :1 Ratio, 0.06 hp, 90 V, Special Mount

Leeson Electric M1125002.00 - PZ Series Parallel Brushed Gearmotor - Parallel Shaft, 60 :1 Ratio, 0.06 hp, 90 V, Special Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.985.627H
Amps0.8
ApplicationPower Transmission
ApprovalsCSA, UL
Bearing TypeBall
BearingsNeedle
CategoryElectric Motor
Current Rating0.8 A
Description:...60:1.30RPM.100LBIN.1.
Dimension X2.68 in
Dimensions8.74 in L x 3.75 in W
Drive End Bearing Size6000
Drive End Bearing TypeBall
Duty CycleContinuous
Efficiency55.1 %, 55.1
EnclosureTENV
Enclosure TypeTotally Enclosed Non Ve.
Estimated Weight9.00
Family SeriesLeeson Gearmotors, PZ S.
Frame30
Full Load Amperage0.8 A
Full Load Amps0.8 A
Gear Ratio60:1
Gear TypeHelical/Spur
Gearmotor EnclosureTotally Enclosed Nonven.
Gearmotor Mounting Posi.Horizontal or Vertical .
Gearmotor RotationCW/CCW
Gearmotor Shaft Orienta.Parallel
Gearmotor Shaft TypeHollow with Left Output.
Gearmotor TypeDC Gearmotor
Gearmotor Voltage90/180 V
GearsHelical Gear, Spur Gear
Gross Weight8.625 lbs
Horsepower1/20 hp, 0.06 HP
Horsepower Rating0.06 HP
Housing MaterialSteel
HP0.06
Input HP1/17 hp
Insulation ClassF
Insulation TypeClass F
ItemParallel Shaft Gearmoto.
Item ConditionFACTORY NEW
Item NumberM1125002.00
KW0.04
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberM1125002.00
Max. Torque100 in-lb
Maximum Speed30 RPM
MFG Part #:M1125002.00
Motor TypePermanent Split Capacit.
MountingStandard
mountingSpecial
Mounting TypeSpecial
Nameplate RPM30 RPM
Net Weight6.705 lbs
Nominal Ratio (:1)60
Nominal Torque100 in-lbs
Nominal Voltage90 V, 90 VDC
Opp. Drive End Bearing .6000
Opp. Drive End Bearing .Ball
Output Speed30 RPM, 30
Output StyleParallel Shaft
Overall Length8.74 in
Overhung Load155 lb
Part NumberM1125002.00
PhaseC, 3
Product SeriesPZ
Ratio60:1
Reversible Shaft OutputYes
Rotation TypeReversible
RPM30
SeriesPZ Series
Service Factor1, 1.0
Shaft Dia. (Dimension U)1/2 in
Shaft Diameter0.500, 1/2 in
Shaft Length1
Special FeaturesService Factor - 1
Speed30 RPM
StandardsUL Recognized, CE Certi.
Supplier:LEESON ELECTRIC CORPORA.
TypeParallel Shaft
UPC Code691720090909
UPC:691720090909
Voltage90, 90VDC
Voltage (DC)90 VDC
Volts90

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comM1125002299.01In Stockleeson299.0 @ 1
thumbzoomZoroG605687221491.9911Leeson8.58491.99 @ 1
thumbzoomGalcoM1125002.00-LEES511.361In StockLeeson8.625511.36 @ 1
thumbzoomNational Supply NetworkB234711535.781In StockLEESON ELECTRIC535.78 @ 1
thumbzoomMRO Supply227354538.051In StockLeeson538.05 @ 1
thumbzoomDealers ElectricM1125002.00538.051In StockLeeson9.0538.05 @ 1
thumbzoommotorsandcontrol.comLE-M1125002.00589.5518Leeson Electric9.0589.55 @ 1
us.rs-online.com72241283608.6411Leeson608.64 @ 1
thumbzoomGlobal IndustrialWBB234711609.01In StockLeeson609.0 @ 1
kscdirect.comLEE M1125002.00616.131In StockLEESON ELECTRIC CORPORATION616.13 @ 1
factorysupplyoutlet.comIJ54NE643.471In StockLEESON643.47 @ 1
cbtcompany.comM1125002.00653.121In StockLeeson Electric653.12 @ 1
thumbzoompumpproducts.comM1125002.00799.761In StockLeeson799.76 @ 1
