CAI - LITTELFUSE KLDR.800TXP

B07J2YYLVV

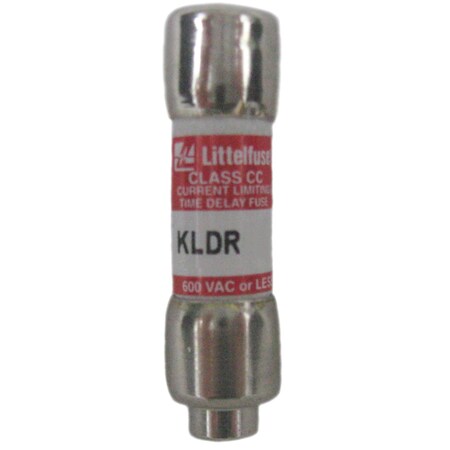

LITTELFUSE 8/10A Time Delay Melamine Fuse with 600VAC/300VDC Voltage Rating; KLDR Series

LITTELFUSE 8/10A Time Delay Melamine Fuse with 600VAC/300VDC Voltage Rating; KLDR Serieszoom

Attributes

Key Value
Alarm ContactNo
Alternate Mfr Part Numb.KLDR.800TXP
Amperage Rating0.8, 0.8 A, 0.8 A
Amps0.800
ApplicationTransformer Protection
Applications-
Approval Agency-
ApprovalsCE, CSA, UL
Body Length (in)1.5 "
Body Length (mm)38.1 mm
Body Size13/32 in Dia x 1-1/2 in.
Body TypeCartridge
BrandLittelfuse
Breaking Capacity @ Rat.5AG, 10mm x 38mm (Midge.
Case Pack10
Catalog NumberKLDR.800TXP
CategoryCircuit Protection
CharacteristicTime Delay
ClassCC, CE, CSA, UL
Country of OriginMexico
Country of Origin (subj.United States
Current Rating0.8 A
Current Rating (Amps)Slow Blow
Date First AvailableJune 17, 2018
Depth (in)2.25
Description:UL CLASS CC TIME DELAY .
Diameter13/32 in
Diameter (in)0.41 "
Diameter (mm)10.3 mm
Family / StyleKLD
Family SeriesLittelfuse Fuses
FeaturesCC
Fuse Type800mA
Gross Weight0.2 lbs
GTIN695526835542
Indicating/Non-Indicati.Non-Indicating
Interrupt Rating20/200 kA, 200 kA @ 600.
Interrupt Rating AC200 kA
Interrupt Rating DC20 kA
ItemTime Delay Fuse
Item NumberKLDR.800TXP
Item TypeClass CC
Length1 1/2 in
Made in USANo
ManufacturerLittelfuse
MaterialMelamine
MFG Part #:KLDR.800TXP
MfrLittelfuse Inc.
MountingCartridge
Mounting typeHolder
Mounting TypeHolder, Cartridge
Net Weight0 lbs
OpeningTime-Delay, Slow-Blow
Operating Temperature200kA AC, 20kA DC
PackageActive
Package / Case0.406" Dia x 1.500" L (.
Package Dimensions2 x 2 x 2 inches
Package TypeCartridge
Part StatusHolder
Product with faster shi.true
Rejection/Non-RejectionRejection
Response Time12, 12 s, Transformer P.
RoHSYes
SeriesBulk, KLDR
Shippingundefined (Fixed Shippi.
Size / Dimension600 V
Special FeaturesTime-Delay
Standard248-4 UL Listed, Class .
Standard Pack:Order QTY must be in mu.
StandardsCalifornia Proposition .
Sub BrandPOWR-GARD KLDR Series
Supplier:Littelfuse
Terminal TypeFerrule
Trip IndicatorNo
TypeCurrent Limiting
UPC079458792461
UPC:07945879246
Voltage (AC)600 V
Voltage (DC)300 V
Voltage Rating600 VAC/300 VDC
Voltage Rating - AC300 V
Volts AC600
Volts DC300

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi SupplyKLDR.800TXP14.991In StockLITTELFUSE14.99 @ 1
Digi-KeyKLDR.800HXP-ND15.264100In StockLittelfuse Inc.15.264 @ 100
thumbzoommidwestapplianceparts.comKLDR.800TXP-LF-P15.361In StockLittelfuse15.36 @ 1
Newark64W573120.2210In StockLITTELFUSE20.22 @ 10
thumbzoomhomeessentialsdirect.comKLDR.800TXP24.821In StockLittelfuse24.82 @ 1
AmazonTPB07DSTTXSC27.661In Stock2Littelfuse27.66 @ 1
thumbzoomGalcoKLDR.800TXP-LF29.0710In StockLittelfuse0.229.07 @ 10
thumbzoomWalker IndustrialKLDR.800TXP30.1210In Stock17Littelfuse30.12 @ 10
kscdirect.comLF KLDR.800TXP30.321In StockLITTELFUSE30.32 @ 1
Airline HydraulicsLITTELFUSE KLDR.800TXP31.061In StockLittelfuse Inc31.06 @ 1
thumbzoomelectricalparts.comKLDR.800TXP33.7456111Littelfuse33.7456 @ 1
GuardianLIT-KLDR.800TXP34.051In StockLITTELFUSE34.05 @ 1
thumbzoomcbtcompany.comKLDR.800TXP36.161In StockLittelfuse36.16 @ 1
us.rs-online.com7368915637.281In StockLittelfuse37.28 @ 1
thumbzoomPlatt.com003317539.781In StockLittelfuse39.78 @ 1
thumbzoommayerelectric.comLFUKLDR.800TXP42.431In StockLITTELFUSE42.43 @ 1
crescentelectric.com117036952.4142Littelfuse52.4 @ 1
thumbzoomZoroG5626558110.41In Stock2Littelfuse110.4 @ 1
thumbzoomstandardelectricsupply.com2254344226.01159Littelfuse226.0 @ 1
thumbzoomLighting SupplyKLDR.800TXP268.21In StockLittelfuse268.2 @ 1
thumbzoomgordonelectricsupply.comKLDR.800HXP1289.01In StockLITTELFUSE1289.0 @ 1
