Littelfuse S6010L

mpnS6010L
brandname: Littelfuse
manufacturername: Littelfuse

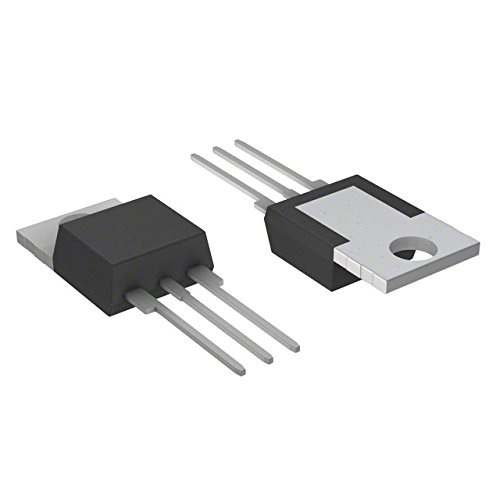

Littelfuse S6010L SCR THYRISTOR, 10A, 600V, TO-220AB

Littelfuse S6010L SCR THYRISTOR, 10A, 600V, TO-220AB

zoom

Brand: Littelfuse
PartNumber: S6010L
PackageQuantity: 1
Binding: Misc.
Manufacturer: LITTELFUSE
Label: LITTELFUSE

Attributes

Key	Value
Alternate Part No.	576-S6010L
Brand	Littelfuse
Configuration	Thyristor
Current Squared Time Ra.	41 A sq. s
Dimensions	10.67 x 4.78 x 9.4 mm
Forward Current	10 A
Forward Voltage	1.6 V
Forward Voltage Drop	1.6 V
Gate Trigger Current - .	15 mA
Gate Trigger Voltage	0.8 V
Gate Trigger Voltage - .	1.5 V
Holding Current	30 mA
Holding Current Ih Max	30 mA
Length	0.42 in
Manufacturer	Littelfuse
Manufacturer Part No.	S6010L
Maximum Junction Temper.	+125 ?C
Maximum On State Current	6.4 A
Maximum Operating Tempe.	+ 125 C
Minimum Operating Tempe.	-40 ?C, - 40 C
Mounting Style	Through Hole
Mounting Type	Through Hole
Non Repetitive On-State.	100 A
Number of Pins	3
Off-State Leakage Curre.	0.01 mA
On-State RMS Current - .	10 A
Operating Temperature	-40 to +125 ?C
Package Type	TO-220L
Package/Case	TO-220
Packaging	Bulk
Primary Type	Sensitive
Product Category	SCRs
Product Header	10 A Standard SCR
Rated Repetitive Off-St.	600 V
Repetitive Off State Pe.	3000 ?A
Resistance, Thermal, Ju.	3 ?C/W
Reverse Current	10 ?A
Reverse Voltage	600 V
Series	Sxx10x
Surge Current	100 A
Switching Speed	Standard
Temperature Operating R.	-40 to +125 ?C
Thyristor Type	SCR

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70184620	1.52	500	65		Littelfuse		1.52 @ 500
	Digi-Key	S6010L-ND	1.77	1	65		Littelfuse Inc.		1.77 @ 1
	swatee.com	S6010L	3.49	1	419		Littelfuse		3.49 @ 1
