Marathon Electric B302

B00QW2OWTU

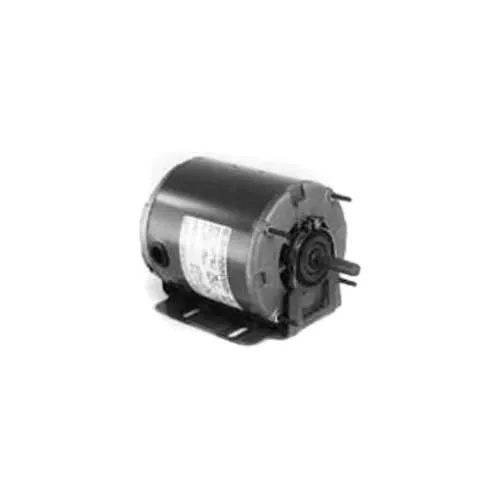

Motor,1/4Hp 115V 1725Rpm 48Y,Mtb302

Motor,1/4Hp 115V 1725Rpm 48Y,Mtb302zoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D2054
Amps5.0
ApprovalsCSA, UR
ASINB082Y8VTJX
Bearing TypeBall
BrandMarathon
C-Dimension9.57 (in.)
Catalog NumberB302
CEN
CompositionRolled Steel
CSAY
Current Rating5 A
DE Bearing TypeBall
DEM ReferenceMA#B302
DutyContinuous
Duty CycleContinuous
Efficiency57.5
Efficiency %57.5 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure TypeDrip Proof
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/4 hp
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code22
ItemMotor,1/4Hp 115V 1725Rp.
Item model numberB302
Item NumberB302
Kilowatts0.19 kW
KVA CodeP
ManufacturerMarathon Electric, Mara.
Manufacturer Part Number048S17D2054
Max Ambient40?C
Motor OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame48Z
Net Weight14 lbs
Number of Poles4
ODE Bearing TypeBall
Overall Length9.57 "
Package Quantity1
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
RotationSelective Counterclockw.
RPM1725 RPM, 1700 - 1800, .
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter0.5 ", 1/2 (in.)
Shaft Extension2.01 (in.)
Shaft TypeSingle Special Extension
Special FeaturesService Factor - 1.35
Speeds1
StandardsUL Recognized
Supply Voltage115 VAC
TypeSplit Phase
Type of Overload Protec.No
ULRecognized
UNSPSC Code52150000
UPC Code722856039347
Voltage115
Voltage (AC)115 VAC
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netB302134.651In StockMarathon Motors134.65 @ 1
thumbzoomelectricmotorwholesale.comB302137.01In StockMARATHON137.0 @ 1
thumbzoomcshincorporated.comMB302138.551In StockMarathon16.0138.55 @ 1
thumbzoomGalcoB302-MARA144.541In StockMarathon Electric14.0144.54 @ 1
thumbzoomsustainablesupply.comC3070980156.21In StockMarathon14.0156.2 @ 1
AmazonSCB082Y8VTJX170.981In StockMarathon170.98 @ 1
us.rs-online.com72238298171.3311Marathon Motors171.33 @ 1
thumbzoomDreisilkerMA-RBC-B302177.451In StockMarathon177.45 @ 1
thumbzoomMRO Supply2269651182.91In StockMarathon Electric182.9 @ 1
thumbzoommidwestapplianceparts.comB302-MT-P187.514Marathon187.5 @ 1
thumbzoomindustrialstores.comB302202.9120Marathon Motors202.9 @ 1
thumbzoomptacsolutions.comB302204.8114Marathon Motors204.81 @ 1
thumbzoomZoroG6458809205.991In StockMarathon13.95205.99 @ 1
thumbzoomGlobal IndustrialWBB871662209.951In StockMarathon Motors209.95 @ 1
kirbyrisk.com507346210.111In StockMarathon210.11 @ 1
thumbzoomNational Supply NetworkB871662214.691In StockMARATHON MOTORS214.69 @ 1
cbtcompany.comB302256.321In StockMarathon Electric Motors256.32 @ 1
uri.comB302424.141In StockMarathon14.0424.14 @ 1
