Marathon Electric B315

B007ZQLGM8

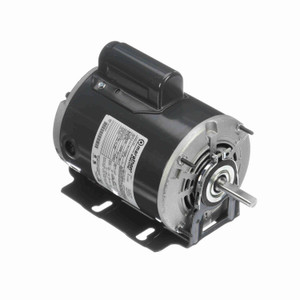

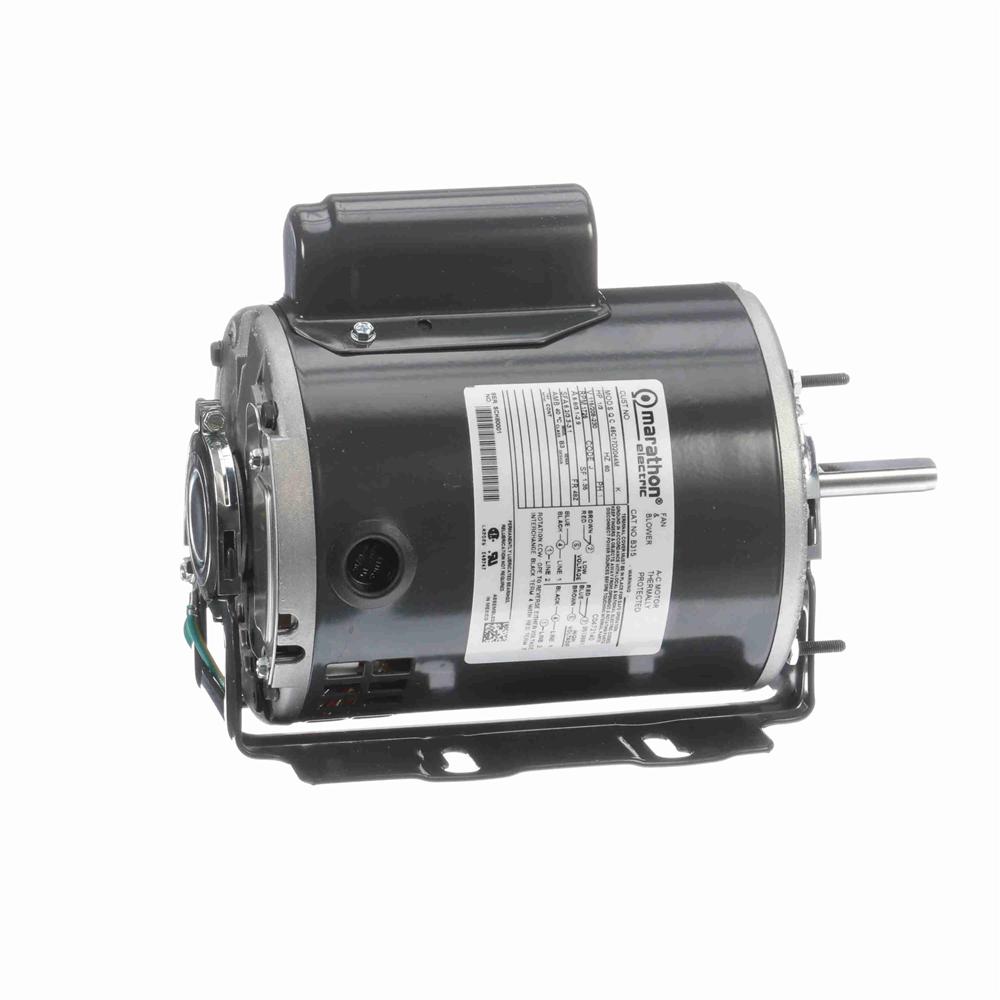

Marathon B315 48YZ Frame Fan and Blower Motor, Single Split Phase, Resilient Ring Mount, Open Drip Proof, Ball Bearing, 5.8/3.1-2.9 amp, 1/3 hp, 1725 RPM, 115/208-230V

Marathon B315 48YZ Frame Fan and Blower Motor, Single Split Phase, Resilient Ring Mount, Open Drip Proof, Ball Bearing, 5.8/3.1-2.9 amp, 1/3 hp, 1725 RPM, 115/208-230Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.048C17D2044
Amps5.8/3.1-2.9
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.22 (in.)
Catalog NumberB315
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceMA#B315
DutyContinuous
Duty CycleContinuous
Efficiency0.64
Efficiency %64 %
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight16.41 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code22
ItemMotor,1/3Hp,115/230V,17.
Item NumberB315
Kilowatts0.25 kW
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #048C17D2044
Manufacturer Part Number048C17D2044
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length6.25"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame48Z
Net Weight17 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.22", 10.22 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeCapacitor Start
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeSingle Special Extension
Ship Weight17 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Voltage115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115, 208, 230, 115/208-.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB315194.01In StockMARATHON194.0 @ 1
AmazonTPB007ZQLGM8196.991In Stock2Marathon Electric196.99 @ 1
thumbzoomMRO Supply2269652205.711In StockMarathon Electric205.71 @ 1
thumbzoomktool.netB315206.751In StockMarathon Motors206.75 @ 1
thumbzoomcshincorporated.comMB315208.611In StockMarathon18.0208.61 @ 1
thumbzoomGalcoB315-MARA240.991In StockMarathon Electric17.0240.99 @ 1
thumbzoomemotorpro.comB315247.681In StockMarathon17.0247.68 @ 1
us.rs-online.com72650165250.021In StockMarathon Motors250.02 @ 1
thumbzoommidwestapplianceparts.comB315-MT-P256.8813Marathon256.88 @ 1
thumbzoomNational Supply NetworkB871670268.01In StockMARATHON MOTORS268.0 @ 1
thumbzoomDreisilkerMA-RBC-B315272.51In StockMarathon272.5 @ 1
thumbzoomindustrialstores.comB315275.113Marathon Motors275.1 @ 1
thumbzoomGuardianMARSB315321.311In StockMarathon321.31 @ 1
kirbyrisk.com3141709322.651In StockMarathon322.65 @ 1
thumbzoomZoroG6460531328.991In StockMarathon17.6328.99 @ 1
