Marathon Electric B303

B0042GKLKM

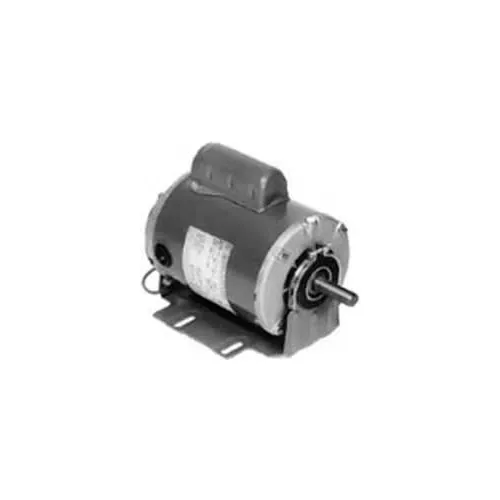

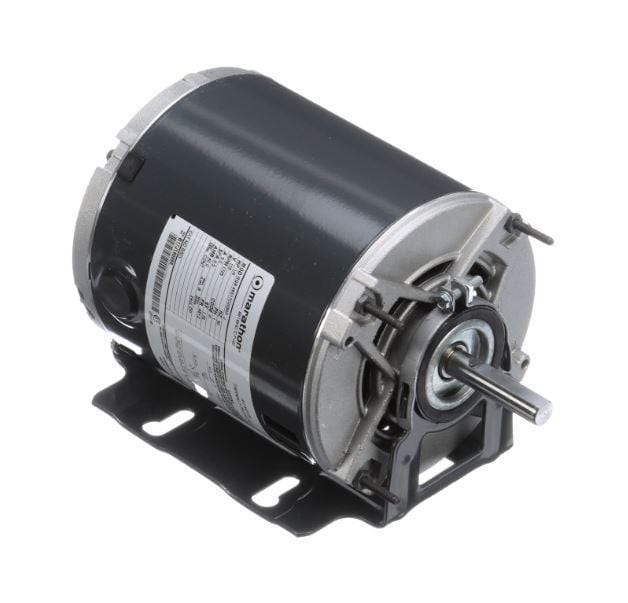

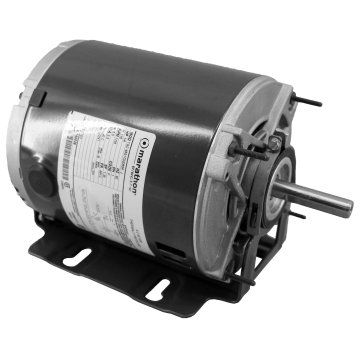

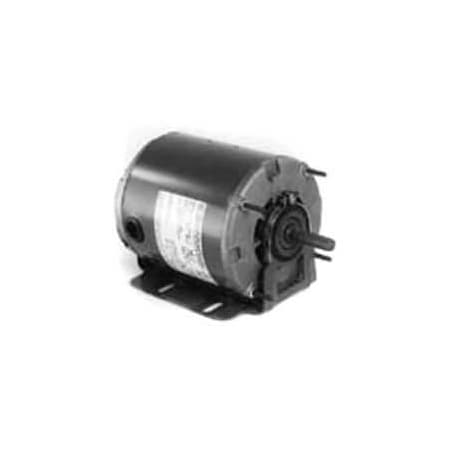

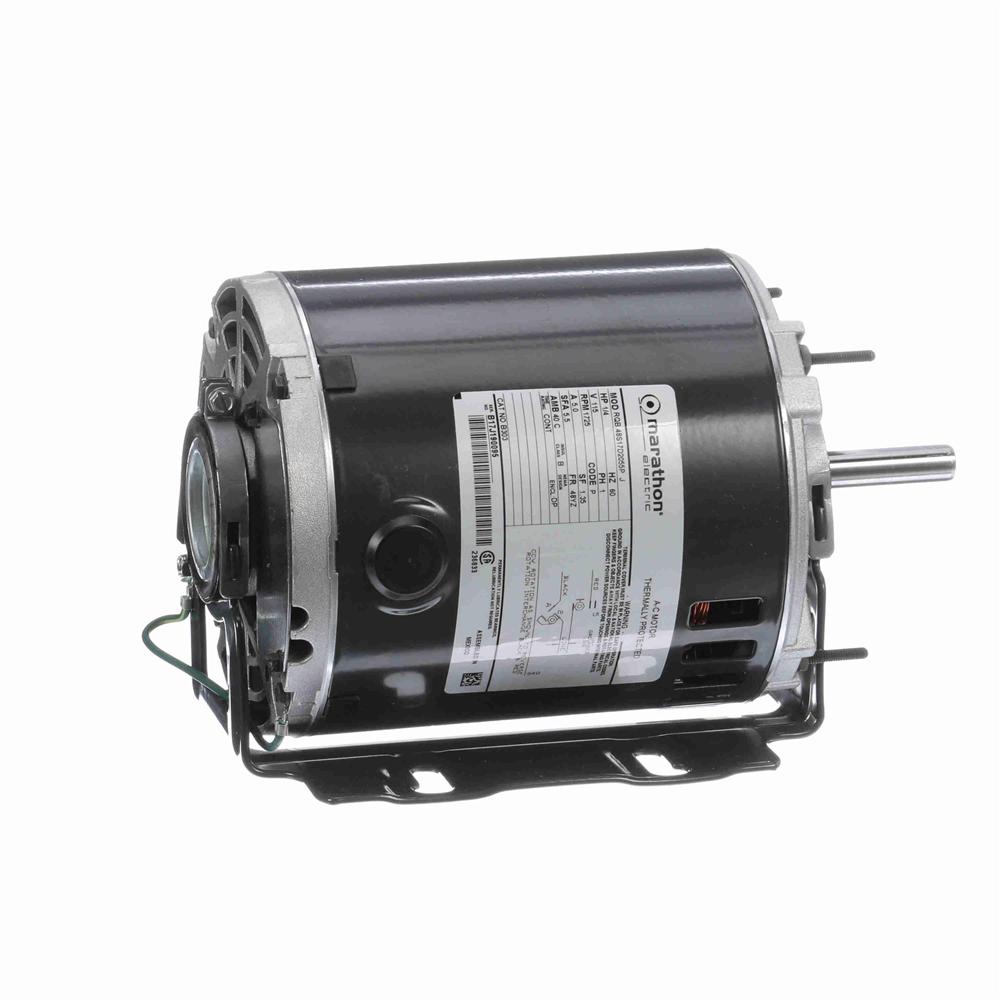

Marathon B303 48S17D2055 Series Motor, Split Phase, 48Y Frame, 1/4 hp, 115V, 1725 RPM

Marathon B303 48S17D2055 Series Motor, Split Phase, 48Y Frame, 1/4 hp, 115V, 1725 RPMzoom

Attributes

Key Value
Alternate Mfr Part Numb.048S17D2055
Amps5.0, 5
BearingsBall
Best Sellers RankSee Top 100 in Tools & .
BrandMarathon Motor, Maratho.
C-Dimension9.57 (in.)
Catalog NumberB303
CEN
Country of OriginCHINA
CSAY
Current Rating5 A
Date First AvailableJune 4, 2010
DE Bearing TypeBall
DEM ReferenceMA#B303
DutyContinuous
Duty CycleContinuous
Efficiency58, 0.575
Electrical TypeSplit Phase
EnclosureODP
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
GTIN743167977623
Height7.50, 8.110
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
Insulation TypeClass B
International ShippingNo
IP Code22
Item model numberB303
KVA CodeP
Length13.150, 13.00
ManufacturerMarathon
Manufacturer Model #048S17D2055
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
MpnB303
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.57"
Package Dimensions12.8 x 8.7 x 7.4 inches.
Package Quantity1
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
Product with faster shi.true
RotationReversible, Selective C.
RPM1725 RPM, 1700 - 1800, .
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension1.87 (in.)
Shaft Length1.87"
Shaft TypeSingle Special Extension
Ship Weight14 lbs.
Shippingundefined (Fixed Shippi.
Size MeasureIN
SKUGLO-B871663
Special FeaturesService Factor - 1.35
Speeds1
StandardsUL Recognized
Supply Voltage115 VAC
Thermal ProtectionAutomatic
TypeSplit Phase
Type of Overload Protec.Automatic
ULRecognized
UNSPSC26101105
UPC722856039354
UPC Code722856039354
Voltage115
Volts115
Weight14.000
Weight MeasureLB
Width7.170, 8.00

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0042GKLKM131.21In Stock2Marathon131.2 @ 1
thumbzoomktool.netB303139.941In StockMarathon Motors139.94 @ 1
thumbzoomelectricmotorwholesale.comB303142.01In StockMARATHON142.0 @ 1
thumbzoomcshincorporated.comMB303144.161In StockMarathon16.0144.16 @ 1
thumbzoomapexindustrialautomation.comB303149.411444Marathon149.41 @ 1
thumbzoomemotorpro.comB303171.161In StockMarathon14.0171.16 @ 1
thumbzoommidwestapplianceparts.comB303-MT-P177.511In StockMarathon177.51 @ 1
us.rs-online.com72238299181.7711Marathon Motors181.77 @ 1
thumbzoomDreisilkerMA-RBC-B303188.261In StockMarathon188.26 @ 1
thumbzoomVoomi SupplyB303189.761In StockMarathon Motors189.76 @ 1
thumbzoomindustrialstores.comB303190.1113Marathon Motors190.11 @ 1
thumbzoomMRO Supply2269644190.321In StockMarathon Electric190.32 @ 1
thumbzoomhomeessentialsdirect.comB303190.341In StockMarathon190.34 @ 1
thumbzoomboatandrvaccessories.comB303205.6712Marathon205.67 @ 1
thumbzoomsimsupply.comGLO-B871663217.091In StockMarathon Motors217.09 @ 1
thumbzoomptacsolutions.comB303217.3110Marathon Motors217.3 @ 1
kirbyrisk.com504747222.91In StockMarathon222.9 @ 1
thumbzoomGuardianMARSB303224.721In StockMarathon224.72 @ 1
thumbzoomZoroG202609053303.21In Stock50Marathon Motors303.2 @ 1
thumbzoomHD Supply490461304.991In StockMarathon Motor14.0304.99 @ 1
uri.comB303454.31In StockMarathon13.9454.3 @ 1
thumbzoomGlobal IndustrialWBB870698725.01In StockMarathon Motors725.0 @ 1
