Marathon Electric B312

B019KNBJ0W

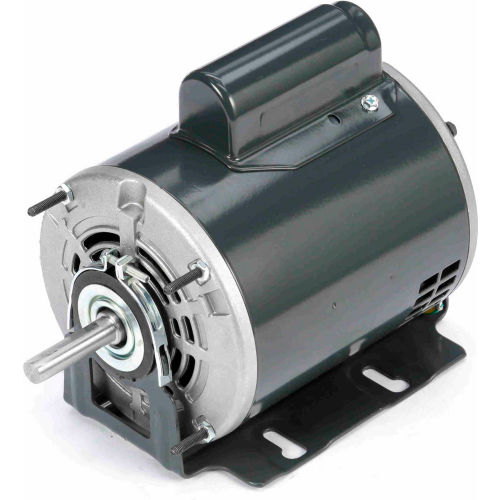

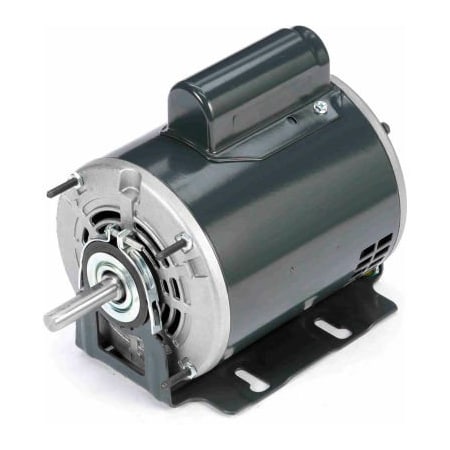

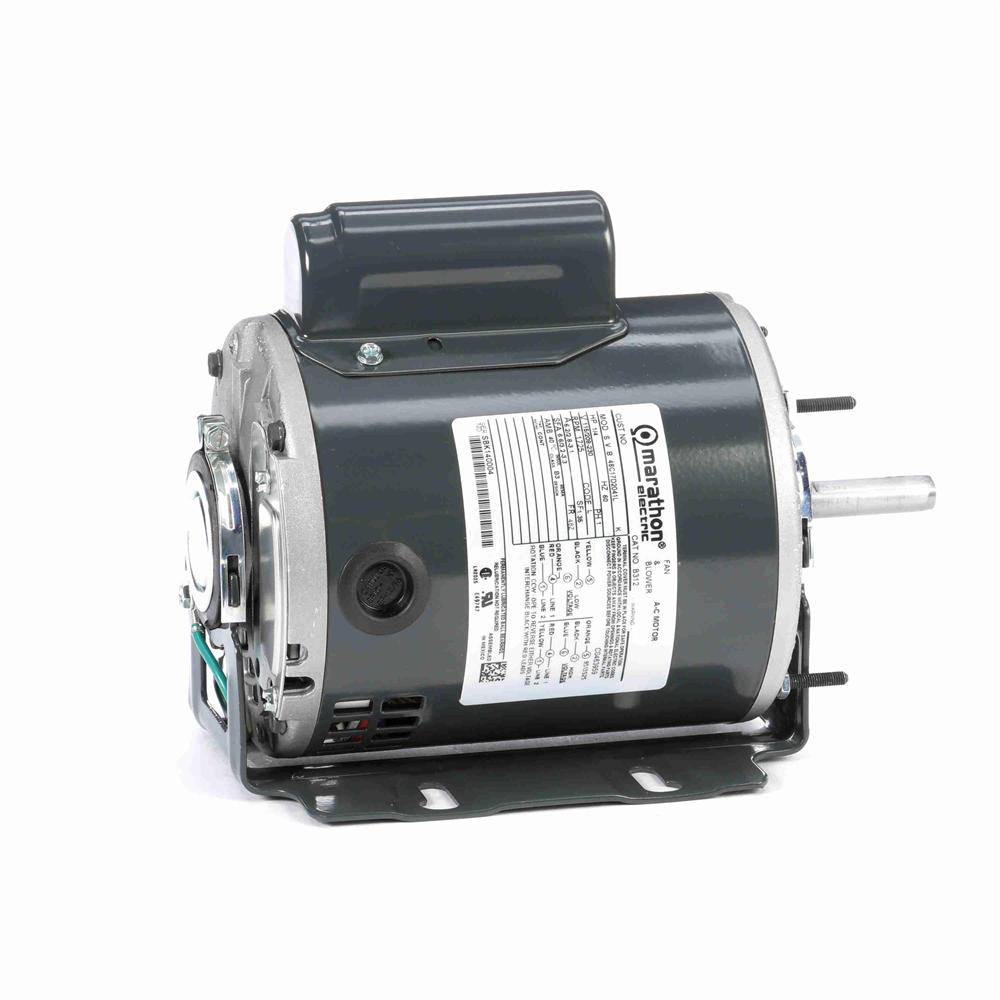

Marathon B312 48YZ Frame Open Drip Proof 48C17D2041 Belt Drive Motor, 1/4 hp, 1725 RPM, 115/208-230 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B312 48YZ Frame Open Drip Proof 48C17D2041 Belt Drive Motor, 1/4 hp, 1725 RPM, 115/208-230 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.048C17D2041
Amps6.2/2.8-3.1
BearingsBall
BrandMarathon
C-Dimension9.72 (in.)
Catalog NumberB312
CEN
CSAY
Current Rating6.2 ; 2.8 to 3.1 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency52.5, 0.525
Electrical TypeCapacitor Start Inducti.
EnclosureODP
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code12
KVA CodeL
Manufacturer Model #048C17D2041
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.72"
Package Quantity1
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypeCapacitor Start
RotationReversible, Selective C.
RPM1725 RPM, 1725, 1800
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension1.88 (in.)
Shaft Length1.88"
Shaft TypeSingle Special Extension
Ship Weight15 lbs.
Special FeaturesService Factor - 1.35
Speeds1
StandardsUL Recognized
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
Type of Overload Protec.No
ULRecognized
UPC Code722856040299
Voltage115/208-230
Volts115, 208, 230, 115/208-.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB312164.01In StockMARATHON164.0 @ 1
thumbzoomapexindustrialautomation.comB312218.01139Marathon218.01 @ 1
thumbzoomGalcoB312-MARA223.751In StockMarathon Electric223.75 @ 1
thumbzoomMRO Supply2269638226.111In StockMarathon Electric226.11 @ 1
thumbzoomcshincorporated.comMB312232.151In StockMarathon15.0232.15 @ 1
us.rs-online.com72238319275.321In StockMarathon Motors275.32 @ 1
thumbzoomemotorpro.comB312275.621In StockMarathon15.0275.62 @ 1
thumbzoomDreisilkerMA-RBC-B312276.141In StockMarathon276.14 @ 1
thumbzoommidwestapplianceparts.comB312-MT-P285.861In StockMarathon285.86 @ 1
thumbzoomNational Supply NetworkB2776742291.661In StockMARATHON MOTORS291.66 @ 1
thumbzoomGlobal IndustrialWBB2776742297.951In StockMARATHON297.95 @ 1
thumbzoomZoroG604954126441.991In StockMarathon Motors441.99 @ 1
