Marathon Electric B313

mpnB313
brandname: Marathon Electric
manufacturername: Marathon Electric

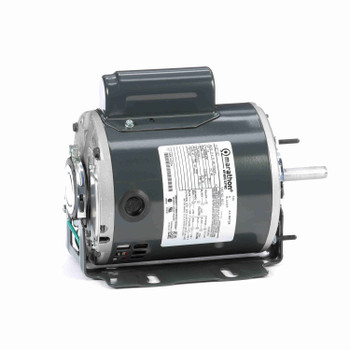

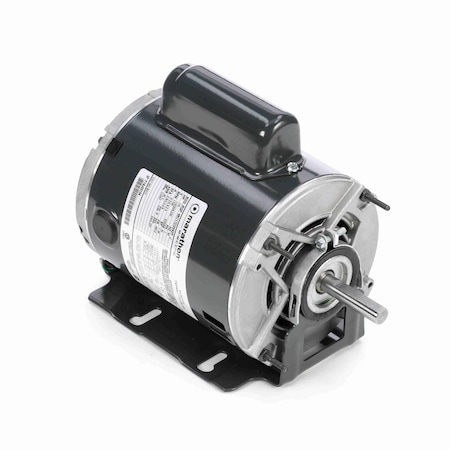

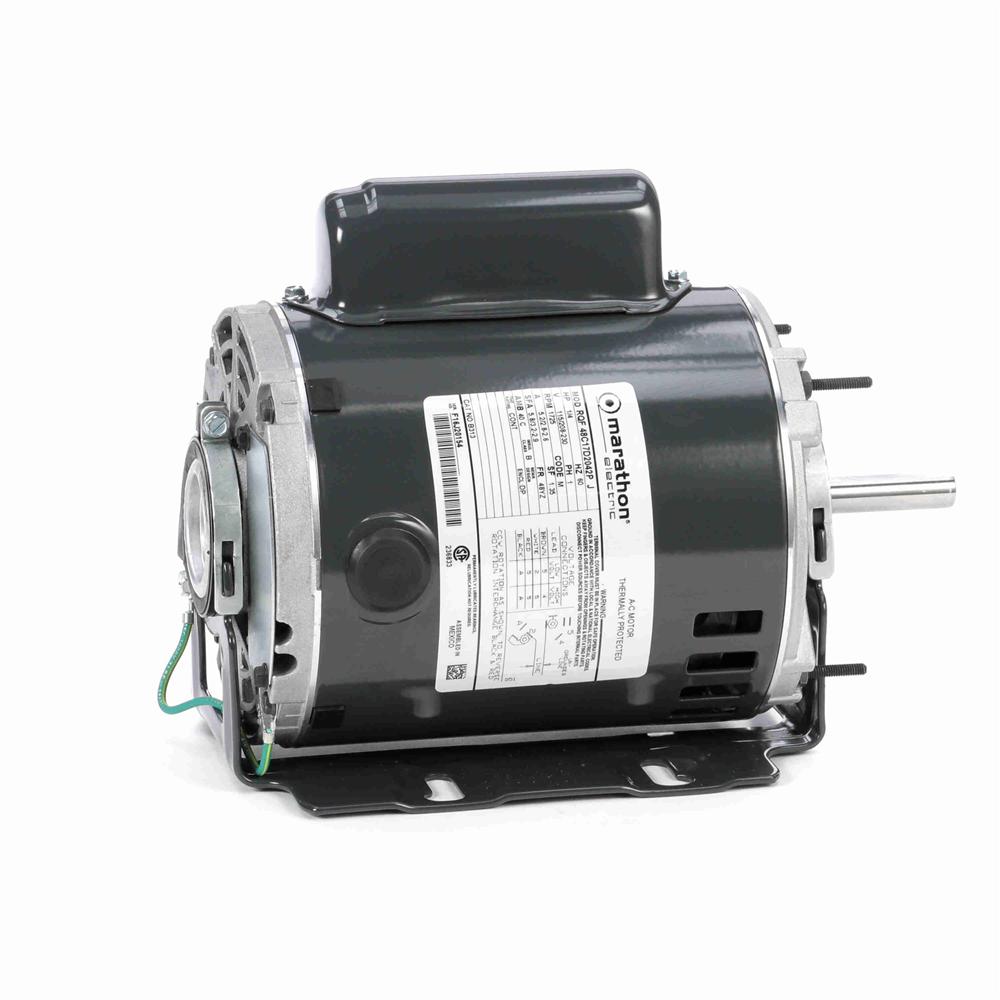

Marathon B313 48YZ Frame 48C17D2042 Open Drip Proof Belt Drive Motor, 1 Split Phase, Resilient Ring Mount, Ball Bearing, 1/4 hp, 1725 RPM, 1 Speed, 115/208-230 VAC

Marathon B313 48YZ Frame 48C17D2042 Open Drip Proof Belt Drive Motor, 1 Split Phase, Resilient Ring Mount, Ball Bearing, 1/4 hp, 1725 RPM, 1 Speed, 115/208-230 VAC

zoom

Brand: Marathon Electric
PartNumber: B313
Model: MB313
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048C17D2042
Amps	5.2/2.8-2.6
Bearings	Ball
Brand	Marathon
C-Dimension	9.95 (in.)
Catalog Number	B313
CE	N
Country of Origin (subj.	Mexico
CSA	Y
Current Rating	5.2 ; 2.8 to 2.6 A
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continous
Duty Cycle	Continuous
Efficiency	57.5, 0.575
Electrical Type	Capacitor Start Inducti.
Enclosure	ODP
Enclosure Material	Steel
Enclosure Type	ODP (Open Dripproof), D.
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower Rating	0.25 HP
HP	1/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	22
KVA Code	M
Manufacturer Model #	048C17D2042
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Mounting	Base/Stud
Mounting Orientation	Horizontal
Mounting Type	Resilient Base - Extend.
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	9.95"
Phase	1, 1 Phase
Product Category	HVAC/R Motors > Fan an.
Product Type	Capacitor Start
Rotation	Reversible, Selective C.
RPM	1725 RPM, 1700 - 1800, .
RPM (Nameplate)	1725
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
Service Factor	1.35
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	2.01 (in.)
Shaft Length	2.01"
Shaft Type	Single Special Extension
Ship Weight	16 lbs.
Special Features	Service Factor - 1.35
Speeds	1
Standards	UL Recognized
Supply Voltage	115/208-230 VAC
Thermal Protection	Automatic
Type	Capacitor Start Inducti.
Type of Overload Protec.	Automatic
UL	Recognized
UPC Code	722856062031
Voltage	115/208-230
Volts	115, 208, 230, 115/208-.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	electricmotorwholesale.com	B313	170.0	1	In Stock		MARATHON		170.0 @ 1
	cshincorporated.com	MB313	178.81	1	In Stock		Marathon	19.0	178.81 @ 1
	apexindustrialautomation.com	B313	185.33	1	1001		Marathon		185.33 @ 1
	Galco	B313-MARA	190.21	1	In Stock		Marathon Electric		190.21 @ 1
	emotorpro.com	B313	212.3	1	In Stock		Marathon	16.0	212.3 @ 1
	midwestapplianceparts.com	B313-MT-P	220.18	1	1		Marathon		220.18 @ 1
	us.rs-online.com	72238329	225.48	1	In Stock		Marathon Motors		225.48 @ 1
	Dreisilker	MA-RBC-B313	233.52	1	In Stock		Marathon		233.52 @ 1
	MRO Supply	2269649	237.46	1	In Stock		Marathon Electric		237.46 @ 1
	Zoro	G006604599	244.02	1	In Stock	10	Marathon		244.02 @ 1
	Guardian	MARSB313	275.04	1	In Stock		Marathon		275.04 @ 1
	kirbyrisk.com	512847	276.49	1	In Stock		Marathon		276.49 @ 1
