Marathon Industries 404TSTDS16036

B07HJK18HL

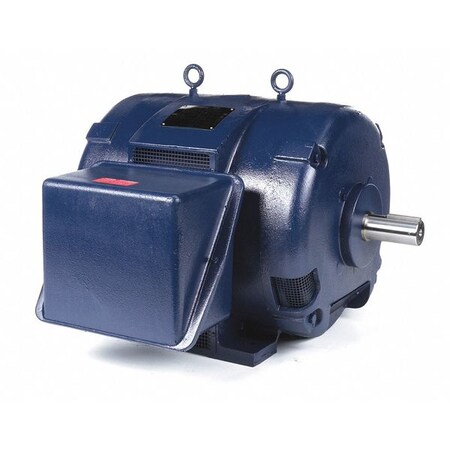

Motor 3-Ph 100 HP 1785 RPM 230/460V

Motor 3-Ph 100 HP 1785 RPM 230/460Vzoom

Attributes

Key Value
CC NumberCC003A
ClassificationGeneral Purpose
CompositionCast Iron
Country of Origin (subj.United States
DutyContinuous
Efficiency %95.4 %
EnclosureODP, Open
Family SeriesMarathon Electric Motors
Frame404TS
Frame MaterialCast Iron
Frame RemarksRigid
Full Load Amps226.0/113.0
Gross Weight0 lbs
Horsepower100 hp
HP100
Hz60/50
Ins. ClassF
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number404TSTDS16036
Kilowatts75 kW
Length Less Shaft25"
ManufacturerMarathon Electric
Manufacturer Part NumberE780A
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM1785
NEMA Frame404TS
Net Weight1040 lbs
No. of Speeds1
Nominal Efficiency72.4%
Nominal Voltage240 VAC, 277 VAC, 347 V.
Overall Length29-1/2"
Phase3
RPM1,785 RPM, 1800
RPM Group1701-1800
RPM Range1701-1800
Service Factor1.15
Shaft Dia.2-1/8"
Shaft Length4-1/4"
StandardsUL (E49747), CSA (LR202.
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility460, 230/460, 220-230/4.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco404TSTDS16036-MARA5295.551In StockMarathon Electric1040.05295.55 @ 1
thumbzoomZoroG98760455696.421In Stock25Marathon Motors5696.42 @ 1
thumbzoomDealers Electric404TSTDS160366733.41In StockMarathon Electric1040.06733.4 @ 1
