Micro 100 QBM-200750

B00Q8LOA5Q

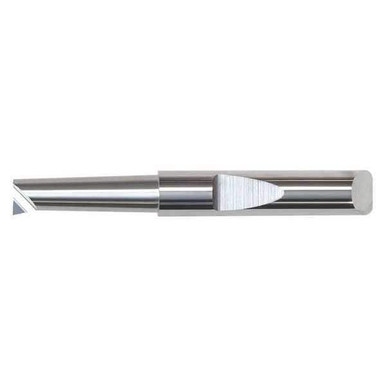

Micro 100 QBM-200750 Right Hand Quick Change Boring Tool for Milling Machine, Solid Carbide Tool, 0.200"(5.08 mm) Minimum Bore Diameter, 0.750" (19.1 mm) Maximum Bore Depth, 0.095" (2.41 mm)Tip of Centerline to Cutting Tip, 0.008" (0.20 mm) Tool Radius, 0.2500" (6.4 mm) Shank Diameter, 2"(51 mm) Overall Length

Micro 100 QBM-200750 Right Hand Quick Change Boring Tool for Milling Machine, Solid Carbide Tool, 0.200"(5.08 mm) Minimum Bore Diameter, 0.750" (19.1 mm) Maximum Bore Depth, 0.095" (2.41 mm)Tip of Centerline to Cutting Tip, 0.008" (0.20 mm) Tool Radius, 0.2500" (6.4 mm) Shank Diameter, 2"(51 mm) Overall Lengthzoom

Attributes

Key Value
ApplicationFor Mills
Bore Depth.750"
Bore Dia..200"
Boring Bar TypeBoring
BrandMicro 100
Center to Cutting Tip0.0950 in
Compatible with Product.Micro-Quik Tool Holder
Corner Radius0.008"
Country of Origin (subj.United States
Current Stock22
Cutting ApplicationBoring
Cutting DirectionRight Hand
FeaturesCoolant Fed Enabled Sha.
FinishUncoated
Finish - MachiningBright (Uncoated)
Groove Width0.1190"
International ShippingNo
ItemBoring Bar
Lead TimeExpected to ship in 1-2.
MaterialC2 Micrograin Carbide
Max. Bore Depth3/4 in
Measurement SystemFractional Inch
Min. Bore Dia.0.2000 in
MpnQBM-200750
Neck Dia.0.1840"
Offset Point0.0950 in
Overall Length2 in
Overhang0.8530 in
Projection0.0200"
Radius0.0080 in
SeriesQBM
Shank Dia.1/4 in
Shank MaterialCarbide
Side Cutting Edge Angle10 Degrees
SKUZO-G8050585
SubCategoryMachining
UPC728709154458
