Woodhead / Molex 53258-0729

B09BZYH6HH

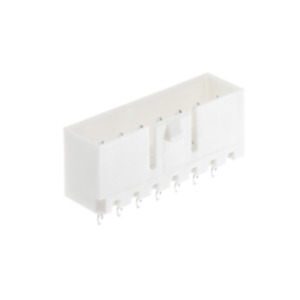

53258-0729,Conn Shrouded Header (4 Sides) HDR 7 POS 3.5mm Press Fit ST Thru-Hole Tray (100 Items)

53258-0729,Conn Shrouded Header (4 Sides) HDR 7 POS 3.5mm Press Fit ST Thru-Hole Tray (100 Items)zoom

Attributes

Key Value
Allowable Current(A)5.5
Alternate Part No.538-53258-0729
BrandMolex
Circuits (Loaded)7
Circuits (maximum)7
Connector ShapeSquare
Contact MaterialBrass
Contact PlatingTin
Current - Maximum per C.5.5A
Current Rating5.5 A
Durability (mating cycl.30
Flammability94V-0
Guide to Mating PartYes
Lock to Mating PartYes
ManufacturerMolex
Manufacturer Part No.53258-0729
Material - MetalBrass
Material - Plating Mati.Tin
Material - Plating Term.Tin
Mating partner51067
Mounting AngleVertical
Number of Positions7
Number of Rows1
OrientationVertical
Package Quantity1
PackagingTray
Part # Aliases0532580729
PC Tail Length3.50mm
PCB Thickness - Recomme.1.60mm
Pitch3.5 mm
Pitch - Mating Interface3.50mm
Plating min - Mating1.016?m
Plating min - Terminati.1.016?m
Product CategoryHeaders & Wire Housings
Product TypeHeaders
Series53258
ShroudedFully
Temperature Range - Ope.-40? to +105?C
Termination Interface: .Through Hole
Termination StyleThrough Hole
TypeShrouded
ULE29179
Voltage - Maximum250V
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com53258-07290.671324MOLEX / WALDOM0.67 @ 1
Chip One Stop GlobalC1S5165031993420.701680Molex0.701 @ 6

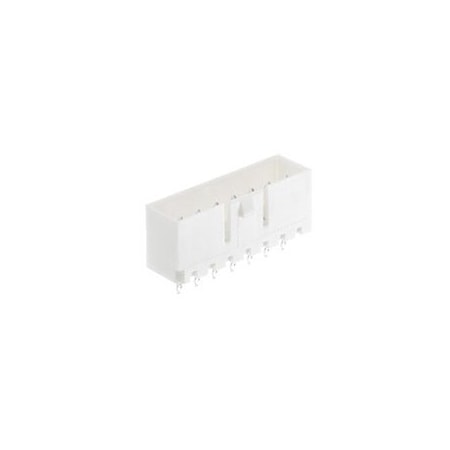

WaldomMOLEX 53258-07290.727510834MOLEX0.72 @ 75
Verical5325807290.7542702Molex0.75 @ 42
Avnet53258-07290.762171600131Molex0.76217 @ 1600
thumbzoomjensentools.com101937040.961131Molex0.96 @ 1
Newark92M67801.53110732MOLEX1.53 @ 1
thumbzoomMisumi USA53258-07291.71131Molex1.7 @ 1
thumbzoomRadwell53258-07292.251131MOLEX2.25 @ 1
thumbzoomswatee.com53258-07292.381455Molex2.38 @ 1
thumbzoomZoroG2091150104.2575131Molex104.25 @ 75
