- mpn39-30-0040
- brandname: Molex Incorporated
- manufacturername: Molex Incorporated

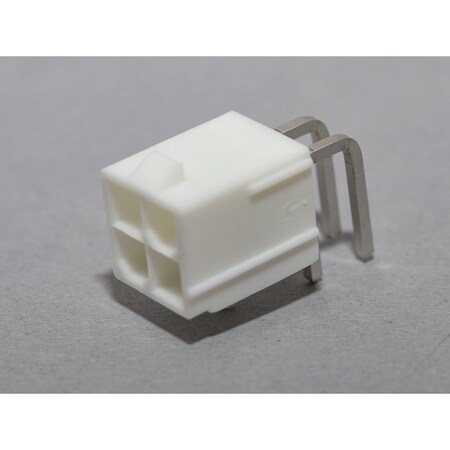

Molex 39-30-0040 Plug & Socket Conn, Header, 4POS, 4.2MM
- Brand: Molex
- PartNumber: 39-30-0040
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: MOLEX
- Label: MOLEX
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 5569-04A2-210 |
| Applications | General Purpose, Indust. |
| Category | Connectors, Interconnec. |
| Color | Natural |
| Connector Type | Header, Male Pin |
| Contact Finish | Matte Tin Plated |
| Contact Finish - Mating | Tin, 100.0?in (2.54?m) |
| Contact Finish - Post | Brass, Tin |
| Contact Finish Thicknes. | Tin, 100.0 |
| Contact Finish Thicknes. | 100.0, General Purpose,. |
| Contact Length - Mating | 0.142" (3.60mm) |
| Contact Length - Post | 0.142" (3.60mm), - |
| Contact Material | Brass, Polyamide (PA66). |
| Contact Plating Thickne. | 2.54 ?m |
| Contact Shape | Tin, Square |
| Contact Type | Male Pin, 0.165" (4.20m. |
| Current Rating | 13 A |
| Current Rating (Amps) | - |
| Family Name | Mini-Fit Jr. |
| Fastening Type | -, Locking Ramp |
| Features | -, Board Lock |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 4.2 mm |
| Ingress Protection | UL94 V-0 |
| Insulation Color | Natural, - |
| Insulation Height | Square, 0.378" (9.60mm) |
| Insulation Material | Polyamide (PA66), Nylon. |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer Part Number | 0039300040 |
| Manufacturer Standard L. | 5 Weeks |
| Mated Stacking Heights | 100.0?in (2.54?m) |
| Material | Nylon |
| Material Flammability R. | UL94 V-0, Natural |
| Max. Temp. | 240?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Type | Solder, Through Hole, R. |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 2, 4 |
| Number of Positions Loa. | All, Board to Cable/Wire |
| Number of Rows | 2, 0.165" (4.20mm) |
| Operating Temperature | - |
| Orientation | Right Angle |
| Overall Contact Length | 0.378" (9.60mm) |
| Package | Active |
| Packaging | Bulk Pack |
| Part Status | Header |
| Pitch | 4.20 mm (0.165") |
| Pitch - Mating | 4, 0.165" (4.20mm) |
| Plating Material | Matte Tin |
| Primary Type | Soft Shell |
| Row Spacing - Mating | All, 0.165" (4.20mm) |
| Series | Bulk, Mini-Fit Jr 5569,. |
| Shrouding | Shrouded - 4 Wall, Thro. |
| Special Features | Low-Halogen |
| Standard Package | 4,000 |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire, Sh. |
| Terminal Finish | Matte Tin Plated |
| Terminal Type | Through Hole |
| Termination | PCB, Solder, Locking Ra. |
| Type | Right Angle Header |
| Voltage Rating | - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Verical | 39300040 | 0.3475 | 90 | 343 | | Molex | | 0.3475 @ 90 |
| Sager Electronics | 0039300040 | 0.391 | 1 | 3599 | | Molex | | 0.391 @ 5 |
| Onlinecomponents.com | 39-30-0040 | 0.448 | 1 | 190 | | MOLEX / WALDOM | | 0.448 @ 5 |
| Power and Signal Group | 0039300040 | 0.46 | 4000 | 5 | | Molex | | 0.46 @ 4000 |
| Waldom | MOLEX 39-30-0040 | 0.52 | 150 | 28354 | | MOLEX | | 0.52 @ 150 |
| iodParts | 0039300040 | 0.53 | 500 | 12000 | | Molex | | 0.53 @ 500 |
 | NEP Electronics | 39-30-0040 | 0.6912 | 150 | 28000 | | Molex | | 0.6912 @ 150 |
 | Newark | 94C1203 | 0.944 | 1 | 1424 | | MOLEX | | 0.944 @ 5 |
 | Digi-Key | WM21352-ND | 1.01 | 1 | 5 | | Molex | | 1.01 @ 5 |
 | TME | MX-39-30-0040 | 1.229 | 1 | 3547 | | MOLEX | | 1.229 @ 5 |
| us.rs-online.com | 70266946 | 1.33 | 1 | 60 | | Molex Incorporated | | 1.33 @ 5 |
| RS Delivers | 670-5717 | 1.494 | 1 | 215 | | Molex | | 1.494 @ 5 |
 | Radwell | 39-30-0040 | 1.8 | 1 | 5 | | MOLEX | | 1.8 @ 5 |
 | Zoro | G4042382 | 148.5 | 1 | 5 | | Molex | | 148.5 @ 5 |
