Panduit PNF10-8LF-L

B00B5MGIC6

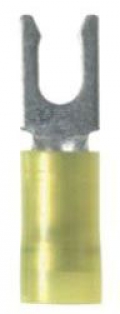

Panduit PNF10-8LF-L Locking Fork Terminal, Funnel Entry, Nylon Insulated, 12 - 10 AWG, #8 Stud Size, Yellow (50-Pack)

Panduit PNF10-8LF-L Locking Fork Terminal, Funnel Entry, Nylon Insulated, 12 - 10 AWG, #8 Stud Size, Yellow (50-Pack)zoom

Attributes

Key Value
AngleStraight
ApprovalsUL;CSA
Base Product NumberPNF10
CategoryConnectors, Interconnec.
ColorYellow
Connection MaterialTin-Plated Copper
Contact FinishTin
Contact MaterialCopper
Country of Origin (subj.Mexico
Default Sales Price UnitEA
Family SeriesPanduit Terminals, Pan-.
FeaturesSerrated Termination
Gross Weight0.275 lbs
InsulatedInsulated
InsulationInsulated
Insulation ColorYellow
Insulation Diameter0.225" (5.72mm)
Insulation MaterialNylon
Insulation TypeNylon
ItemFork Terminal
Item NumberPNF10-8LF-L
Length - Overall1.050" (26.67mm)
Length - Ring Center to.-
Length - Termination-
ManufacturerPanduit
Manufacturer Part NumberPNF10-8LF-L
Material - InsulationPolyamide (PA), Nylon
Max Temp221 Degrees F
Max. Voltage600V
MfrPanduit Corp
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
PackageBulk
Package Quantity50
Part StatusActive
Plating MaterialTin
Product SeriesPan-Term Terminals
RoHS CompliantYes
SeamGrip Sleeved
SeriesPan-Term?, Pan-Term PNF.
Stud Size#8
Stud/Tab Size8 Stud
Terminal MaterialCopper
Terminal TypeLocking, Spade/Fork - L.
TerminationCrimp
Tongue Inside Opening0.160" (4.06mm)
TypeFork Tongue
UPC Code074983513673
Volts600
Width - Outer Edges0.300" (7.62mm)
Wire Gauge10-12 AWG
Wire Range12 to 10 AWG
Wire Size12~10 AWG
Wire Size (AWG)12;11;10
Wire Strip Length0.281 Inches

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPNF10-8LF-L1.18150Panduit1.12 @ 51
thumbzoomcbtcompany.comPNF10-8LF-L1.44150PANDUIT1.44 @ 50
thumbzoomGalcoPNF10-8LF-L-PNDT1.445050Panduit0.2751.44 @ 50
Digi-Key4518181.694500580Panduit Corp1.694 @ 50
us.rs-online.com705187321.775050Panduit1.77 @ 50
thumbzoomZoroG078732060.41150148Panduit0.2860.41 @ 50
thumbzoomCarlton Bates Company0749835136769.5150PANDUIT69.5 @ 50
thumbzoomgordonelectricsupply.comPNF10-8LF-L75.815012PANDUIT75.8 @ 50
thumbzoomalldataresource.com1004456677.19150Panduit77.19 @ 50
thumbzoomturtle.comPAN PNF10-8LF-L169.56150Panduit169.56 @ 50
steinerelectric.com70281202.96150Panduit202.96 @ 50
