Schaffner FN9264B-2-06

B00OVELA46

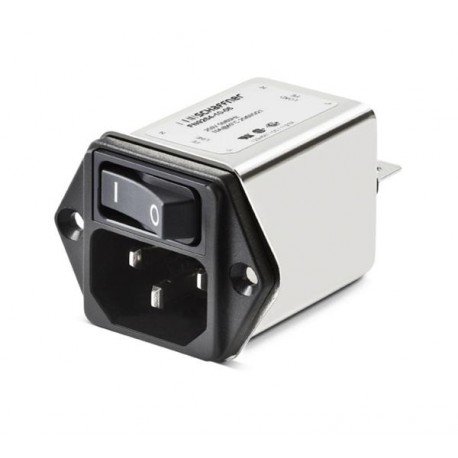

IEC Inlet Filter with Dual Pole Switch 250VAC; 2A; <5uA; Faston

IEC Inlet Filter with Dual Pole Switch 250VAC; 2A; <5uA; Fastonzoom

Attributes

Key Value
Accomodates a FuseNo
Approval AgencyCQC, CSA, ENEC, UL
Base Product NumberFN9264
CategoryConnectors, Interconnec.
Connector StyleIEC 320-C14
Connector TypeReceptacle, Male Blades.
Current Rating2 A
Current Rating - Applia.-
Current Rating - Circui.-
Current Rating - Filter2A
Cx Capacitance0.1 ?F
Cy Capacitance2.2 nF
Features-
Filter TypeFiltered (EMI, RFI) - C.
Fuse Holder, Drawer-
GenderMale
Inductance2.7 mH
Ingress ProtectionIP40
Leakage Current2 ?A
Material Flammability R.UL94 V-2
MfrSchaffner EMC Inc.
Mounting TypePanel Mount ; Snap-In, .
Number of Poles2
Number of Positions3
Operating Temperature-25 to 85 ?C
PackageBulk
Panel Cut Out33 L x 29.5 W mm
Panel Cutout DimensionsRectangular - 29.00mm x.
Panel Thickness-
Product StatusActive
Protection2 (Switch)
SeriesFN 9264, FN 9264 Series
Switch FeaturesSwitch On-Off
TerminationQuick Connect - 0.250" .
TypeFilter ; Switch
VersionMedical
Voltage Rating250 V
Voltage Rating - Applia.-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comFN9264B-2-0611.181In StockSchaffner Emc11.18 @ 1
thumbzoomNewark83T390715.6960In StockSCHAFFNER15.69 @ 60
us.rs-online.com7025415417.760In StockSchaffner17.7 @ 60
Digi-Key287507018.81In StockSchaffner EMC Inc.18.8 @ 1
