Schneider Electric 9001K2L1R20H13

B00CONFCFE

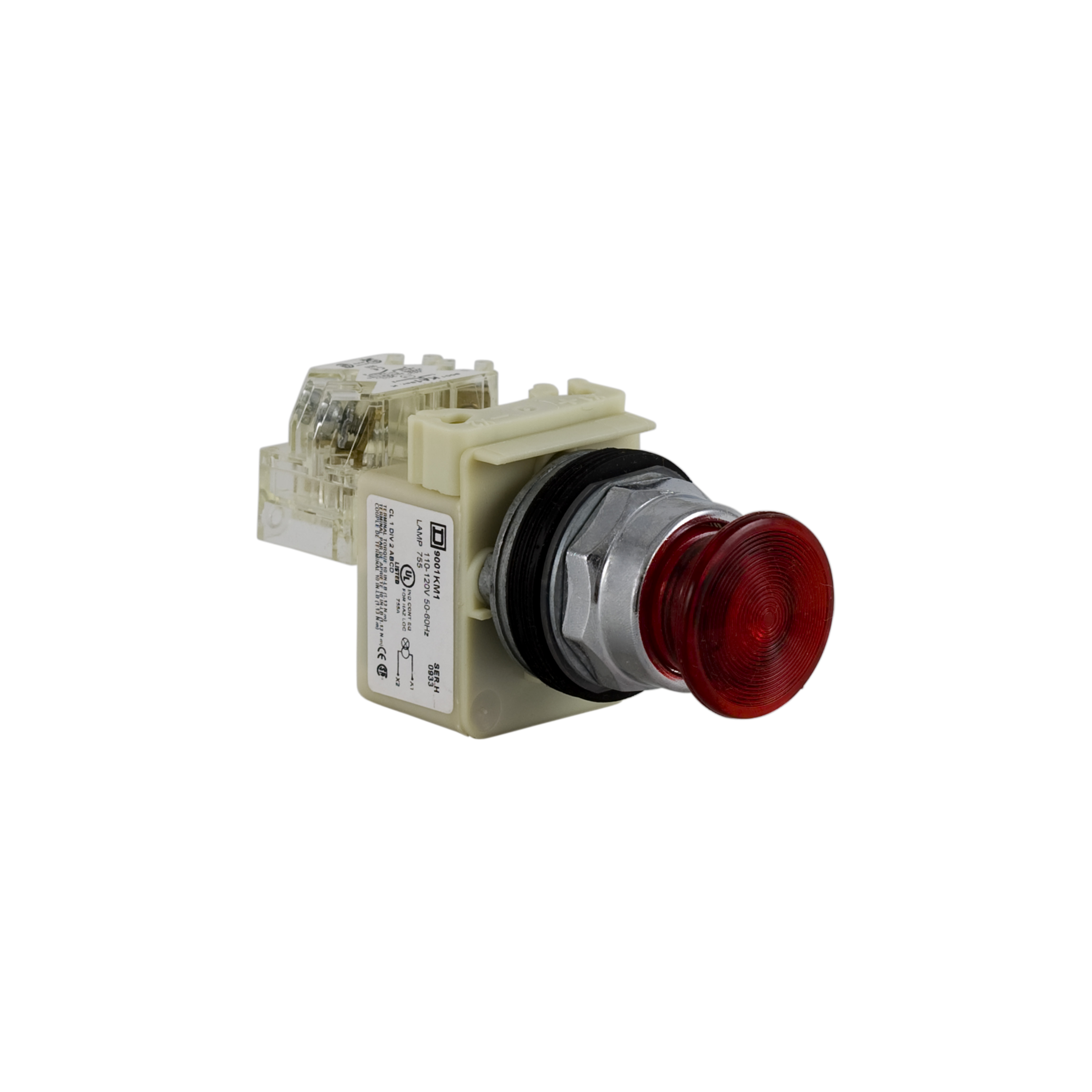

SCHNEIDER ELECTRIC 9001K2L1R20H13 Push Button 600-Vac 10-Amp 30Mm T-K Electrical Box

SCHNEIDER ELECTRIC 9001K2L1R20H13 Push Button 600-Vac 10-Amp 30Mm T-K Electrical Boxzoom

Attributes

Key Value
[Ie] Rated Operational .10 A, AC-15 || 10 A, DC.
[Us] Rated Supply Volta.110...120 V AC
Actionstandard, Maintained / .
ActuationMomentary
ActuatorRed projecting; spring .
Actuator TypeSquare
Amperage Rating10A
Basic MaterialMetal
BezelChrome Plated Zinc Die .
Bezel MaterialMetal
Bezel/HousingPolished Chrome Metal
BrandSquare D by Schneider E.
Bulb BaseBA 9s
California Proposition .Lead and lead compounds.
Catalog Number9001K2L1R20H13
China Rohs RegulationX
ColorRed
Connectionscrew clamp terminals
Connection Typescrew clamp terminals
Connections - Terminalsscrew clamp terminals
Contact Configuration1 C/O, 1CO
Contact Form1NO, 1NC, 1NO/1NC, 1 NC.
Contact Operation1 C/O, standard
Contact Rating10A @ 600V AC, AC15 - D.
Contact typeSlow Break
Contact Type1NO/1NC
Contacts Type And Compo.1 C/O
Country of OriginMX - Mexico, Mexico
Country of Origin (subj.Mexico
Current Rating10 A
Device Presentationcomplete product
Device Short NameK
Diameter30 mm
ECCNEAR99
EnclosureNEMA 1/2/3/3R/4/6/12/13
Enclosure TypeNEMA 1/2/3/3R/4/6/12/13.
Environmental Conditions-13 to 158 deg F Operat.
Environmental DisclosureENVPEP121006EN
Eu Rohs DirectivePro-active compliance (.
Head MaterialPlastic
IlluminationRed LED, Illuminated
Illumination ColorRed
IndicatorBA 9s
IP RatingIP65, 66
ItemIlluminated Push Button
Item Typeilluminated push-button
Knob Stylered projecting
Lamp Module TypeTransformer
Lamp Module Voltage120V AC
Lamp Typeincandescent, BA9S Inca.
Lamp Voltage6V AC
Light Block Supplyvia integral transformer
Light Sourceincandescent bulb, inca.
Made in USANo
ManufacturerSchneider Electric
MaterialMetal
Mercury FreeYes
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 mm mm, 30 mm
Mounting typePanel
Mounting TypePanel Mount
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 1/2/3/3R/4/6/12/13
NEMA Rating1, 12, 13, 2, 3, 3R, 4,.
Number of Operators1
Operating Positionany position
OperationMomentary
Operator Additional Inf.screw-on plastic
Operator Profilered projecting
Operator Typespring return
Product CertificationsUL listed file E42259 C.
Product Or Component Ty.illuminated push-button
Product TypeIlluminated Push Button
Range Of ProductHarmony 9001K
Rated Voltage110...120 V
Reach RegulationReference contains Subs.
Replacement LampMfr. No. 755
Rohs Exemption Informat.Yes
Series9001K, Harmony 9001K Se.
Size30, 30 mm, 1.18
Special FeaturesIlluminated, WITHOUT GU.
StandardUL LISTED FILE E42259 C.
StandardsCE, CSA, UL
Sub BrandK
Sustainable Offer StatusGreen Premium product
Terminal ConnectionPressure Plate
Terminal TypeScrew/Clamp
TerminationScrew
TypeType K Dusttight/Oiltig.
Type Of Operatorspring return
Type of Operator34mm dia Mushroom Head
UNSPSC39122216
UPC785901027911
UPC Code785901027911
Voltage110 to 120V
Voltage Rating110...120 V;110...120 V.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6617886169.01In Stock70Schneider Electric0.59169.0 @ 1
thumbzoommostelectric.com9001K2L1R20H13215.78116SQUARE D/TELEMECANIQUE215.78 @ 1
industrialautomationparts.comAE-008974215.951In StockSchneider Electric215.95 @ 1
thumbzoommayerelectric.comSQD9001K2L1R20H13221.521In StockSQUARE D221.52 @ 1
us.rs-online.com70060273222.191In StockSquare D222.19 @ 1
thumbzoomstandardelectricsupply.com2256574226.971In StockSquare D (Schneider Electric)226.97 @ 1
thumbzoomsustainablesupply.comC1197396234.651In StockSchneider Electric0.59234.65 @ 1
Newark17B148245.481In StockSCHNEIDER ELECTRIC245.48 @ 1
Graybar95027529258.441In StockSquare D (Schneider Electric)258.44 @ 1
thumbzoomcrescentelectric.com185728359.911In StockSquare D by Schneider Electric359.91 @ 1
thumbzoomRaptor SuppliesAG6QPK382.5135991In StockSCHNEIDER ELECTRIC382.513599 @ 1
