SIEMENS B235

B005XH6L2G

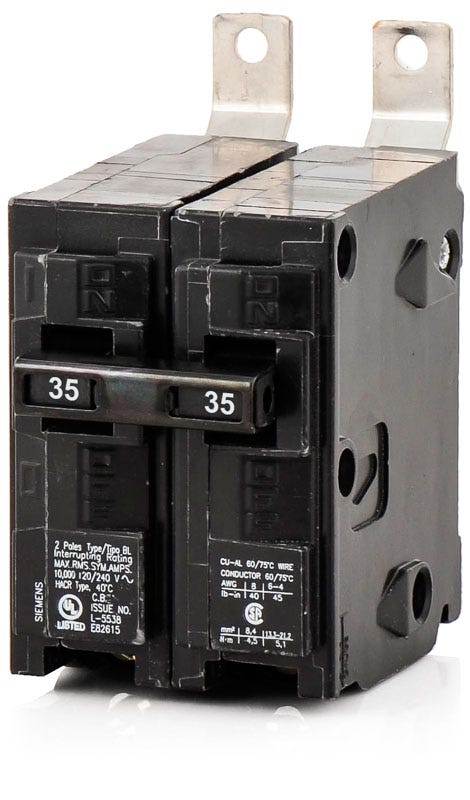

Siemens B235 35-Amp Double Pole 120/240-Volt 10KAIC Bolt in Breaker, Color

Siemens B235 35-Amp Double Pole 120/240-Volt 10KAIC Bolt in Breaker, Colorzoom

Attributes

Key Value
(2P) Double PolePole
1Width (in)
120/240VACVoltage (V)
2.5Length (in)
3.75Height (in)
35 AmpAmperage
35AAmp Rating
AC Voltage Rating120/240V AC
Amperage35A
Amps35 A
ApprovalUL Listed
AWG 8 | 6-4Wire Gauge
B235Stock Code
BOLT-ONBreaker Style
BrandSiemens
Catalog NumberB235
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeStandard
Continuous current / ra.35 A
Country of OriginMX, Mexico
CSA, UL ListedUL Listed
DC Voltage RatingNot Rated
Depth4 in
Design of the overload .THERMAL-MAGNETIC
Design of the product:BL
DisplayB235 BREAKER 35A 2P 120.
Estimated Weight1.00
For additional options .Notes
For Use WithSiemens P1 Panelboards
Frame Size125A/BL
GTIN00783643263567
Gtin783643263567
Height2 in
Height [in]:3.5625 in
ItemMiniature Circuit Break.
Length2 in
Length (Straight Wirewa.2.0 in
Made in USANo
ManufacturerSiemens Industry, Inc.,.
Max. AIR Rating10kA at 120/240V AC
Max. Wire Size6 AWG
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
MountingBolt On
Mounting TypeBolt-On
MpnB235
Number of Poles2
Number Of Poles:2
Part NumberB235
Phase1, Single
Poles2
SeriesBL
SiemensBrand
Size of the circuit-bre.BL(125A)
StandardULLISTED/CSA/NOMCERTIFI.
Standard:ULLISTED/CSA/NOMCERTIFI.
StandardsCSA, HACR, UL
Suitability for operati.ELECTRICALDISTRIBUTION
Supply voltage frequenc.TRUE
Terminal ConnectionLug
Type/Tipo BL BreakerFamily
UNSPSC39121601
UPC783643263567
Upc783643263567
Voltage120/240VAC
Voltage / between phase.120 V
Voltage / between phase.240 V
Width3 in
Width [in]:2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com9317929.271In StockSiemens29.27 @ 1
simplybreakers.comB23535.991In StockSiemens \/ ITE35.99 @ 1
thumbzoomsuperbreakers.comB23539.91In StockSiemens39.9 @ 1
thumbzoomAllfusesB23540.341322Siemens40.34 @ 1
AmazonTPB005XH6L2G43.071In StockSiemens -HI43.07 @ 1
thumbzoomsuppliesdepot.comB23547.951In StockSIEMENS47.95 @ 1
Dale-ElectricB23562.261In StockSiemens Industry, Inc.62.26 @ 1
standardelectricsupply.com221352865.211In StockSiemens65.21 @ 1
kirbyrisk.com55987482.2814Siemens82.28 @ 1
thumbzoomZoroG143555191.25115Siemens0.6791.25 @ 1
thumbzoombulbspro.comB23591.691In StockSiemens91.69 @ 1
thumbzoomindustrialzone.comB23593.413In StockSiemens0.6493.41 @ 3
thumbzoomsustainablesupply.comC1210334118.771In StockSiemens0.67118.77 @ 1
Grainger6EVJ9135.5190SIEMENS135.5 @ 1
thumbzoommotorsandcontrol.comB235137.131In StockSiemens1.0137.13 @ 1
thumbzoomcrescentelectric.com113689185.81In StockSiemens185.8 @ 1
thumbzoomturtle.comITE B235188.941In StockSiemens188.94 @ 1
