SIEMENS B315

B00A2BJXNW

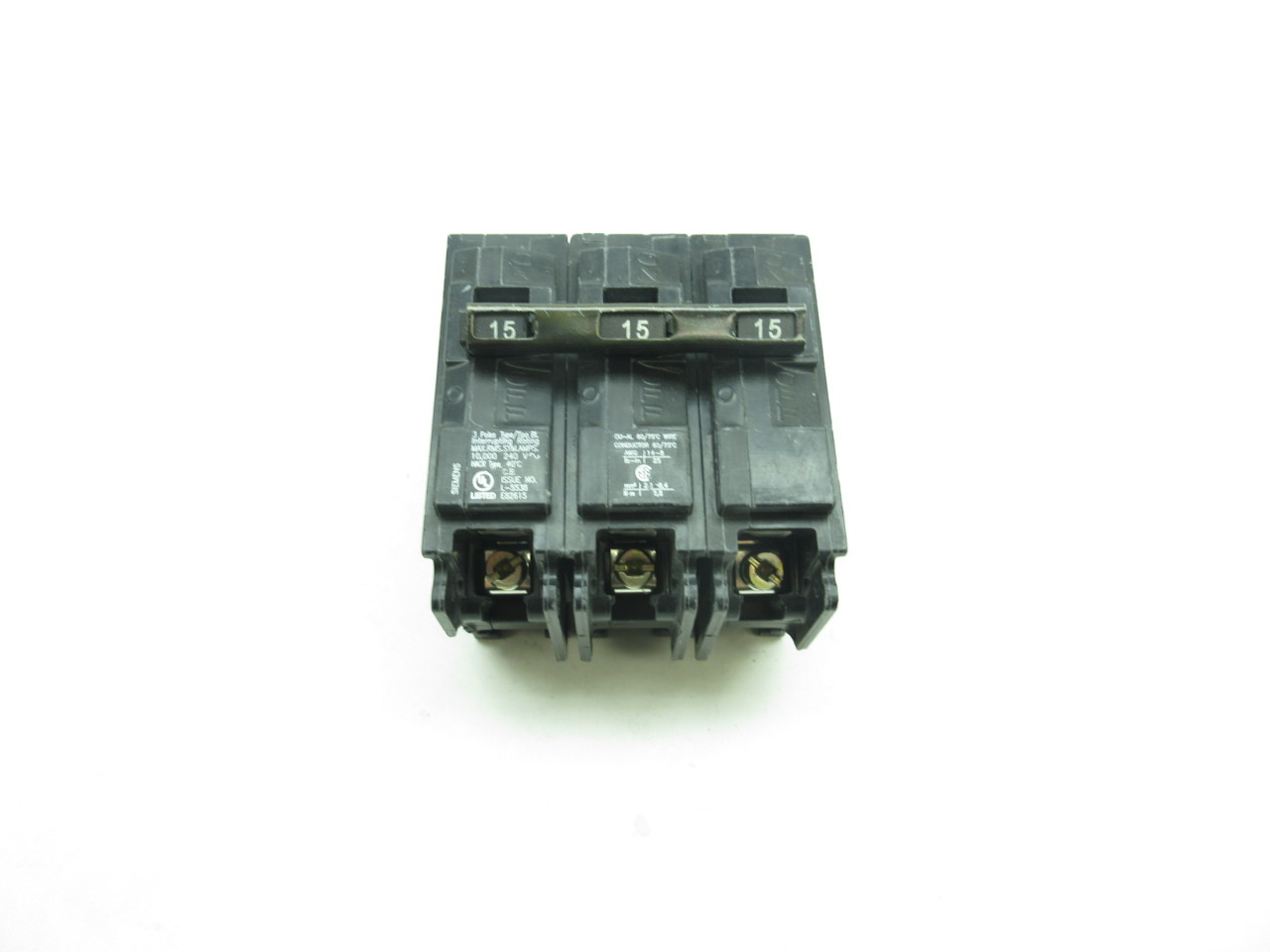

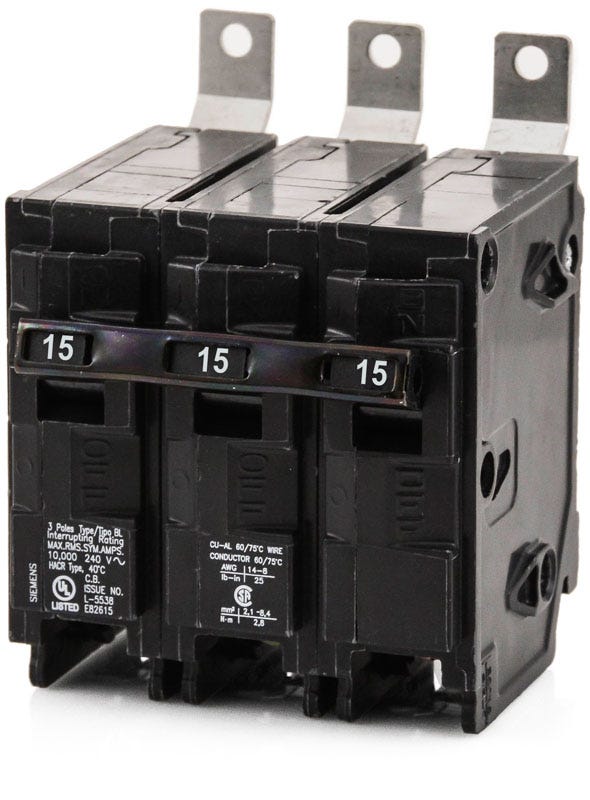

B315 Type BL Breaker by SIEMENS

B315 Type BL Breaker by SIEMENSzoom

Attributes

Key Value
AC Voltage Rating240V AC
AccessoriesB315-R
Amperage15A
Amps15 A
BrandSiemens
Catalog NumberB315
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeStandard
Contactor TypeMagnetic
Continuous current / ra.15 A
Country of OriginMX, Mexico
DC Voltage RatingNot Rated
Depth4 in
Depth [in]:3 in
Design of the overload .THERMAL-MAGNETIC
Design of the product:BL
DisplayB315 BREAKER 15A 3P 240.
For Use WithSiemens P1 Panelboards
Frame Size125A/BL
GTIN00783643263680
Gtin783643263680
Height3 in
Height [in]:3.5625 in
ItemMiniature Circuit Break.
Length3 in
Length (Straight Wirewa.3.0 in
Made in USANo
ManufacturerSiemens Industry, Inc.,.
Max. AIR Rating10kA at 240V AC
Max. Wire Size10 AWG
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
MountingBolt On
Mounting TypeBolt-On
MpnB315
Number of Poles3
Number Of Poles:3
PhaseThree
SeriesBL
Size of the circuit-bre.BL(125A)
StandardULLISTED/CSA/NOMCERTIFI.
Standard:ULLISTED/CSA/NOMCERTIFI.
StandardsHACR Rated, UL Listed
Suitability for operati.ELECTRICALDISTRIBUTION
Supply voltage frequenc.TRUE
Terminal ConnectionLug
UNSPSC39121601
UPC783643263680
Upc783643263680
Voltage240VAC
Voltage / between phase.240 V
Width3 in
Width [in]:3 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD59837141.951In StockSIEMENS41.95 @ 1
AmazonTPB007IB8BZU61.521In Stock2Siemens61.52 @ 1
thumbzoomsuperbreakers.comB31579.951In StockSiemens79.95 @ 1
simplybreakers.comB31579.991In StockSiemens \/ ITE79.99 @ 1
thumbzoomAllfusesB31592.241574Siemens92.24 @ 1
thumbzoomsuppliesdepot.comB31598.951In StockSIEMENS98.95 @ 1
steinerelectric.com27770107.61In StockSiemens107.6 @ 1
thumbzoomKelly HayesB315117.391In StockSiemens117.39 @ 1
Dale-ElectricB315196.814Siemens Industry, Inc.196.8 @ 1
standardelectricsupply.com19671213.091In StockSiemens213.09 @ 1
kirbyrisk.com559882255.715Siemens255.7 @ 1
thumbzoomindustrialzone.comB315293.561In StockSiemens0.95293.56 @ 1
thumbzoomZoroG0612437383.991In StockSiemens0.9383.99 @ 1
thumbzoomsustainablesupply.comC1192578393.181In StockSiemens0.9393.18 @ 1
thumbzoomcrescentelectric.com16318608.231In StockSiemens608.23 @ 1
