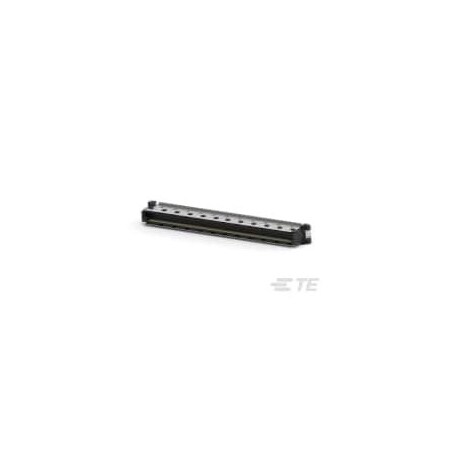

TE Connectivity 3-1939756-6

B00KSPWA96

TE Connectivity Part Number 3-1939756-6

TE Connectivity Part Number 3-1939756-6zoom

Attributes

Key Value
ApplicationSignal
Assembly Process FeatureNone
Board-to-Board Configur.Mezzanine
Centerline (Pitch).5?mm?[?.0197?in?]
Circuit ApplicationSignal
Connection MaterialCopper Alloy
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector SystemBoard-to-Board
Connector Terminates ToPrinted Circuit Board
Connector TypePlug, Outer Shroud Cont.
Contact Base MaterialCopper Alloy
Contact Current Rating ..5
Contact FinishGold Plated, Gold
Contact Finish Thickness30.0?in (0.76?m)
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?29.9212??in?]
Contact Plating Thickne.29.9212 ?in
Contact ShapeSquare
Contact TypePin
Current Rating0.5 A
FeaturesWith Boss, Board Guide,.
Flammability RatingUL 94 V-0
For Use WithReceptacle Assembly
Ground Component TypeGrounding Contact, Grou.
Height Above Board0.293" (7.45mm)
Hole Center to Center0.5 mm
Housing ColorBlack
Housing MaterialHigh Temperature Thermo.
ItemPCB Mount Header
Mated Stacking Heights8mm
MaterialHigh Temperature Thermo.
Mating AlignmentWith
Mating Alignment TypePolarization
Max. Temp.85?C
Max. Voltage50V AC
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount
Number of Contacts220
Number of Positions220
Number of Rows2
Operating Temperature R.-40 ? 85??C?[?-40 ? 185.
Package Quantity1
Packaging MethodHard Tray
Packaging Quantity30
Part StatusActive
PCB Connector Assembly .PCB Mount Header
PCB Contact Termination.Tin
PCB Mount AlignmentWith
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeSolder Peg
PCB Thickness (Recommen..76
Pitch0.020" (0.50mm)
SeriesFree Height
Stack Height8, 12, .472
StackableYes
Terminal FinishTin Plated
Terminal TypeSurface Mount
Termination Method to P.Surface Mount
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark99X104724.991680In StockAMP - TE CONNECTIVITY24.99 @ 1680
Verical3-1939756-630.492111TE Connectivity30.49 @ 2
WaldomTE CONNECTIVITY AMP BRAND 3-1939756-634.32262TE CONNECTIVITY/AMP BRAND34.3 @ 2
Mouser571-3-1939756-641.36196TE Connectivity41.36 @ 1
TE Connectivity3-1939756-643.91261In StockTE Connectivity (TE)43.9126 @ 1
Digi-Key534742880.6281In Stockte-connectivity-amp-connectors80.628 @ 1
thumbzoomZoroG501042896104.71In StockTe Connectivity104.7 @ 1
AmazonSCB07KWJ5GW5116.141In StockTE Connectivity / AMP116.14 @ 1
