TE Connectivity 5-2041390-1

mpn5-2041390-1
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

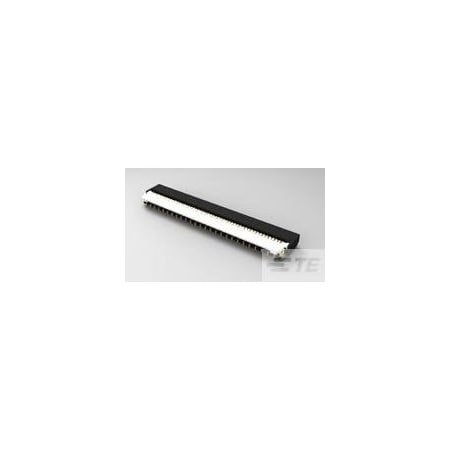

TE Connectivity Part Number 5-2041390-1

TE Connectivity Part Number 5-2041390-1

zoom

Brand: TE Connectivity
PartNumber: 5-2041390-1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Actuator Color	Natural
Actuator Material	Liquid Crystal Polymer .
Cable End Type	Tapered
Category	Connectors, Interconnec.
Color	Black
Connection Material	Phosphor Bronze
Connector Type	Receptacle
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold Plated; Gold over .
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.025 ?m
Contact Type	Socket
Current Rating	0.2 A
Current Rating (Amps)	0.2A
Features	Zero Insertion Force (Z.
FFC, FCB Thickness	0.20mm
Flat Flex Type	FFC, FPC
For Use With	Flexible Printed Circui.
Height	0.039 in
Height Above Board	0.039" (1.00mm)
Hole Center to Center	0.3 mm
Housing Color	Black
Housing Material	Liquid Crystal Polymer .
Item	Connector
Length	16.8 mm
Locking Feature	Flip Lock
Material	Liquid Crystal Polymer
Material Flammability R.	UL94 V-0
Mating Cycles	-
Max. Temp.	85?C
Max. Voltage	30V AC/DC
Mfr	TE Connectivity AMP Con.
Mounting Type	Surface Mount, Right An.
Number of Contacts	51
Number of Positions	51
Number of Rows	1
Operating Temperature	-55?C ~ 85?C
Package	Tape & Reel (TR)
Package Quantity	1
Part Status	Obsolete
Pitch	0.012" (0.30mm)
Series	-, FPC
Terminal Finish	Gold Plated
Terminal Type	Surface Mount
Termination	Solder
Voltage Rating	30V
Width	0.138 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY AMP BRAND 5-2041390-1	0.41	150	34353		TE CONNECTIVITY/AMP BRAND		0.41 @ 150
	Onlinecomponents.com	5-2041390-1	1.64	1	34410		TE Connectivity / AMP Brand		1.64 @ 25
	Newark	36AC5527	1.74	1	34353		AMP - TE CONNECTIVITY		1.74 @ 25
	Verical	5-2041390-1	1.97	17	13741		TE Connectivity / AMP		1.97 @ 25
	Zoro	G301043130	83.65	1	25		Te Connectivity		83.65 @ 25
