Texas Instruments DS3486M/NOPB

mpnDS3486M/NOPB
brandname: Texas Instruments
manufacturername: Texas Instruments

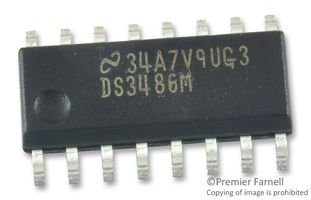

TEXAS INSTRUMENTS DS3486M/NOPB RS422/485 Line Receiver (1 piece)

TEXAS INSTRUMENTS DS3486M/NOPB RS422/485 Line Receiver (1 piece)

zoom

Brand: Texas Instruments
PartNumber: DS3486M/NOPB
PackageQuantity: 1
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Base Part Number	DS3486
Base Product Number	DS3486
Brand	Texas Instruments
Category	Integrated Circuits (IC.
Data Rate	-
Description	IC RECEIVER 0/4 16SOIC
Detailed Description	0/4 Receiver RS422, RS4.
Digi-Key Part Number	DS3486M/NOPB-ND
Dimensions	9.91 x 3.91 x 1.45mm
Duplex	-
Height	1.45mm
Interface Standards	RS-422/ RS-423
Lead Free Status / RoHS.	RoHS Compliant
Length	9.91mm
Manufacturer	Texas Instruments
Manufacturer Part Number	DS3486M/NOPB
Manufacturer Product Nu.	DS3486M/NOPB
Manufacturer Standard L.	6 Weeks
Maximum Operating Tempe.	+70 ?C
Mfr	Texas Instruments
Minimum Operating Tempe.	0 ?C
Mounting Type	Surface Mount
Number of Drivers/Recei.	0/4
Number of Receivers	4
Number of Receivers per.	10
Operating Temperature	0, 0?C ~ 70?C
Package	Tube
Package / Case	16-SOIC (0.154", 3.90mm.
Package Type	SOIC
Packaging	Tube
Pin Count	16
Power Supply Type	Single
Product Status	Active
Protocol	RS422, RS423
Receiver Hysteresis	140 mV, 140mV
Receiver Signal Type	Receiver Signal Type
Series	-
Standard Package	48
Stock	Stock
Supplier Device Package	16-SOIC
Type	Receiver
Typical Single Supply V.	5 V
Voltage - Supply	4.75V ~ 5.25V
Width	3.91mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	iodParts	DS3486M/NOPB	0.52	500	2544		Texas Instruments		0.52 @ 500
	Hotenda	H2460892	1.48	1	67		Texas Instruments		1.48 @ 1
	TME	DS3486M/NOPB	1.62	1	9		TEXAS INSTRUMENTS		1.62 @ 1
	RS Delivers	536-1209	1.968	1	60		Texas Instruments		1.968 @ 1
	Newark	26AJ5758	2.38	1	42		TEXAS INSTRUMENTS		2.38 @ 1
	Digi-Key	212131	13.64	1	60		Texas Instruments		13.64 @ 1
